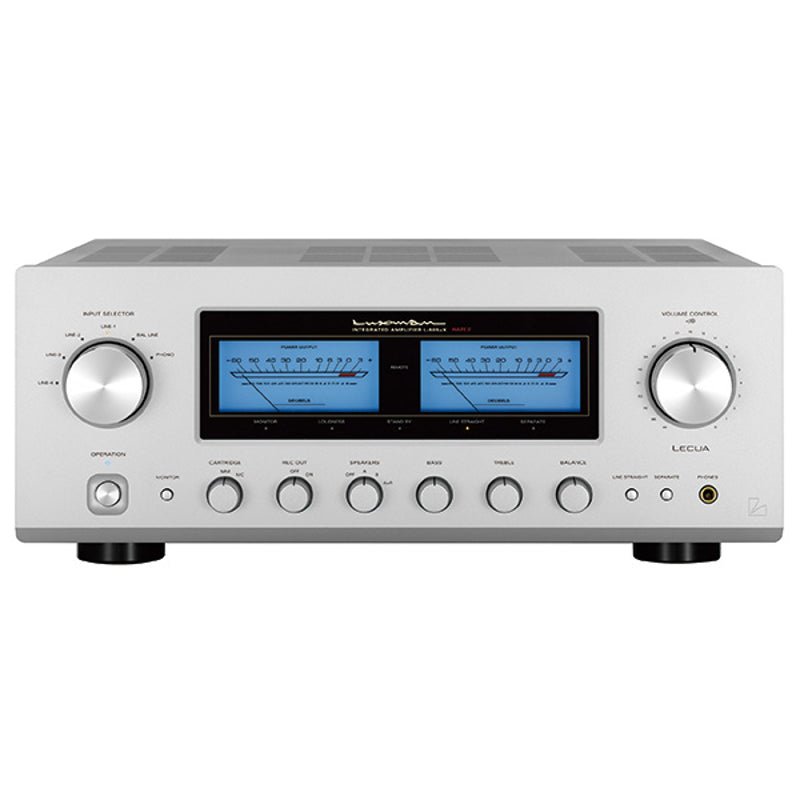

Luxman 505uXII Integrated Amplifier

Luxman Logo

Models Available For Demo: PD-191A, D-10X, M-10X, D-380, MQ-88uC, and L-507Z

The Luxman L-505uXII Integrated Amplifier, a Mark II version of the esteemed L-505uX, represents the pinnacle of pre-amplifier design.
$5,295.00
$5,295.00

Ships Directly From Manufacturer

Or Click Here for Additional Financing Options

As an authorized dealer of Luxman, we offer unique drop shipping services from the manufacturer directly to your doorstep. Given the premium nature of Luxman products, we understand you might have questions or concerns about this personalized delivery process. We encourage you to connect with us for any questions or clarifications before proceeding with your purchase.

Luxman L-505uXII: Perfection in Sound

The Luxman L-505uXII Integrated Amplifier, a Mark II version of the esteemed L-505uX, represents the pinnacle of pre-amplifier design. With proprietary technologies such as the Version 4.0 ODNF and LECUA, this integrated amplifier is a testament to Luxman's pursuit of audio perfection, offering a sophisticated and authentic listening experience.

ODNF Version 4.0 - Advanced Feedback Circuit

Luxman's original ODNF amplification feedback circuit is a key feature of the L-505uXII. It ensures a high-speed primary slew rate, ultra-wide bandwidth, and minimal distortion by feeding back only the distorted components of the audio. This Version 4.0 ODNF circuit significantly enhances distortion detection and enables accurate reproduction of even the most delicate audio signals.

LECUA - Precision Volume Control

The heart of the L-505uXII's pre-amplifier section is the LECUA (Luxman Electronically Controlled Ultimate Attenuator). This computerized attenuator allows smooth, fine volume adjustment over 88 steps, minimizing signal deterioration and ensuring precise sound level control.

Discrete Buffer Circuit for Enhanced Clarity

The L-505uXII incorporates a discrete buffer circuit in its pre-amp output stage, similar to those found in Luxman's high-end separate amplifiers. This circuit significantly increases driving force to the power amplifier stage, thereby enhancing clarity and dynamism in audio reproduction.

Stable Power Supply for Consistent Performance

A stable power supply is critical for optimal amplifier performance. The L-505uXII utilizes an EI core type power transformer and four large capacity 10,000μF blocking capacitors to ensure a constant and stable current supply.

Technical Specifications

Specification Detail
Rated Output 100W + 100W (8Ω), 150W + 150W (4Ω)

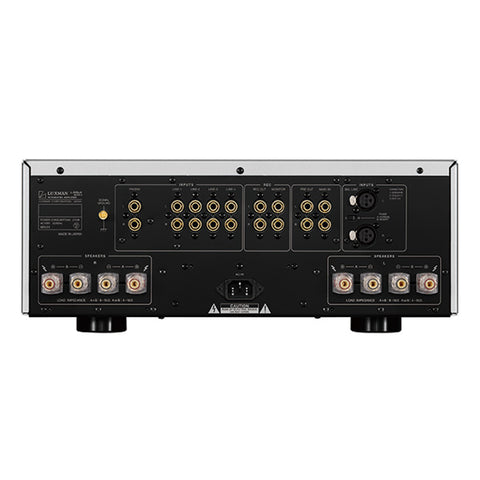

Input Sensitivity/Impedance PHONO (MM/MC), LINE, BAL.LINE, MAIN-IN
Frequency Response PHONO: 20Hz to 20kHz, LINE: 20Hz to 100kHz
Total Harmonic Distortion 0.009% or less (8Ω, 1kHz)
S/N Ratio (IHF-A) PHONO (MM): 91dB, PHONO (MC): 75dB, LINE: 104dB
Damping Factor 210
Power Consumption 270W, 85W (under no signal), 0.4W (at standby)
Dimensions 440(W) x 178(H) x 454(D) mm
Weight 22.5kg (main unit)

For more detailed information, please visit the official Luxman L-505uXII Product Page.
