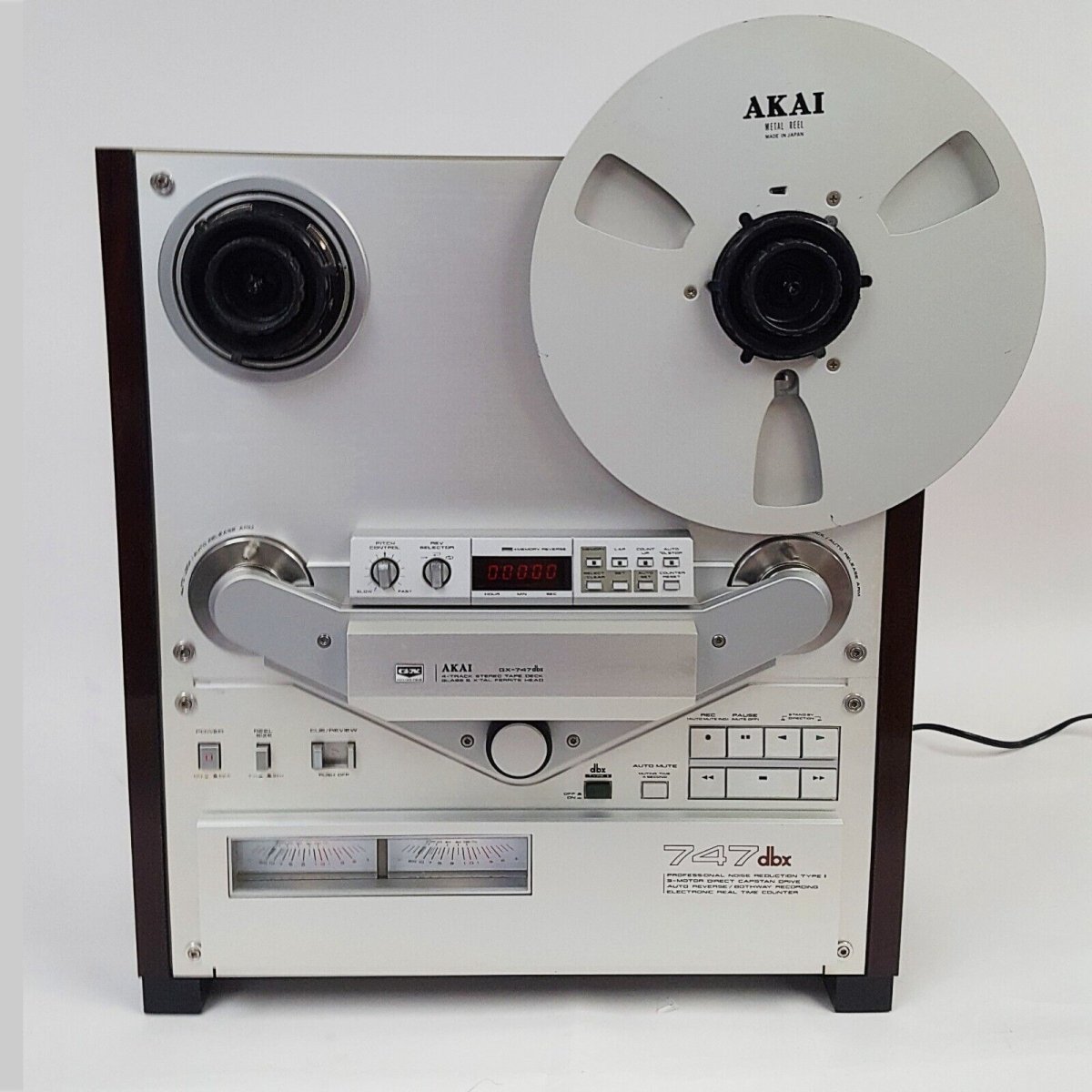

Akai GX-747 DBX -4-Track Stereo Tape Deck

Akai GX-747 DBX - 4-Track Stereo Tape Deck (SILVER) - A Vintage Classic at Audio Exchange

Pre-Owned Excellence: Akai GX-747 DBX Tape Deck

Condition

This Akai GX-747 DBX, a pre-owned treasure, shows signs of careful use with minimal cosmetic wear. It's fully operational, functioning as intended, and has been a cherished item, either as a floor model or a store return. The unit is exceptionally clean, with the rosewood side panels showing virtually no wear. The front silver face is pristine, free from scratches or discoloration, and all text remains crisp and clear. The body and sides are immaculate, with no dents or chips, and the feet and AC cord are in excellent condition. The unit includes the original Akai take-up reel and box. Please review the pictures for a detailed view of the condition.

Description

The Akai GX-747 DBX, released in 1982, is a testament to the enduring quality of vintage audio equipment. As the successor to the GX-747, this model features a dbx decode-encode system and classic VU meters, offering a blend of traditional aesthetics and advanced technology. The dbx type I NR significantly enhances the dynamic range, providing an audio experience that's both rich and nuanced. This model mirrors the GX-747 in many aspects, yet stands out with its unique features.

Service and Maintenance

Our in-house technicians have meticulously serviced and cleaned this unit. It has undergone thorough testing of all functions and is in full working order. The tape heads and pinch rollers have been cleaned and realigned, and all internal controls, motors, connections, and switches have been tested to ensure trouble-free operation. All light sockets are clean, and lights function correctly. Both playback and record functions have been tested with various reels and perform excellently.

Technical Specifications:

Feature	Specification
Track System	Auto reverse, 4-track, 2-channel, stereo
Heads	2 x GX record, 2 x GX playback, 2 x erase
Motor	2 x reel drive, 1 x capstan
Reel Size	Up to 10.5 inch reel
Tape Speeds	3 ¾ 7 ½ ips
Wow and Flutter	0.03% (7 ½ ips)
Frequency Response	25Hz to 33kHz (7 ½ ips)
Signal to Noise Ratio	65dB
Total Harmonic Distortion	0.4%
Input	70mV (line), 0.25mV (mic)
Output	410V (line)
Dimensions	440 x 493 x 256mm
Weight	23.2kg
Finish	Silver
Accessories	Reel hub adaptors, empty reel
Year	1982
Additional Note	DBX noise reduction
