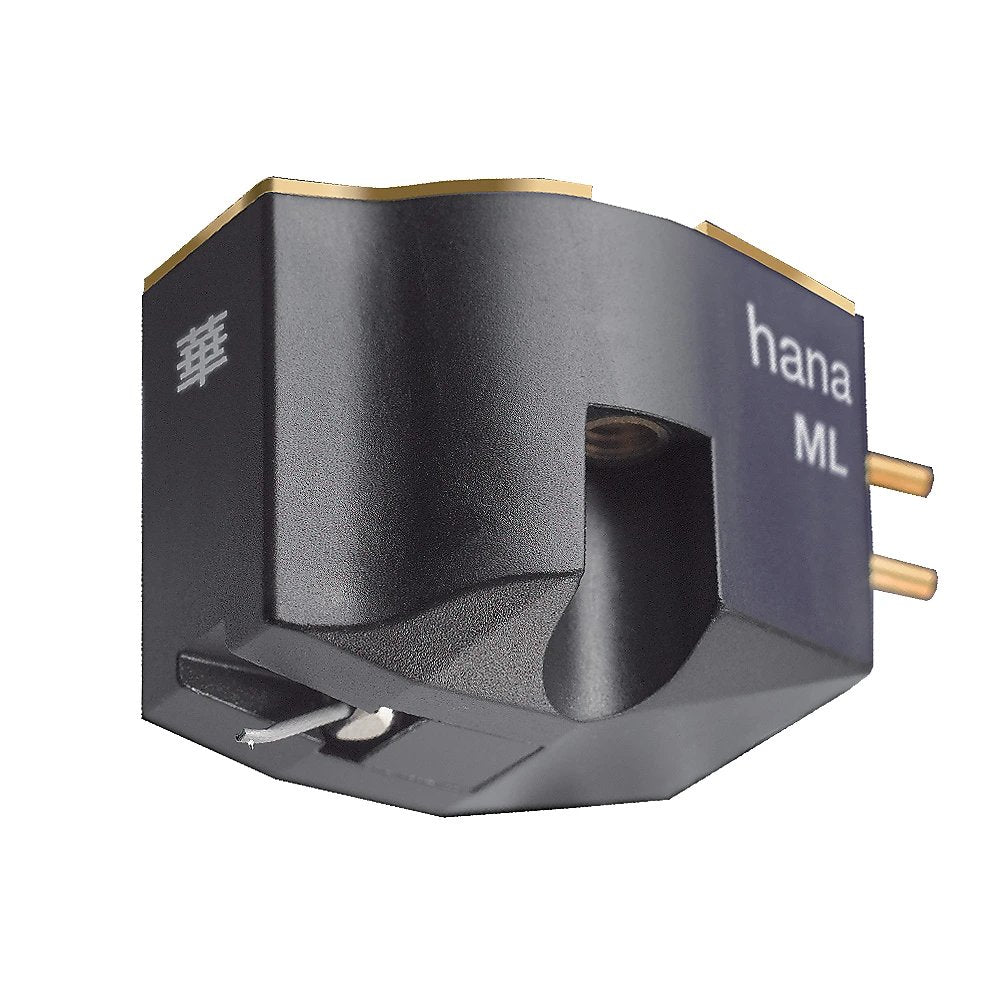

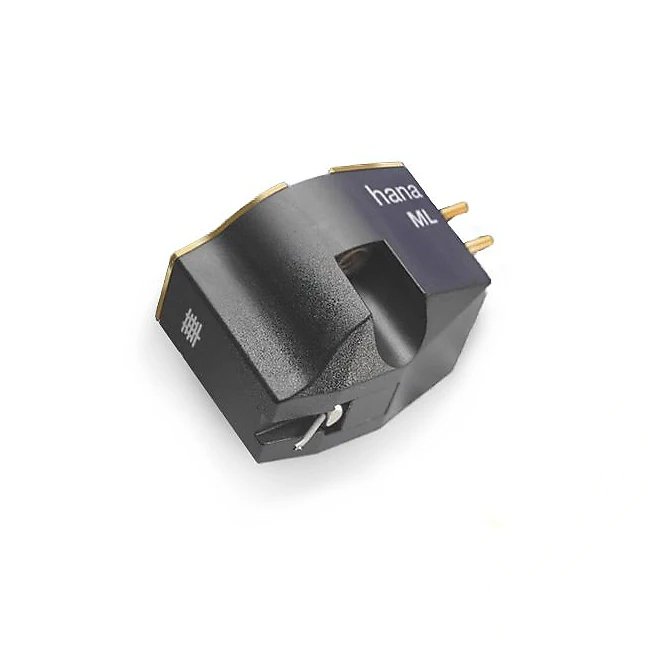

Immerse yourself in an audioscape of breathtaking clarity with the Hana ML Low-Output Moving Coil Cartridge. Building on the distinguished HANA sound that has received critical acclaim worldwide, the ML elevates your listening experience by aspiring towards perfection.
Integral to the ML's extraordinary performance is the M Series Nude Microline stylus. This advanced component reproduces the cutting stylus, fitting impeccably into the vinyl groove. The result is heightened tracking, capturing the finest musical details, improved frequency reproduction, superior stereo imaging, and resolution.
Further enhancing the ML's performance is the use of very high-purity copper wire for the cartridge's coil. Paired with a low-impedance generator, it ensures optimized performance with a wide range of phono preamps.
The cartridge body of the ML, made from Delrin©, exemplifies the use of advanced materials. This high-tech polymer provides better resonance damping, revealing more low-level information and extending the dynamic range.
Unique to the M Series is the inclusion of cryogenic processing, a technique that restructures metals at the molecular level. It refines the Alnico-based magnetic electro-motive circuit, leading to a more precise and controlled magnetic flux field. The musical sound quality that ensues is characterized by superior linearity.
The Delrin© cartridge body of the ML includes a machined brass cap. This design not only provides constrained mode layer damping but also extends compatibility due to its weightier 9.5g frame.
The ML also boasts metal threaded fittings built into the Delrin© cartridge body for effortless headshell mounting. This superior mechanical interface paves the way for enhanced bass and dynamics.
With its alluring black body adorned with a brass plate, the Hana ML is not only a feast for the ears but also for the eyes. Backed by a two-year warranty, the Hana ML is your gateway to achieving audio perfection.
Feature | Specification |
---|---|
Stylus | Microline |
Cantilever | Aluminum |
Magnetic Circuitry | Pure Iron/Cryo Treatment |
Coil Wire | High Purity Copper |
Cartridge Housing | POM (Delrin) / Brass |
Output Level | 0.4mv/1kHz |
Output Balance | <1dB/1 KHz |
Trackability | 70 µm/2g |
Channel Separation | 30dB/1kHz |
Frequency Response | 12-45,000Hz |
Impedance | 7Ω/1kHz |
Suggested Load Impedance | >100Ω |
Magnet | Alnico |
Vertical Tracking Force | 2g |
Cartridge Weight | 9.5g |
Height | 16.3mm |
Body Color | Black w/Brass Plate |
Warranty | 2 years |
