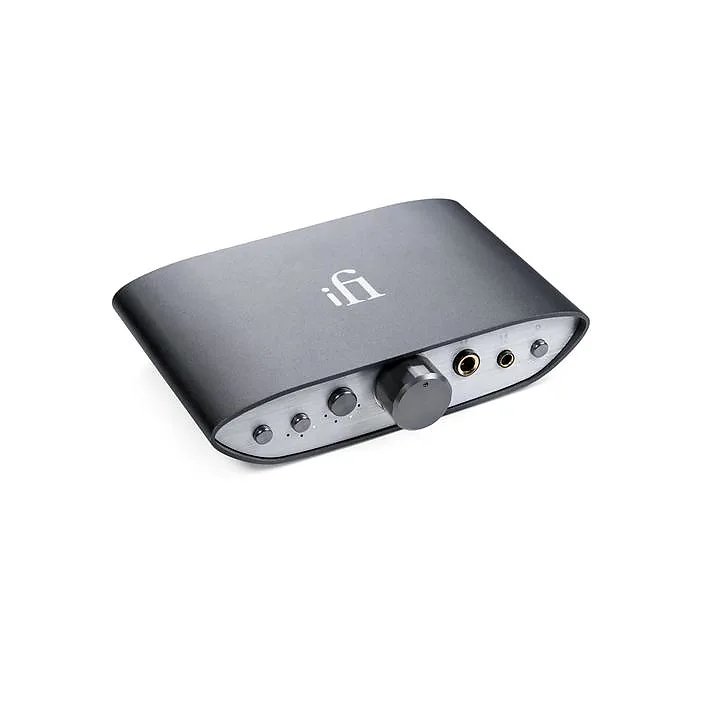

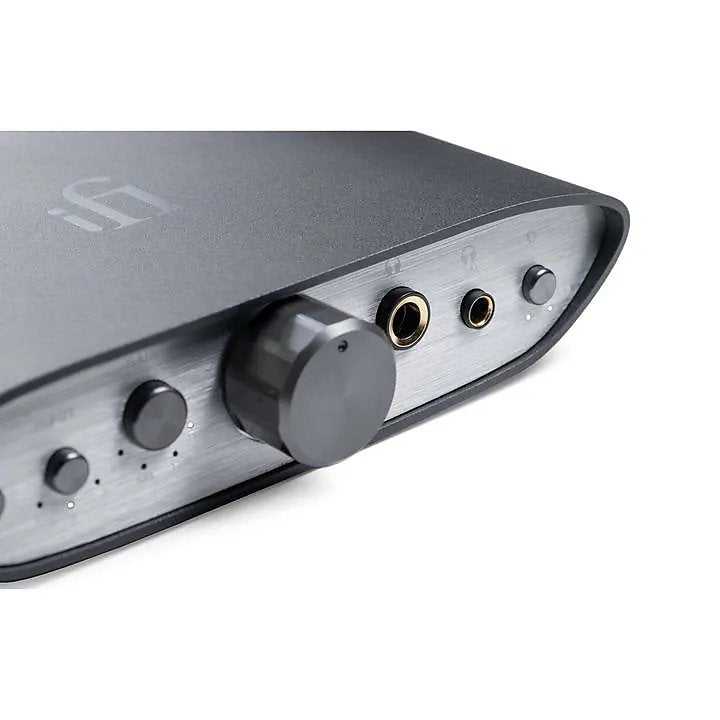

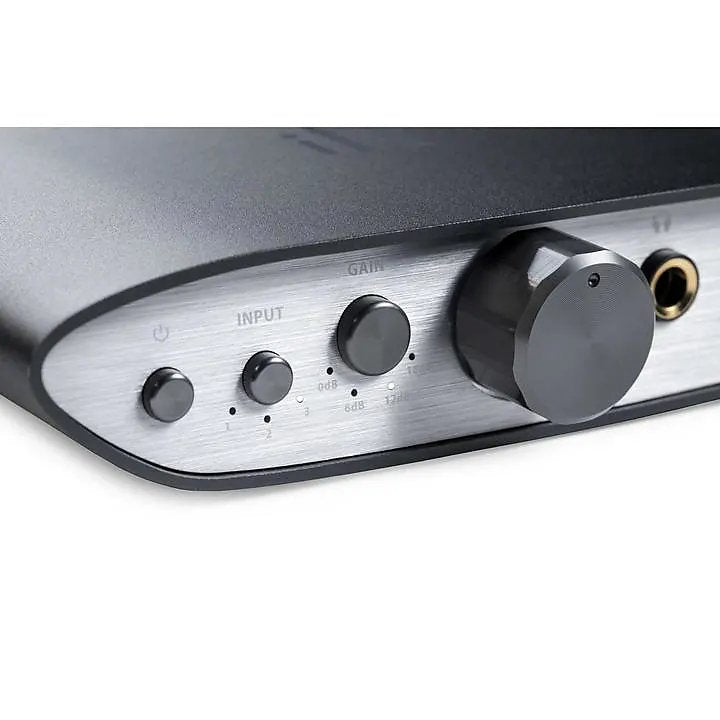

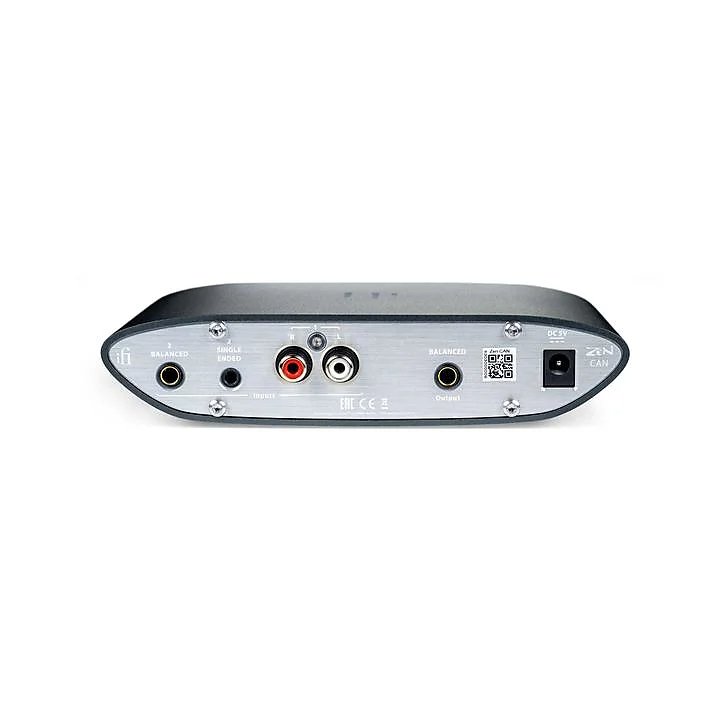

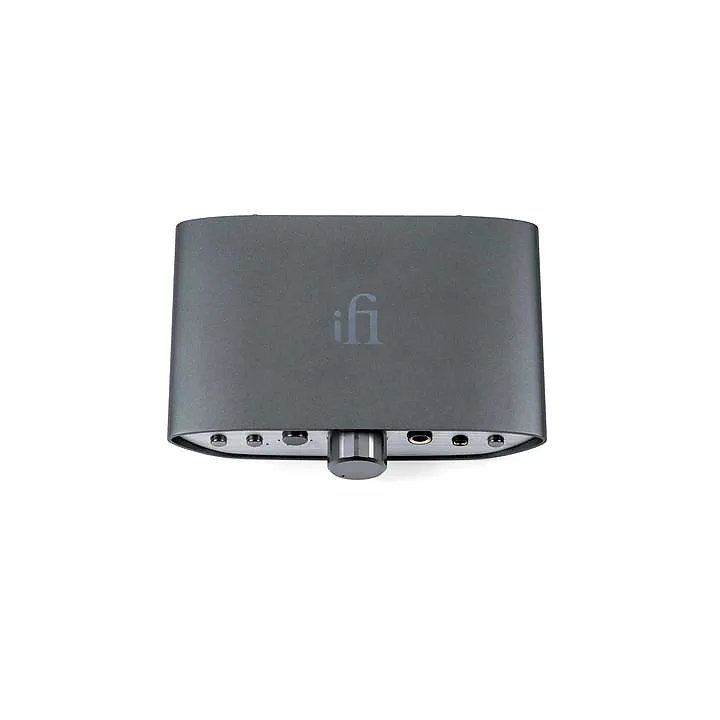

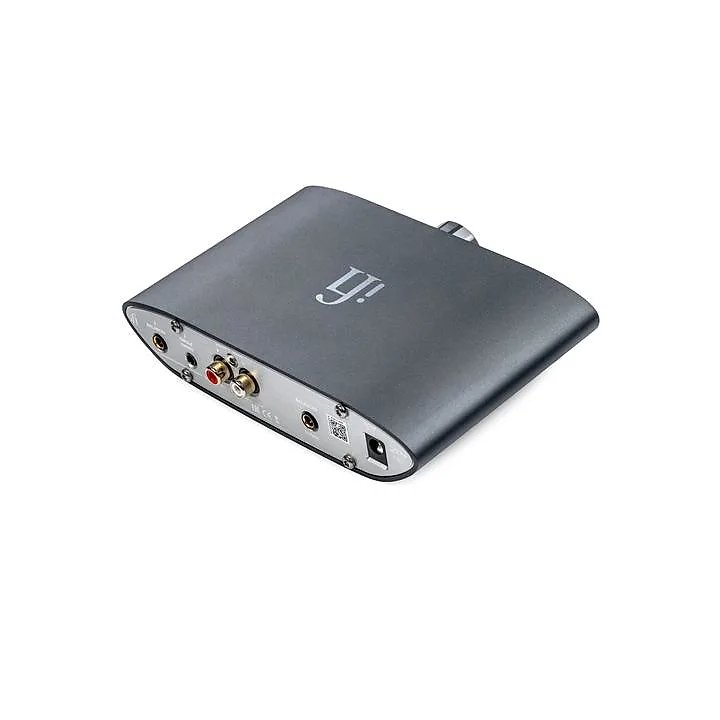

iFi Audio - Zen CAN - Balanced Headphone Amp/ Preamp

Vendor: iFi Audio
Product Type: Headphone Amp
$199.00
$199.00
Subtotal: $199.00

Free Shipping

Free Returns

Learn More.
iFi Audio - Zen CAN - Balanced Headphone Amp/ Preamp

iFi Audio - Zen CAN - Balanced Headphone Amp/ Preamp

$199.00

iFi Audio - Zen CAN - Balanced Headphone Amp/ Preamp

$199.00
The iFi ZEN CAN, a standalone solid-state headphone amp. The ZEN CAN promises to drive all of your headphones and IEMs, big and small, with both a low noise floor and enough power to drive the biggest of big boys.

Specifications

Inputs
4.4mm Pentacon BAL - 4.0V nominal @ 0dBFS, 24 kOhm Zin
RCA L/R Socket SE - 2.0V nominal @ 0dBFS, 1 MegOhm Zin
3.5mm Jack SE - 1.0V nominal @ 0dBFS, 1 MegOhm Zin

Max Output
Balanced >15.1V/385 mW (@ 600 Ohm)
                 >11.0V/1890 mW (@ 64 Ohm)

S-E >7.6V/196 mW (@ 300 Ohm)
  >7.2V/1600 mW (@ 32 Ohm)

THD & N
Balanced - < 0.0007% (4V out, 600 Ohm, 1kHz)
S-E - <0.006% (@ 100 mW/1.27V 16 Ohm)

SNR
Balanced - >120dBA (@ 15.2V)
S-E - >118dBA (@ 7.6V)

Max. Input
Balanced - 7.4V RMS
RCA - 3.8V RMS
3.5mm - 1.92V RMS

Gain - 0dB, 6dB, 12dB and 18dB

Frequency Response - 20Hz - 20kHz (+0dB / -0.03dB)

Power consumption
No Signal - ~5W
Max Signal ~13W

Input voltage
DC 5V/2.5A
AC 100 -240V
50/60Hz

Dimensions
6.2" x 4.6" x 1.4" (158 x117 x35 mm)

Net weight - 515g (1.14 Ibs)

52X MORE POWER. PUMP UP THE VOLUME.
Laptops and smartphones have a really low power output of <1.0v. On a good set of headphones, you’re always running out of juice. You never get to really hear what they can do.

Use a laptop, phone, or DAC to feed your music to the ZEN CAN and connect your headphones. Pumping out 52x more power, now you’ll hear what you have been missing.

BALANCED TO THRILL
The ZEN CAN has trickle-down Class A discrete balanced circuitry from iFi audio’s $1,699 flagship Pro iCAN. With 15.1v @300 Ohms on tap, it has serious power that will make even difficult-to-drive headphones thump to the beat.

Class A discrete output buffer from the flagship Pro iCAN using Op-Amp (OV2637A)
FET input avoids loading volume control – low distortion/noise
Low impedance feedback circuit enhances circuit performance with no resistor noise
Output amplifier gain of four steps in +6dB perfect for headphone matching

PUTS YOU AT THE VENUE. NOT THE OTHER WAY ROUND.
Audio recordings are made for speakers and when played back on headphones, the sound is always driving you nuts by being only in your head.

Our 3D special sound circuit solves this:
The stereo image that is truly out of your head, in front with height, width & depth
Without colouration or loss of resolution
All analogue circuitry (i.e. without costly and complex digital signal manipulation)
Satisfies all listeners.

ACE OF XBASS
Behind XBass is our active EQ circuit which meets a common gripe with headphones head-on, a lack of bass.

Open-back headphones in particular, let all frequencies (especially those precious bass frequencies that the drivers generate so little of) leak freely out of the back instead of trapping and redirecting them back to your ears.

XBass equalization is a much more elegant solution to bass correction than seen elsewhere. It consists of active and passive components and its frequency response curve corrects their low-end response problems with precision.

PACKED WITH PREMIUM GOODNESS
Underpinning the Balanced and Active EQ circuitry are:

Panasonic ECPU capacitors
TDK C0G (Class 1) ceramic capacitors
iFi/AMR ‘OV’ ‘Operationsverstärker’ series op-amps
MELF resistors
Texas Instruments low-noise ICs
muRata capacitors and
Tokyo Cosmos Electric Co. (TOCOS) multi-track potentiometer, with exceptional channel matching even at low volume
