Images illustrate available colors. Confirm your chosen finish and color with our team.
A Series

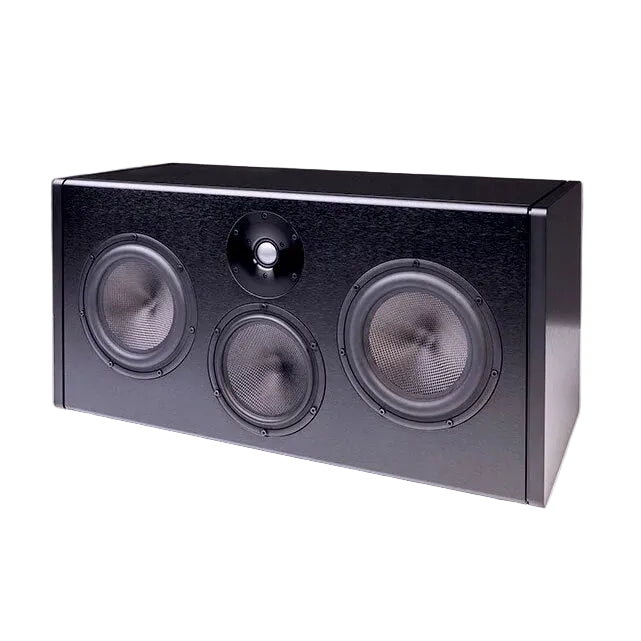

A purpose-built center channel for a Magico A Series theater. A beryllium tweeter, dedicated Graphene Nano-Tec midrange and dual bass drivers bring voices, music and soundtrack dynamics together in a sealed aluminum enclosure.
Travel and installation charges are confirmed separately for your location.
Bespoke / made to order. Contact us to confirm your configuration and current production timing.
Discuss this model Questions? Call us at (804) 282-0438Special orders. Magico loudspeakers are made to order to your chosen model, finish, color and available options. We confirm your specification, current production estimate and installation arrangements before placing the order.
Changes and cancellation. A short, limited cancellation window applies after order placement. Contact Audio Exchange promptly to request a change or cancellation. The exact deadline, eligibility and any applicable costs must be confirmed with our team before ordering; a request does not guarantee that an order can be changed or cancelled.
Dealer installation requirements. Magico dealer requirements mean we supply these speakers with installation by Audio Exchange, rather than shipping them for customer installation. Service availability depends on your location and the scope of the installation. Travel distance, the model selected and installation needs affect feasibility and cost. We confirm whether we can serve your address and provide the applicable delivery, travel and installation charges before accepting your order.
The design
The ACC gives a Magico A Series home theater a dedicated center channel for dialogue, music and soundtrack effects. Its three-way layout combines a 28mm beryllium tweeter, a 6-inch Graphene Nano-Tec midrange and two 7-inch bass drivers. Voices and instruments have their own midrange transducer while the woofers handle lower-frequency demands.
The cabinet uses ⅜-inch 6061-T6 aluminum panels, internal bracing and damping. Magico evaluates the enclosure through finite-element simulation and physical testing to control unwanted vibration. Graphene-layered carbon-fiber cones balance stiffness, mass and damping, while the Elliptical Symmetry Crossover integrates the four drivers using Mundorf components.
For your theater, consider the center-channel amplifier, screen height and listening seats alongside the main speakers. The ACC requires external amplification suitable for a 4-ohm load, and its 26-inch width and 96-pound weight call for a properly supported position.
Audio Exchange can help you plan the complete system, confirm Black or Silver finish selection and assess installation at your location. Pricing is per center speaker; production timing and installation arrangements are confirmed before ordering.
The enclosure uses ⅜-inch-thick 6061-T6 aluminum panels, internal bracing and damping. Magico evaluates the structure through finite-element simulation and physical testing to address unwanted cabinet vibration. The aim is to keep the enclosure from adding its own character to the sound.
A 28mm beryllium dome tweeter handles the high frequencies, while a dedicated 6-inch Graphene Nano-Tec driver covers the midrange. Two 7-inch Graphene Nano-Tec woofers provide bass. The cone construction combines carbon fiber with a graphene layer to balance stiffness, mass and damping; neodymium motor systems and titanium voice coils support driver control.
Magico’s Elliptical Symmetry Crossover integrates the four drivers using Mundorf components and 24dB-per-octave Linkwitz-Riley filters. Its design addresses the transitions between frequency bands, with attention to phase behavior and distortion. The driver array, enclosure and crossover are developed as one acoustic system.
The details
Dimensions and weight are for one speaker.
| Design | Three-way, four-driver sealed center-channel loudspeaker |
|---|---|
| Tweeter | 1 × 1.1-inch (28mm) beryllium dome |
| Midrange | 1 × 6-inch Graphene Nano-Tec |
| Bass drivers | 2 × 7-inch Graphene Nano-Tec |
| Sensitivity | 88 dB |
| Nominal impedance | 4 ohms |
| Frequency response | 26 Hz–50 kHz |
| Recommended amplifier power | 50–300 watts RMS |
| Dimensions | 13″ H × 12.7″ D × 26″ W |
| Weight | 96 lb (43.54 kg) |
| Finish options | Black or Silver; priced per speaker |
We consider your room, equipment and chosen specification together, then coordinate production and professional installation.
Share your existing equipment, listening distance and room layout. We help assess compatibility and placement alongside your model and finish selection.
We confirm your finish, color and available options, then discuss the current production estimate and the next steps for your order.
Tell us your location and delivery access. Our team confirms service availability, installation arrangements and any associated travel costs before you order.
Compare this model with related choices by design, low-frequency drivers, dimensions and starting price.
Viewing this model
A purpose-built center channel for a Magico A Series theater. A beryllium tweeter, dedicated Graphene Nano-Tec midrange and dual bass drivers bring voices, music and soundtrack dynamics together in a sealed aluminum enclosure.
From $9,400.00 per speaker
Viewing this model
S Series
A dedicated S Series center channel for a carefully planned Magico theater. Diamond-coated beryllium, a separate Nano-Tec midrange and dual bass drivers work within a curved, thick-wall aluminum enclosure.
From $21,800.00 per speaker
Explore model →Common questions
Prices are per speaker.
Contact us to confirm the configuration and current production timing. Travel and installation charges are confirmed separately.
Yes. This is a passive center-channel loudspeaker. Use an amplifier suitable for its 4-ohm load, with capability matched to the listening distance and system demands.
Check the complete speaker footprint, support, screen clearance and listening position. Audio Exchange can help plan the center position alongside your main speakers and theater equipment.
Magico dealer requirements call for installation by Audio Exchange rather than shipment for customer installation. Tell us your location and preferred model so we can confirm service feasibility, travel requirements and applicable costs before ordering.
Contact Audio Exchange before visiting to confirm which models are available to demonstrate. Call (804) 282-0438 and share the model, your equipment and listening priorities.
