Images illustrate available colors. Confirm your chosen finish and color with our team.

A Series

Magico ASUB Powered Subwoofer

A dedicated bass component for music and home theater. A front-firing 10-inch aluminum driver, 500-watt internal amplifier and DSP controls work within a braced, sealed aluminum enclosure.

$9,000.00per subwoofer

Travel and installation charges are confirmed separately for your location.

Bespoke / made to order. Contact us to confirm your configuration and current production timing.

Discuss this model Questions? Call us at (804) 282-0438
1 × 10″Drivers
20–120 HzFrequency response
108 lbPer subwoofer
Special-order & installation details

Special orders. Magico loudspeakers are made to order to your chosen model, finish, color and available options. We confirm your specification, current production estimate and installation arrangements before placing the order.

Changes and cancellation. A short, limited cancellation window applies after order placement. Contact Audio Exchange promptly to request a change or cancellation. The exact deadline, eligibility and any applicable costs must be confirmed with our team before ordering; a request does not guarantee that an order can be changed or cancelled.

Dealer installation requirements. Magico dealer requirements mean we supply these speakers with installation by Audio Exchange, rather than shipping them for customer installation. Service availability depends on your location and the scope of the installation. Travel distance, the model selected and installation needs affect feasibility and cost. We confirm whether we can serve your address and provide the applicable delivery, travel and installation charges before accepting your order.

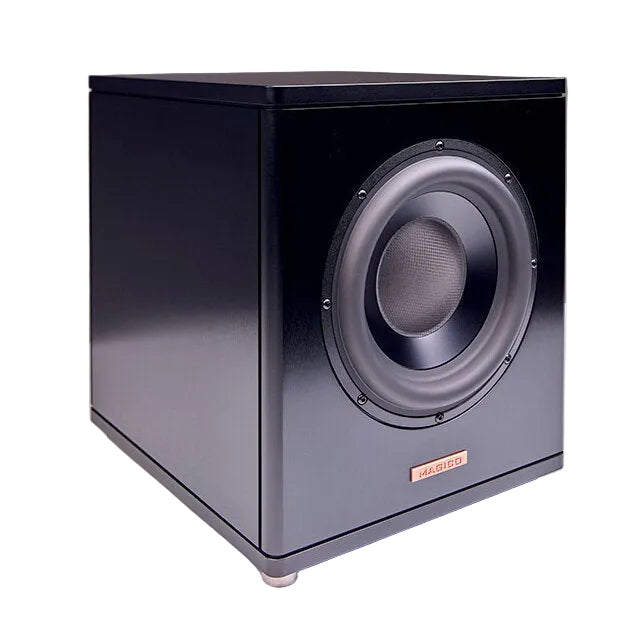

Magico ASUB powered subwoofer in black, three-quarter front view

The design

Reference engineering, considered.

The ASUB adds low-frequency support to a stereo or home-theater system, with a front-firing 10-inch aluminum woofer and internal 500-watt amplification. It can be considered alongside Magico A Series speakers or other systems, with room size, listening level and the main speakers’ bass capability guiding the choice.

The sealed enclosure uses ⅜-inch 6061-T6 aluminum, internal bracing and damping. Magico evaluates the structure through finite-element simulation and physical testing to control unwanted vibration. The driver combines an aluminum cone with a 55mm titanium voice coil.

A digitally controlled active crossover and DSP provide adjustment for integration with the main speakers. Three memory presets store individual settings; RCA and XLR inputs support connection planning with your equipment.

Placement and calibration matter as much as the specification sheet. Audio Exchange can help consider listening seats, available positions and the rest of your system, then coordinate installation and adjustment. Black and Silver are priced per subwoofer; production timing and service availability are confirmed before ordering.

Every part has a purpose.

Sealed Aluminum Enclosure with Internal Bracing

The cabinet uses ⅜-inch-thick 6061-T6 aluminum, internal bracing and damping, drawing on principles developed for Magico’s QSUB platform. Magico evaluates the structure using finite-element simulation and physical testing to control unwanted cabinet vibration.

A Purpose-Built 10-Inch Aluminum Driver

The front-firing woofer uses a stiff aluminum cone and a 55mm titanium voice coil. Magico refines its acoustic, mechanical, electromagnetic and thermal behavior through simulation, with attention to low-frequency distortion and driver control.

500-Watt Amplification and DSP Integration

An internal 500-watt amplifier powers the driver, so the ASUB does not require a separate subwoofer power amplifier. A digitally controlled active crossover and DSP provide adjustment for integration with the main speakers. Three memory presets store individual settings, while signal detection, automatic shutdown, anti-clip and thermal protection support operation.

The details

Specifications

Dimensions and weight are for one subwoofer. Where multiple amplifier ratings are listed, power depends on the supply voltage.

DesignPowered subwoofer with sealed aluminum enclosure
Driver1 × 10-inch front-firing aluminum woofer
Voice coil55mm titanium
Internal amplifier power500 watts
Frequency response20–120 Hz
RCA input impedance54 kΩ
XLR input impedance44 kΩ
Control featuresDigitally controlled active crossover and DSP; three memory presets
Operating featuresSignal detection, automatic shutdown, anti-clip and thermal protection
Dimensions18″ H × 17.6″ D × 14.5″ W
Weight108 lb
Finish optionsBlack or Silver; priced per subwoofer

Plan your complete Magico system.

We consider your room, equipment and chosen specification together, then coordinate production and professional installation.

Match the system

Share your existing equipment, listening distance and room layout. We help assess compatibility and placement alongside your model and finish selection.

Confirm your specification

We confirm your finish, color and available options, then discuss the current production estimate and the next steps for your order.

Plan your installation

Tell us your location and delivery access. Our team confirms service availability, installation arrangements and any associated travel costs before you order.

Common questions

Questions about this model

What are the price and finish options?

Prices are per subwoofer.

  • Black: $9,000.00
  • Silver: $9,400.00

Contact us to confirm the configuration and current production timing. Travel and installation charges are confirmed separately.

Does this subwoofer need a separate power amplifier?

No. Magico ASUB has built-in amplification. Your system still needs a suitable signal connection and careful integration with the main speakers. Confirm the appropriate supply-voltage configuration with our team.

How is the subwoofer matched to my room?

Placement, output level, crossover and available DSP controls are considered together with your main speakers and listening seats. Audio Exchange can help plan the connection and calibration as part of installation.

Can Magico be shipped to my address?

Magico dealer requirements call for installation by Audio Exchange rather than shipment for customer installation. Tell us your location and preferred model so we can confirm service feasibility, travel requirements and applicable costs before ordering.

Can I arrange a demonstration?

Contact Audio Exchange before visiting to confirm which models are available to demonstrate. Call (804) 282-0438 and share the model, your equipment and listening priorities.
