Local Pickup Only
Due to the fragile nature and substantial weight of some audio equipment, certain items are deemed too risky to ship. As a result, this product is available for local pickup only. If you're interested in reserving this item, please feel free to contact us for more details and to arrange a pickup.
This McIntosh 2152 amp is a trade-back from a long time audiophile customer. It is in near mint condition and is in perfect working order. The amplifier has been impeccably maintained and is a gorgeous example of this limited edition piece celebrating McIntosh's 70th anniversary. The 2152 is for local pick-up only. Please contact us with any questions or to arrange a demo.
Overview
The MC2152 70th Anniversary Vacuum Tube Amplifier is a 150 Watt per channel stereo amplifier and features a striking new design to honor McIntosh's seven decades of handcrafting some of the best home audio equipment the world has ever heard. While its design is new, the MC2152 incorporates the lessons McIntosh has learned and the techniques they've invented in 70 years of audio engineering.
Utilizing McIntosh's patented Unity Coupled Circuit output transformer technology – the same technology the company was founded on in 1949 – the full 150 watts can be delivered to almost any pair of speakers regardless of impedance.

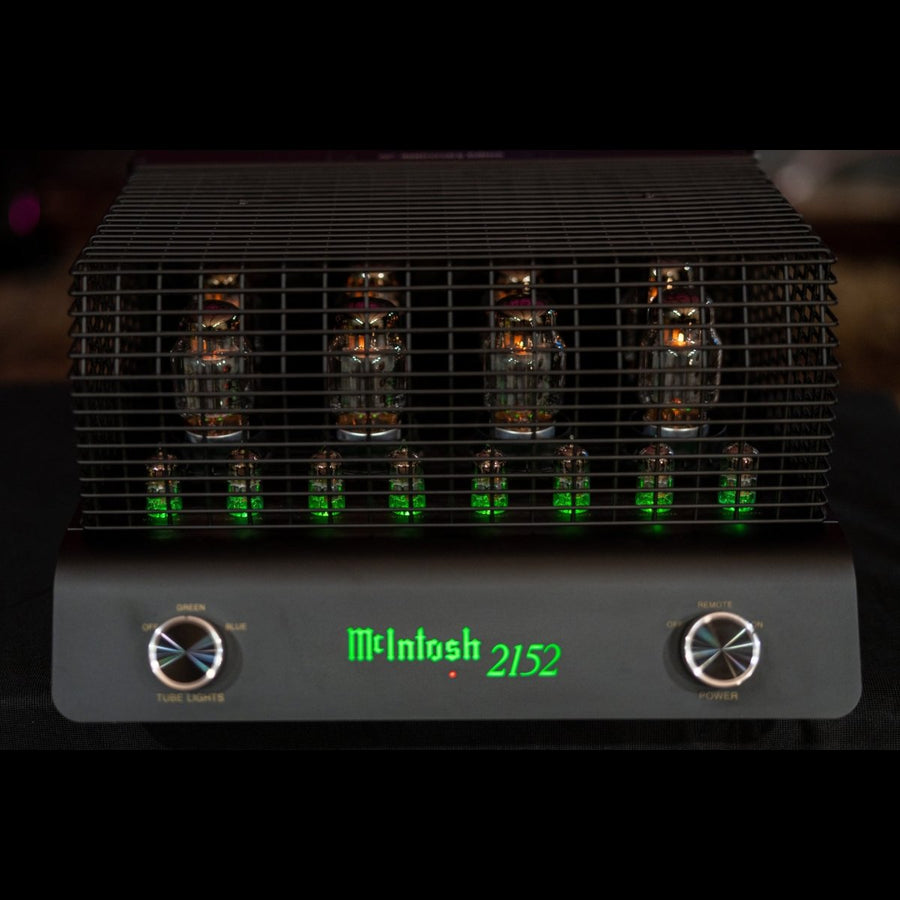

The stunning new design of the MC2152 is highlighted by a bead-blasted black anodized aluminum chassis accentuated with matte finish carbon fiber side panels. The front panel showcases a backlit laser-cut McIntosh logo flanked by classic McIntosh knobs. The vacuum tubes are covered by a 12-gauge stainless steel wire cage with a black powder-coated finish.

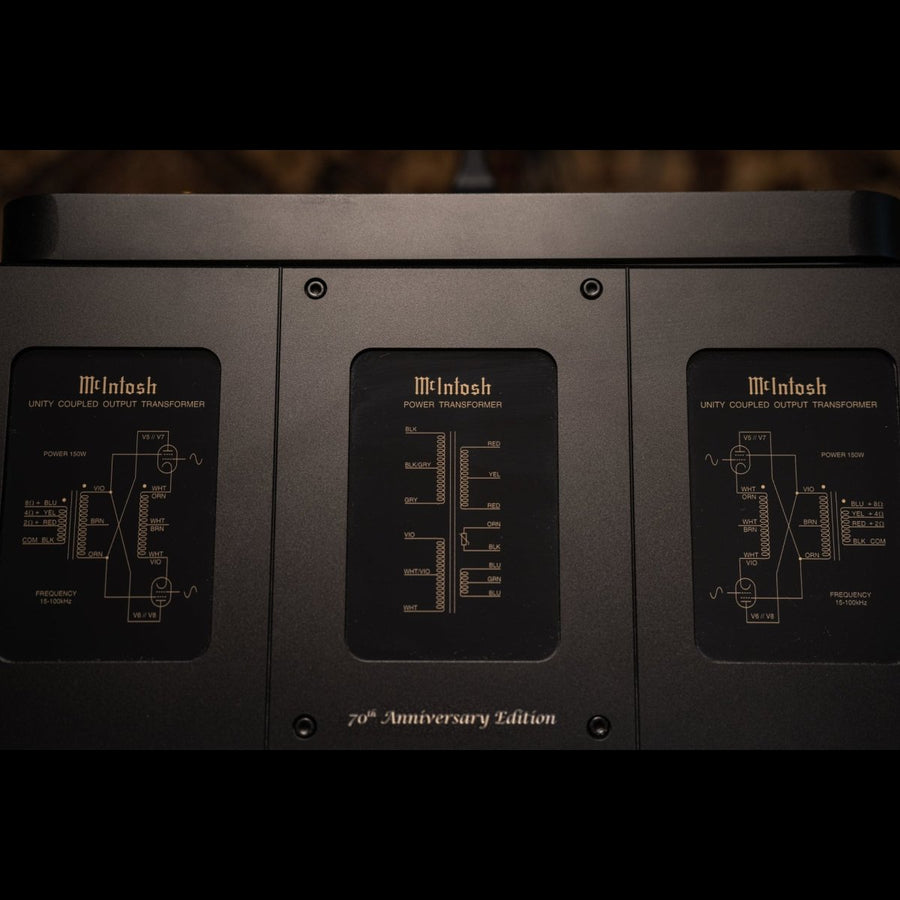

To the back are the two Unity Coupled Output Transformers with the power transformer centered between them. All three transformers are housed in glass topped extruded enclosures displaying the wiring diagram for each transformer. A 70th Anniversary badge is laser engraved into the top plate of the enclosures.

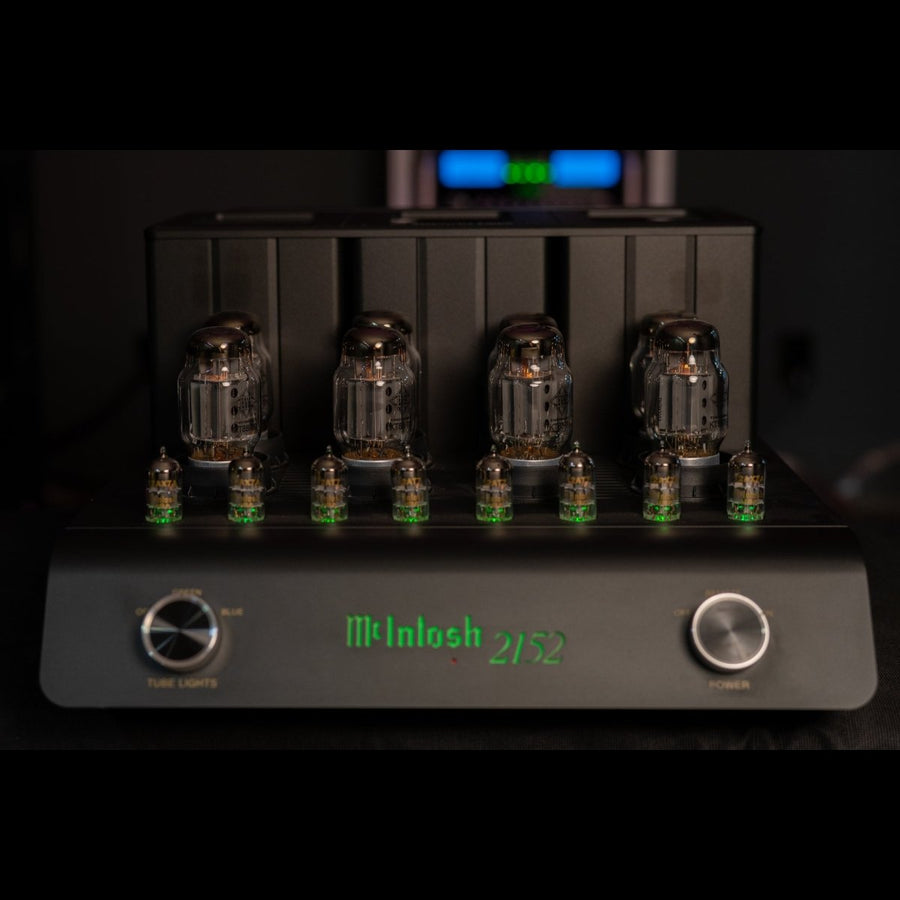

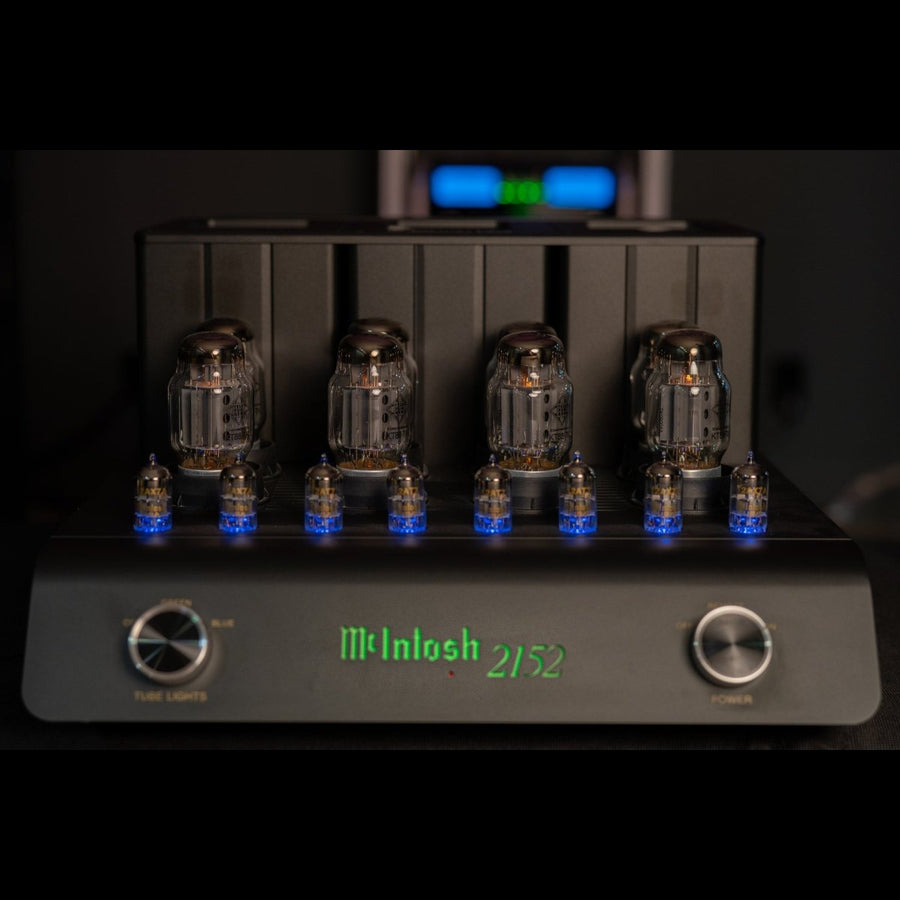

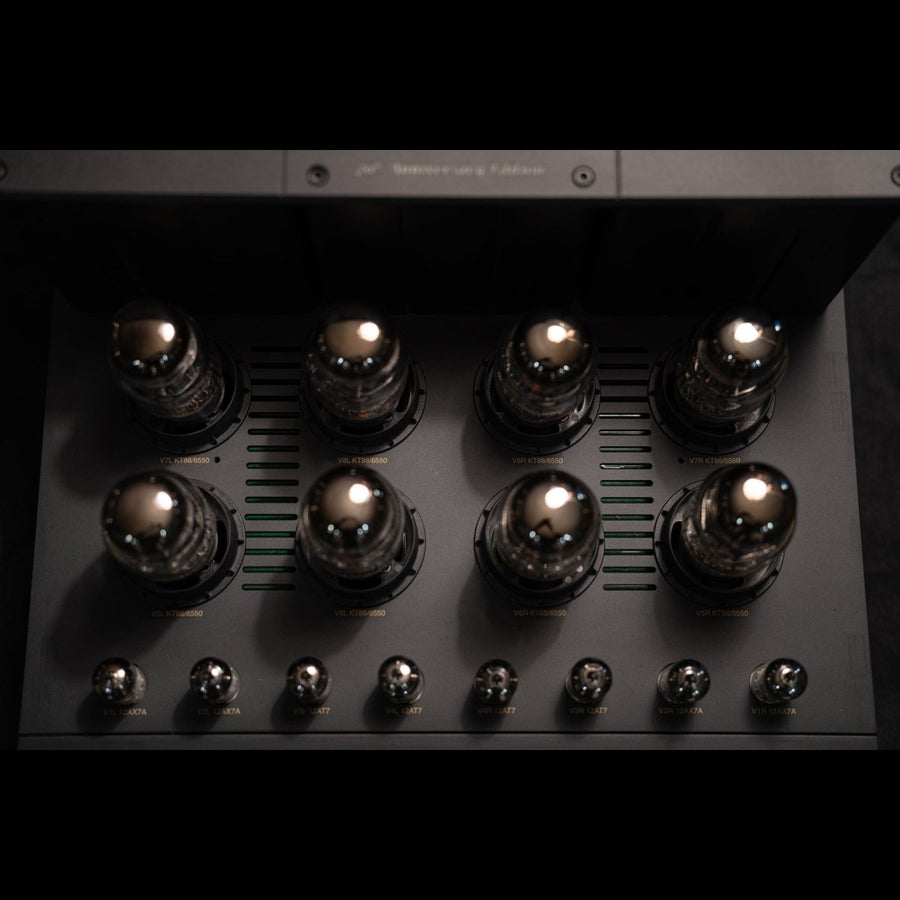

The MC2152 uses eight KT88 output vacuum tubes plus eight small signal tubes comprised of four 12AX7A and four 12AT7 vacuum tubes; half of the tube complement is assigned to each audio channel. The 12AX7A vacuum tubes are for the balanced and input amps, while the 12AT7 tubes are for the voltage and driver amps. The LEDs under the eight small signal tubes can be set to three illumination settings: Off (which allows the tubes natural amber glow to be visible), Green, or Blue – a new color option unique to the MC2152. McIntosh's Sentry Monitor™ technology monitors the output current and shuts the amplifier off if it ever exceeds safe limits.

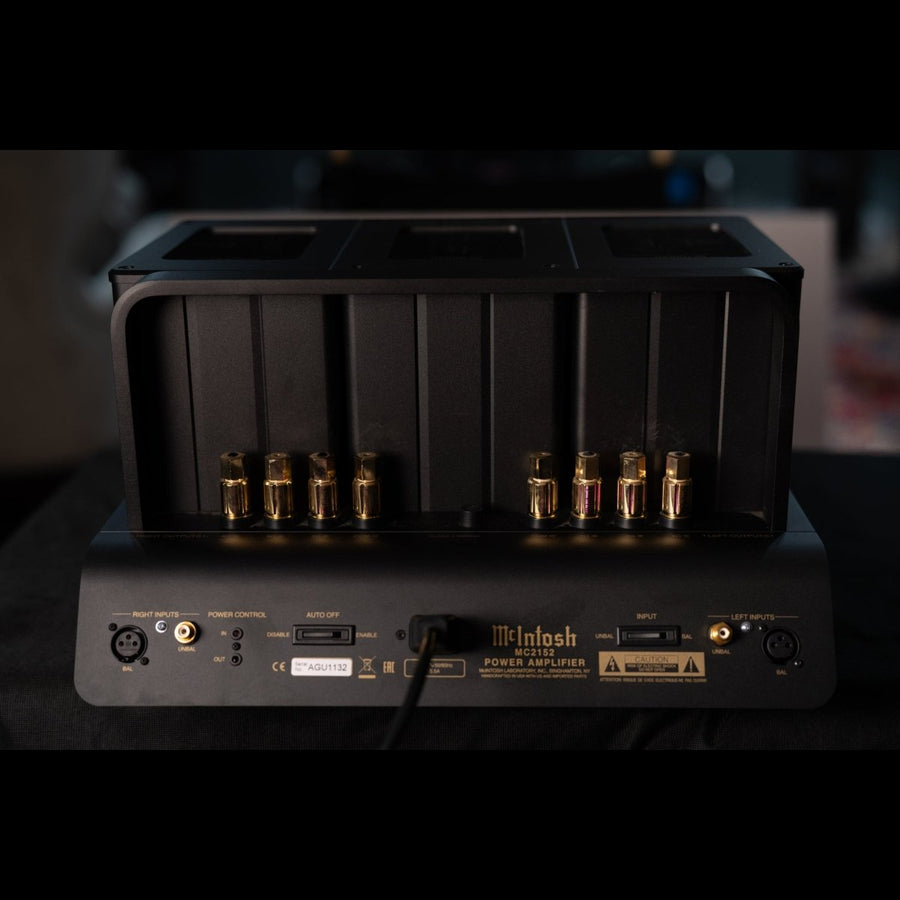

On the back are both balanced and unbalanced inputs, along with McIntosh's patented Solid Cinch™ speaker binding posts to securely connect your speaker cables to your speakers, and an input and output for McIntosh Power Control technology, which will automatically turn other connected McIntosh components such as preamplifiers, CD players or turntables, on and off.
Technical Specifications
Specifications | |
Power Output Per Channel | 150W @ 2, 4 or 8 Ohms |
Number of Channels | 2 |
Total Harmonic Distortion | 0.5% |
S/N below rated output | 112dB |
Dynamic Headroom | 1.2dB |
Damping Factor | >18 |
Rated Power Band | 20Hz to 20kHz |
Frequency Response | +0, -0.25dB from 20Hz to 20,000Hz; +0, -3dB from 10Hz to 70,000Hz |
Remote Power Control | Yes |
Multi-Channel DB25 Cable | N/A |
Speaker Binding Post Type | Patented Solid Cinch™ Speaker Binding Posts |
Circuit Configuration | Unity Coupled |
Circuit Design | Vacuum Tube |
Mono Bridge | No |
Mono Parallel | No |
Output Type | Unity Coupled Output Transformer |
Meters | No |
Meter Light Switch | N/A |
Balanced Input | 2 |
Front Panel | N/A |
Illumination | Small Signal Tubes: Green, Blue, Natural |
Chassis Style | Bead blasted black anodized aluminum with matte finish carbon fiber side panels |
Dimensions (W x H x D) | 17-1/2" (44.45cm) x 10-1/4" (26cm) (including feet) x 28" (71.1cm) (including front panel and cables) |
Weight | 125 lbs (56.7 kg) |
Shipping Weight | 138 lbs (62.6 kg) |
