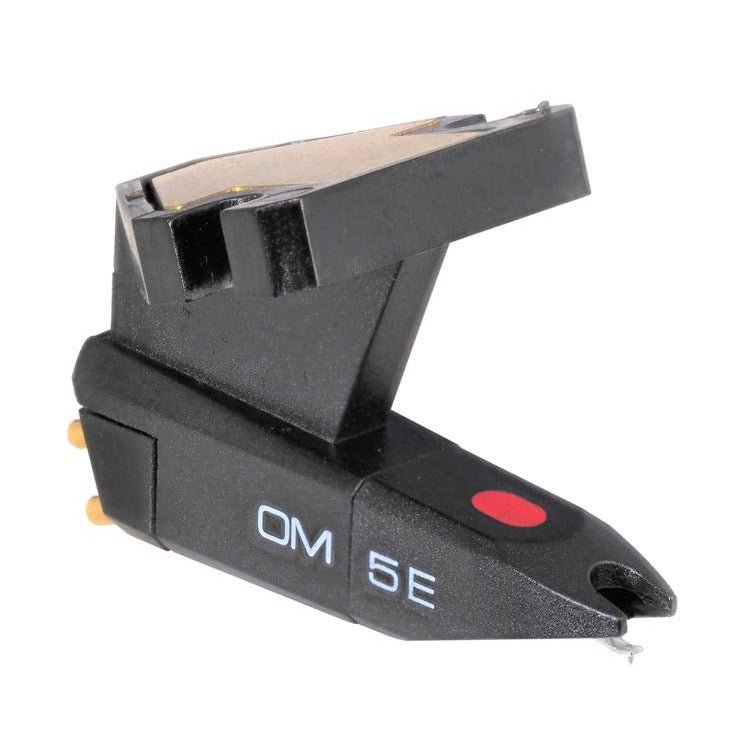

Ortofon OM 5E Moving Magnet Turntable Cartridge

Rediscover the joy of vinyl records with the Ortofon OM 5E cartridge, a product that promises balanced and distortion-free playback for a general-purpose audience.
$79.99
$79.99
Ships today
Order within
Check delivery times at checkout or contact us for further details. Limited exceptions may apply.

Rediscover the joy of vinyl records with the Ortofon OM 5E cartridge, a product that promises balanced and distortion-free playback for a general-purpose audience. Whether your tonearm has a standard headshell or a cartridge mount, the OM 5E is designed to elevate your sound reproduction experience. The cartridge features an elliptical stylus that ensures balanced and distortion-free playback, capable of following groove oscillations more accurately than spherical diamonds due to its contoured shape. This results in better tracking and less distortion, promising an immersive auditory experience.

Key Features

  • Elliptical Stylus: The OM 5E houses an elliptical stylus that guarantees balanced and distortion-free playback, enhancing the nuances of each record.
  • Optimal Fit and Sound Reproduction: The cartridge offers an optimal fit and sound reproduction, adapting seamlessly to both standard and low mass tonearms.
  • Easy Interchangeability: The OM 5E allows for easy interchangeability with a wide range of replacement styli, offering an opportunity to optimize sound reproduction without replacing the entire cartridge.
  • Easy Installation: The OM 5E is designed for easy mounting and alignment on both top mount and bottom mount headshells, promising compatibility with a wide variety of phono preamps and playback systems.

Technical Specifications

Specification Detail
Output Voltage 4 mV (at 1000 Hz, 5cm/sec)
Channel Balance at 1 kHz 2 dB
Channel Separation at 1 kHz 22 dB
Channel Separation at 15 kHz 15 dB
Frequency Response 20-20,000 Hz (+ 3 / - 3 dB)
Tracking Ability at 315Hz 60 µm (at recommended tracking force)
Compliance, Dynamic, Lateral 20 µm/mN
Stylus Type Elliptical
Stylus Tip Radius r/R 8/18 µm
Tracking Force Range 1.5-2.0 g (15-20 mN)
Recommended Tracking Force 1.75 g (17.5 mN)
Tracking Angle 20°
Internal Impedance, DC Resistance 750 Ohm
Internal Inductance 450 mH
Recommended Load Resistance 47 kOhm
Recommended Load Capacitance 200-500 pF
Cartridge Colour, Body/Stylus Black/Black
Cartridge Weight (incl. extra weight) 5 g
Cartridge Weight (excl. extra weight) 2.5 g
Replacement Stylus Unit Stylus 5E
