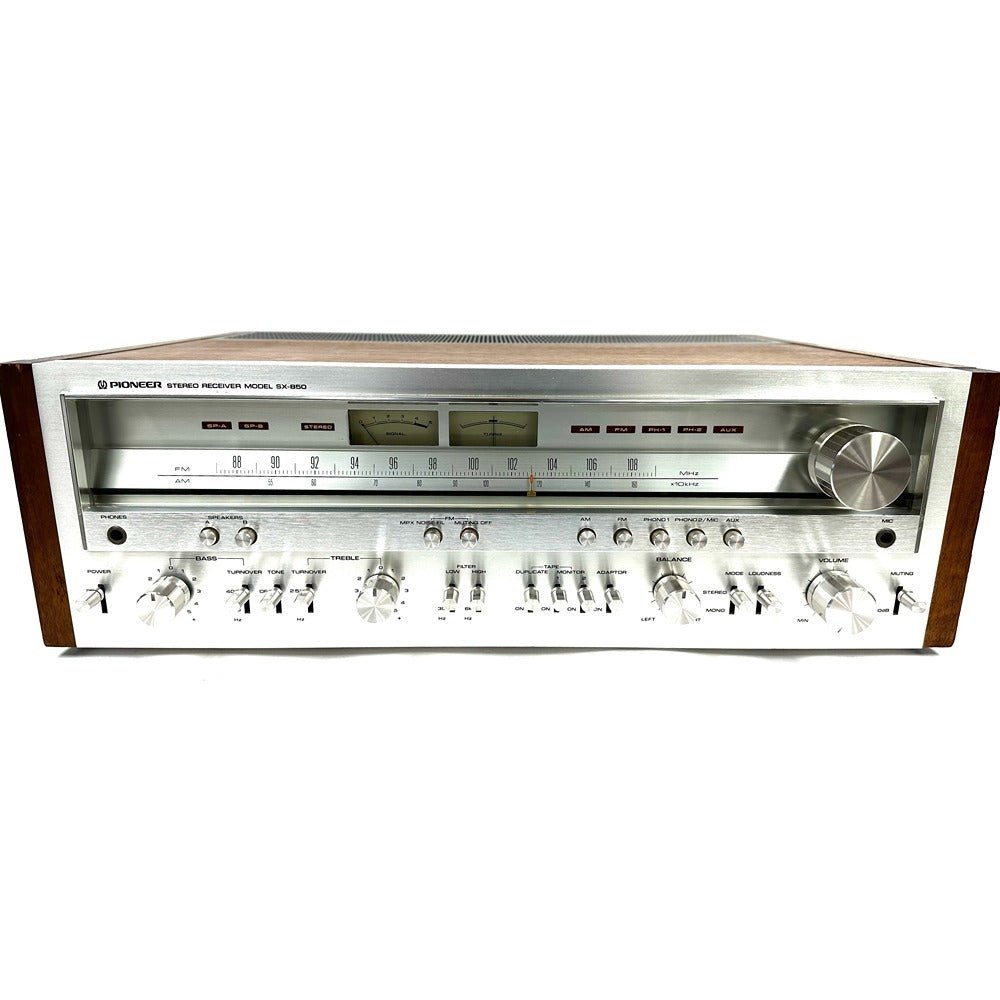

Pioneer SX-850 Stereo AM/FM Receiver

Vendor: Pioneer
$1,200.00
$1,200.00
Subtotal: $1,200.00

Free Shipping

Free Returns

Learn More.
Pioneer SX-850 Stereo AM/FM Receiver

Pioneer SX-850 Stereo AM/FM Receiver

$1,200.00

Pioneer SX-850 Stereo AM/FM Receiver

$1,200.00
This Pioneer SX-850 is in excellent vintage condition. It's been professionally cleaned & inspected to ensure optimal performance, with only minor cosmetic damage. Refer to the pictures above.

Pioneer SX-850 Stereo AM/FM Receiver: A Classic Audio Experience

Discover the Vintage Charm with Pioneer SX-850

The Pioneer SX-850, a revered stereo AM/FM receiver from the golden era of audio (1976-78), embodies the perfect harmony of power and precision in sound technology. This iconic receiver is more than just an audio component; it's a portal to a rich, immersive musical experience, offering robust power output and exceptional sound quality.

Key Features

  • Robust Power Output: With a continuous power output of 65 watts per channel, the SX-850 ensures your music is delivered with clarity and strength, filling any room with dynamic sound.
  • Super-Quiet Phono Equalizer: The 3-stage direct-coupled phono equalizer in the SX-850 brings out the best in vinyl records, offering unmatched clarity and warmth in audio reproduction.
  • Refined FM/AM Tuning: Equipped with a dual-gate MOS FET and a 4-gang variable capacitor, the receiver excels in FM/AM tuning, providing enhanced sensitivity and selectivity for crystal-clear radio reception.
  • Flexible Connectivity Options: The SX-850 is designed to accommodate a variety of audio setups, featuring multiple inputs and outputs, including options for different speaker configurations and a separable pre/main connection.

Technical Specifications

  • Tuning Range: FM, MW
  • Power Output: 65 watts per channel into 8Ω (stereo)
  • Frequency Response: 10Hz to 50kHz
  • Total Harmonic Distortion: 0.1%
  • Damping Factor: 25
  • Input Sensitivity: 6.5mV (mic), 2.5mV (MM), 150mV (DIN), 150mV (line)
  • Signal to Noise Ratio: 70dB (MM), 90dB (line)
  • Output: 150mV (line), 30mV (DIN), 1V (Pre out)
  • Speaker Load Impedance: 4Ω (minimum)
  • Semiconductors: 3 x FET, 3 x IC, 56 x transistors, 36 x diodes
  • Dimensions: 526.6 x 173 x 411.5mm
  • Weight: 19.1kg
  • Accessories: FM T-type antenna
  • Year: 1976

The Pioneer SX-850 is not just a receiver; it's a timeless piece that continues to resonate with audiophiles and vintage audio lovers alike. Its combination of classic design, robust performance, and superior sound quality makes it an enduring choice for those who appreciate the depth and warmth of vintage audio.
