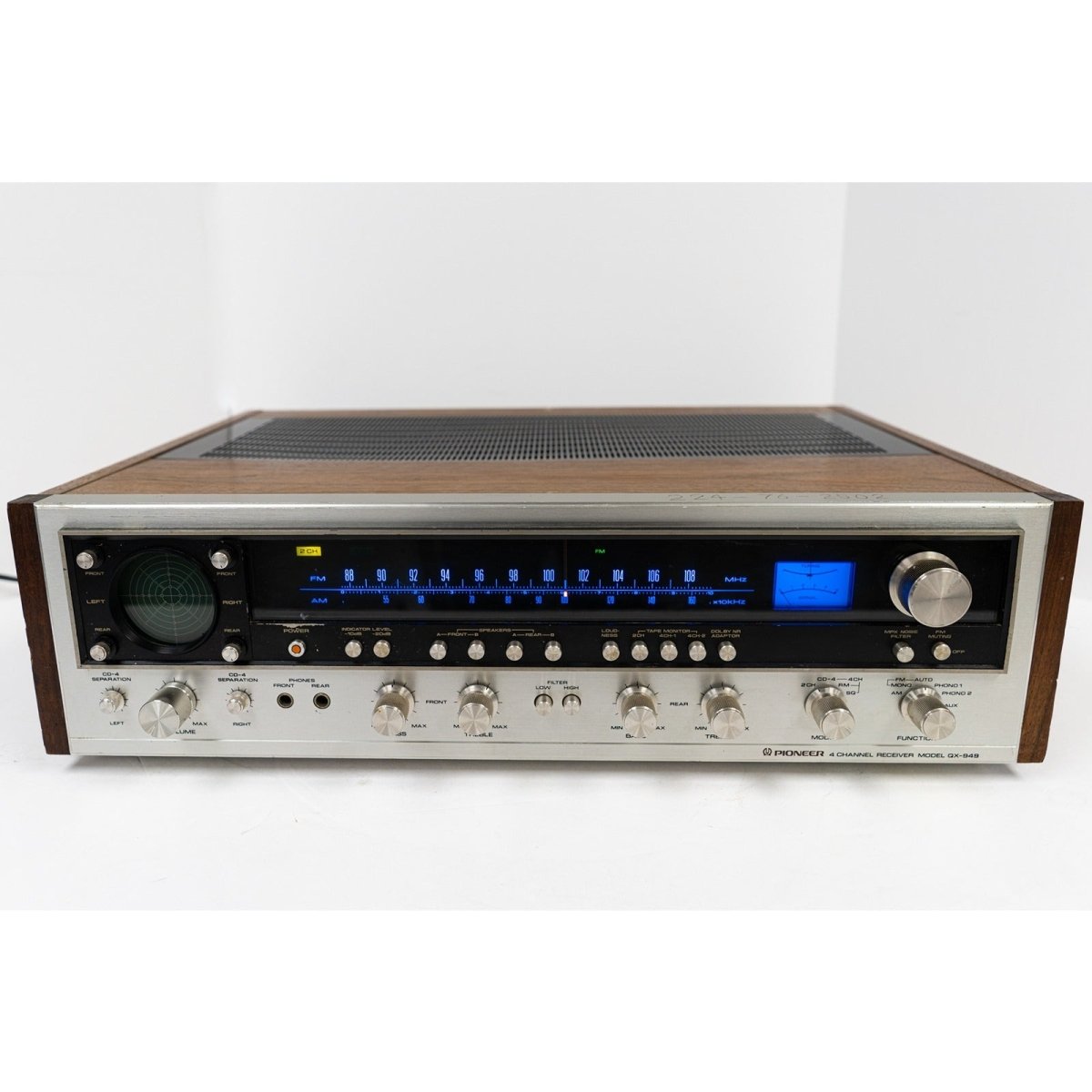

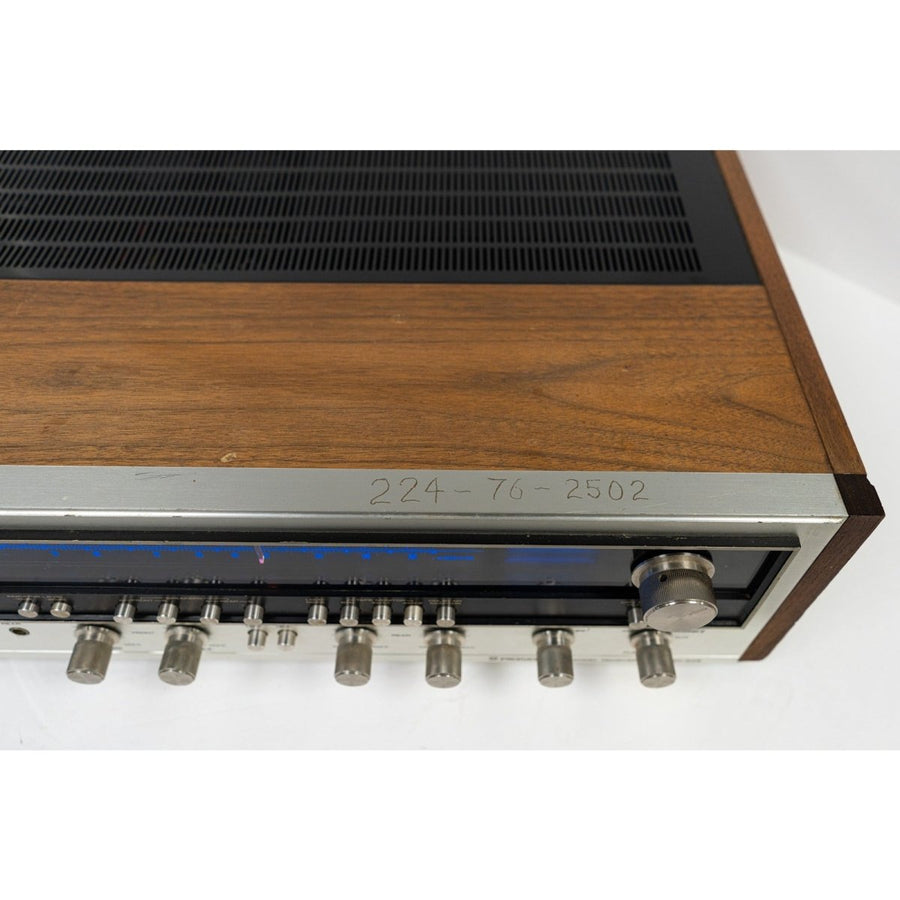

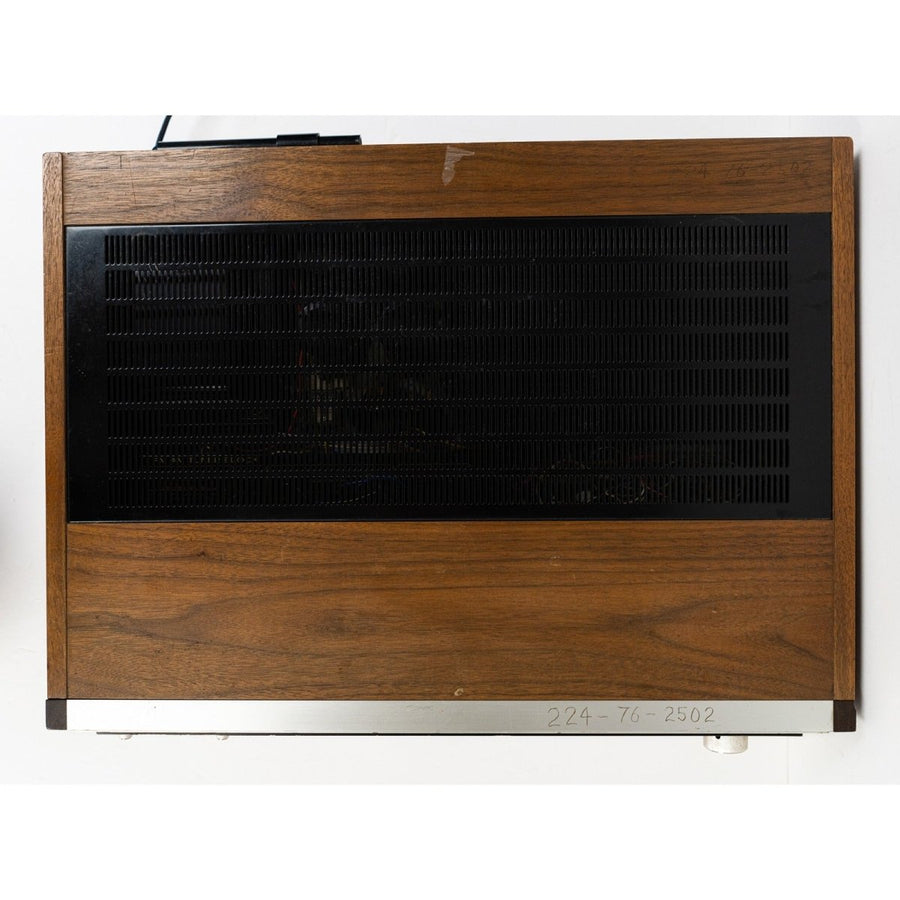

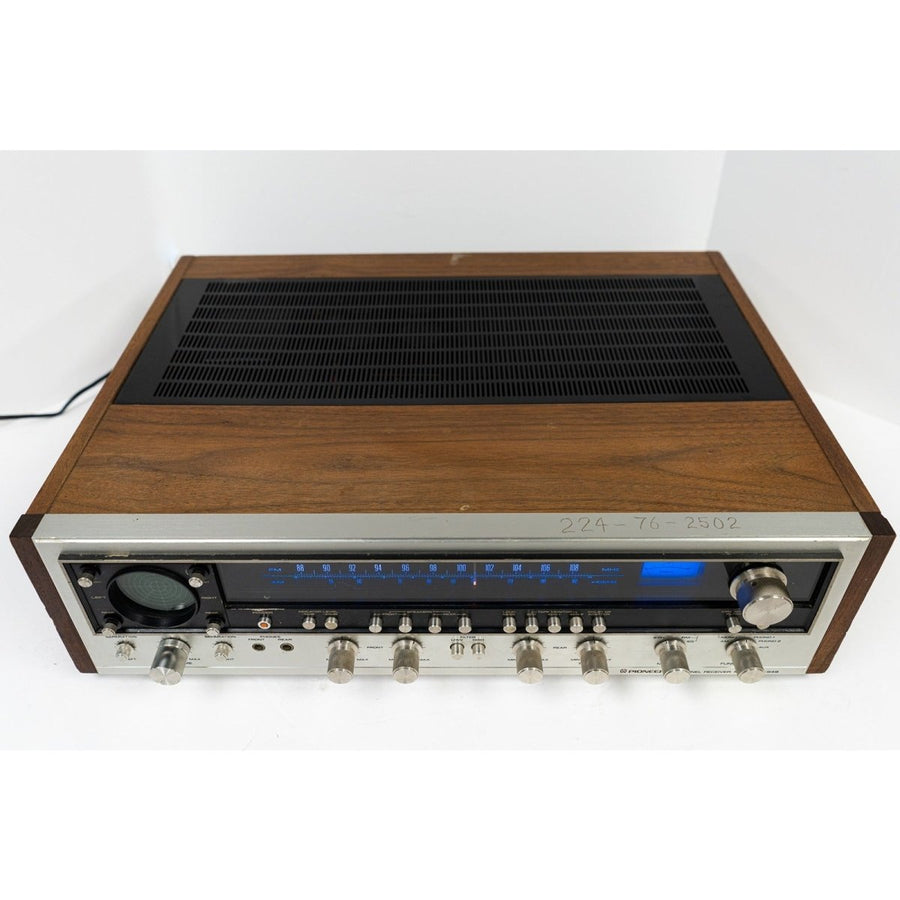

The QX-949 is not just a receiver; it's a piece of history. It's Pioneer's ultimate four-channel FM/MW stereo receiver, designed to accommodate all quadraphonic systems of its time. This vintage marvel is a testament to the days when audio equipment was not just about sound, but also about craftsmanship and aesthetic appeal.
One of the standout features of the QX-949 is its unique power boosting circuit. This innovative feature allows the receiver to convert its substantial 4-channel power output into an even more impressive 2-channel power, providing a rich and immersive audio experience.
The QX-949 is also equipped with a variety of features to enhance your listening experience. It comes with 3 pairs of tape terminals, 4 pairs of speaker systems, and 2 pairs of phono terminals. It also includes high and low filters and a Dolby NR adapter switch, ensuring you have all the tools you need to customize your sound.
Despite its vintage status, the QX-949 remains a heavyweight in the audio world, weighing in at 22.4kg. Its robust build and timeless design make it a standout addition to any audio setup.
Technical Specifications:
Specification | Value |
---|---|
Tuning range | FM, MW |
Power output | 60W/ch (stereo), 40W/ch into 8Ω (quadraphonic) |
Frequency response | 7Hz to 25kHz |
Total harmonic distortion | 0.3% |
Damping factor | 35 |
Input sensitivity | 2.5mV (MM), 150mV (line) |
Signal to noise ratio | 70dB (MM), 90dB (line) |
Output | 150mV (line) |
Speaker load impedance | 4Ω to 16Ω |
Semiconductors | 14 x FET, 7 x IC, 118 x transistors, 69 x diodes |
Dimensions | 550 x 160 x 440mm |
Weight | 22.4kg |
Year of production | 1974 |
Experience the nostalgia and superior sound quality of the Pioneer QX-949 MW/FM Four Channel Receiver. It's not just a piece of audio equipment; it's a piece of history.
