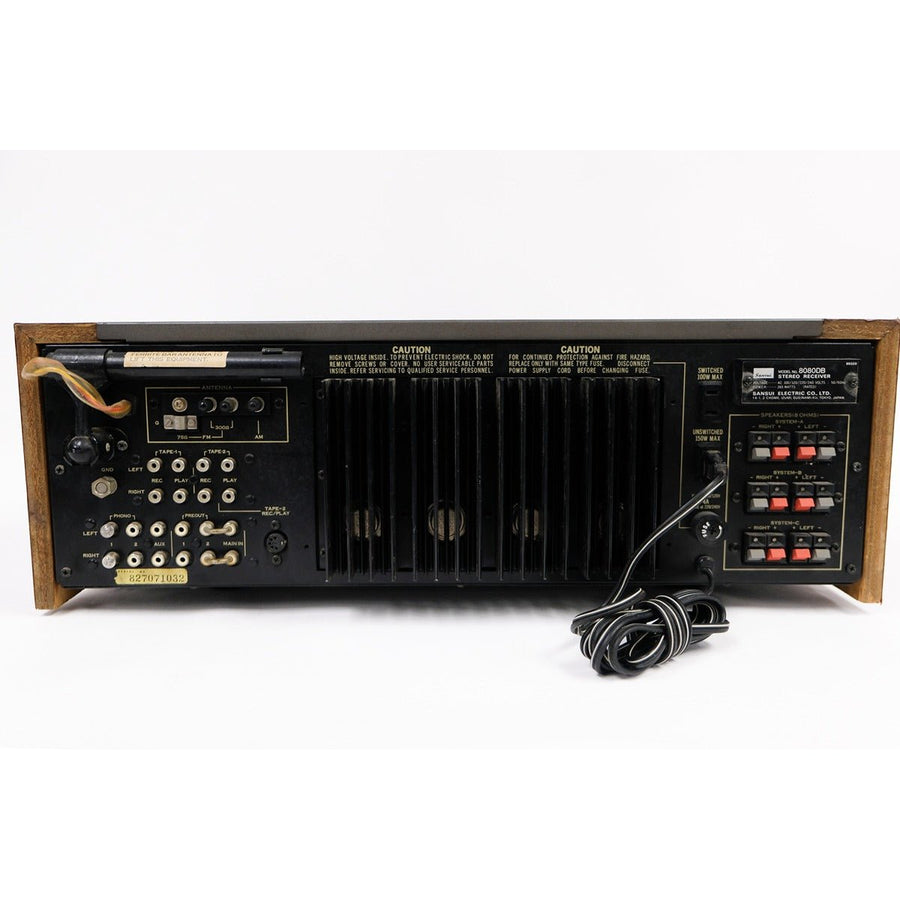

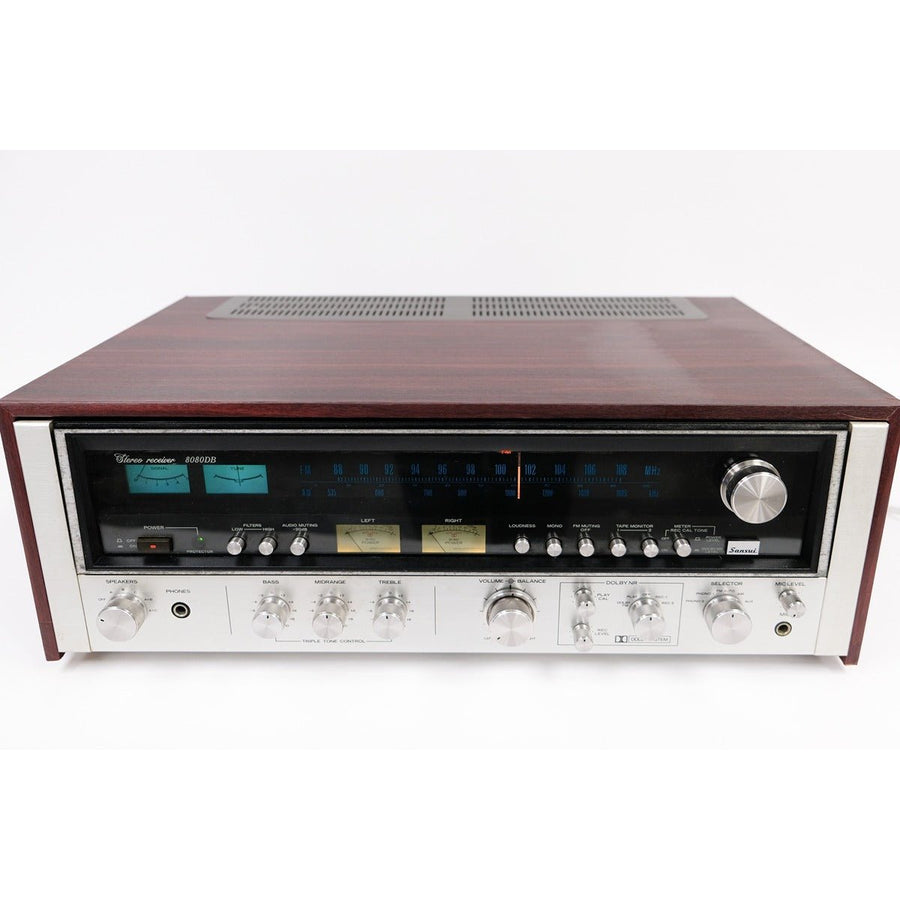

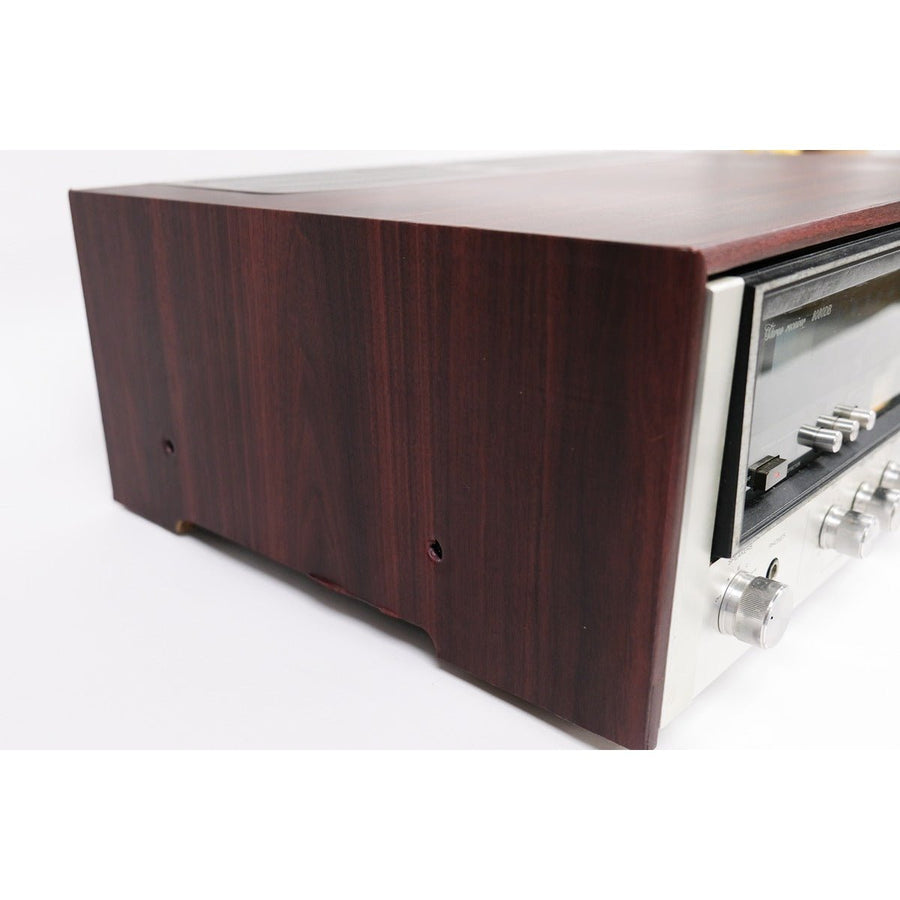

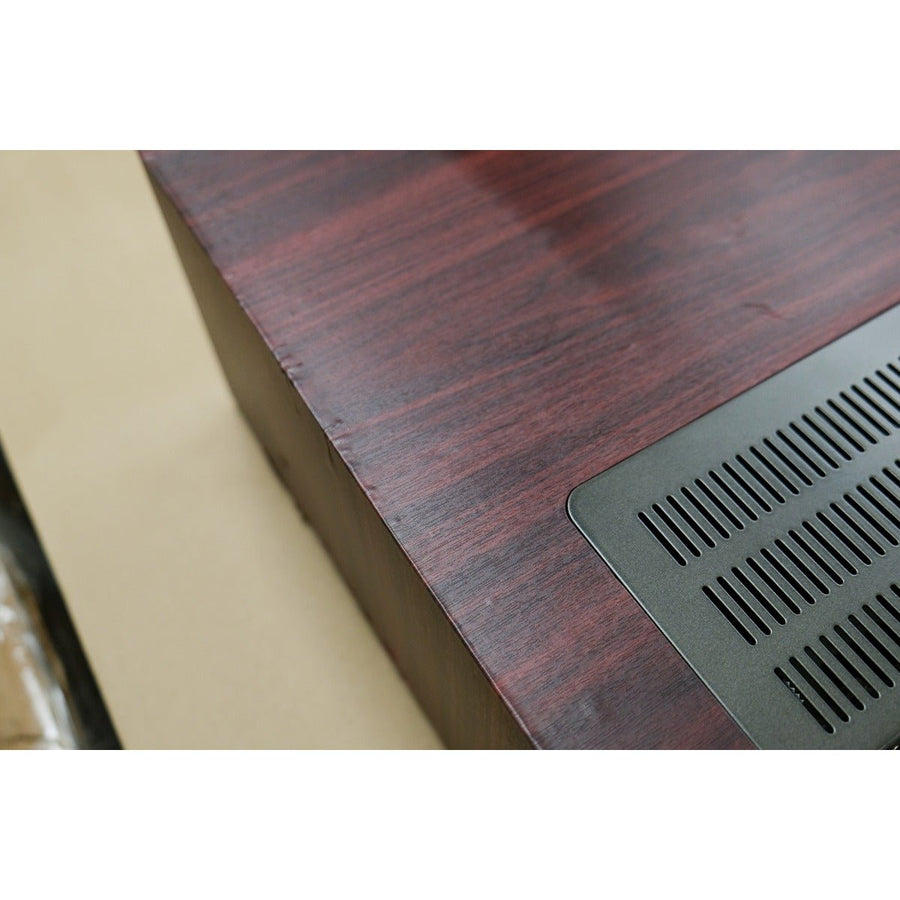

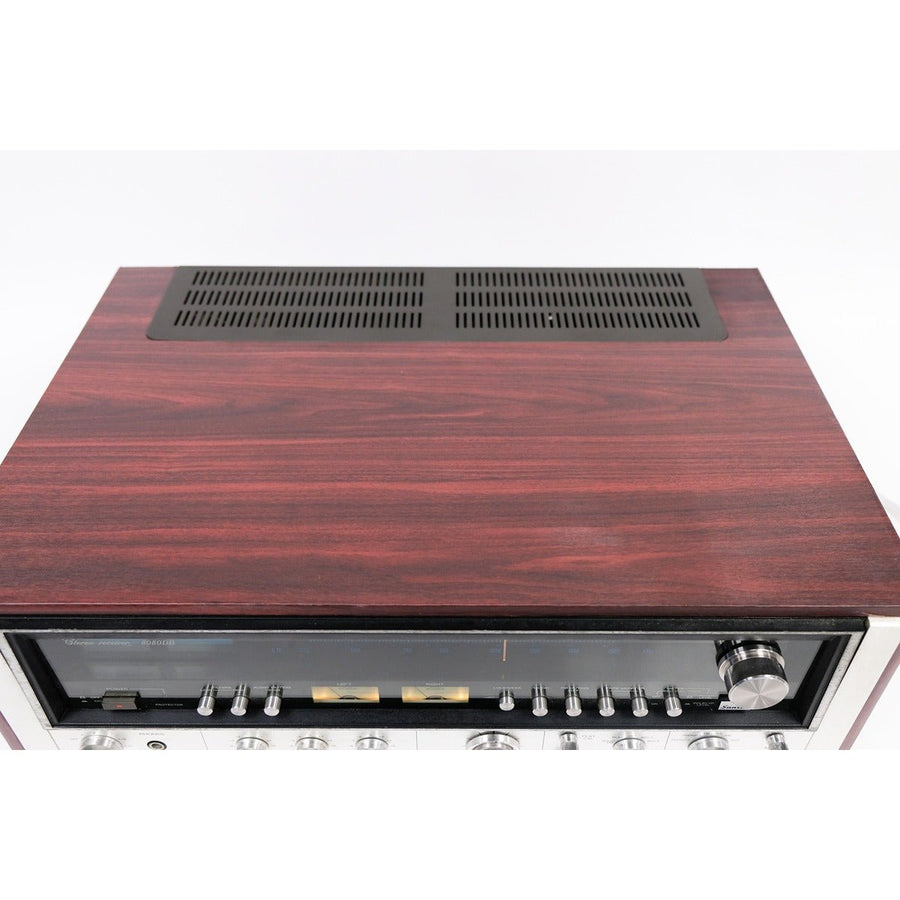

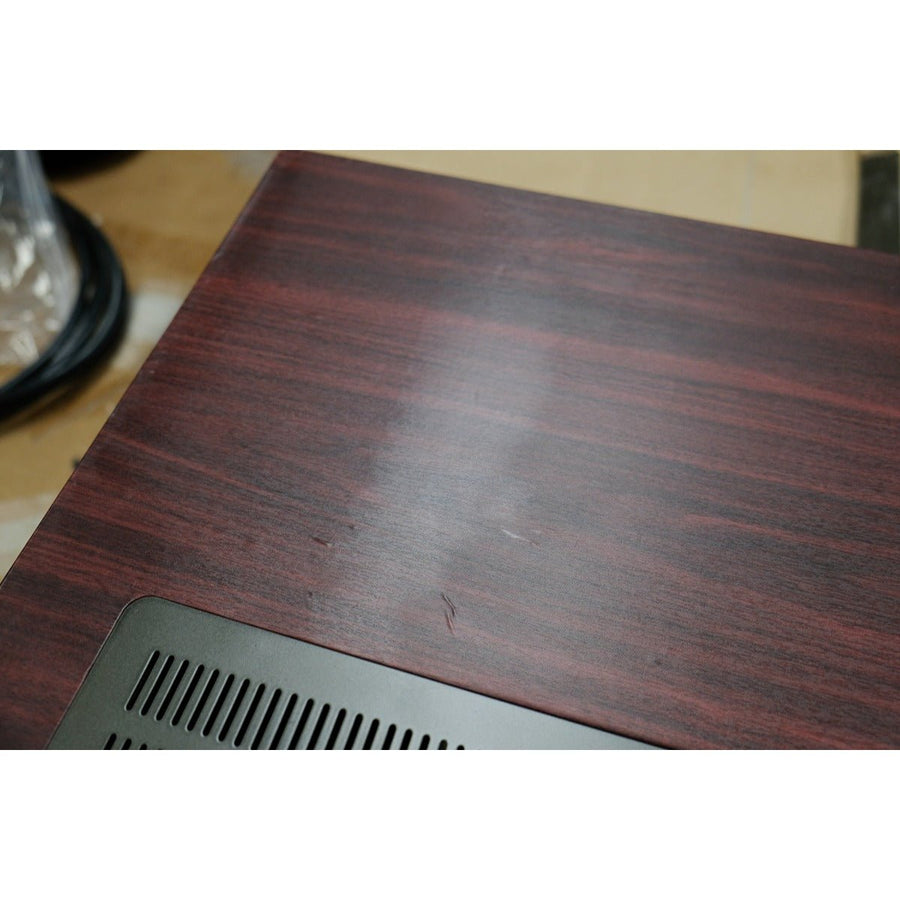

This item has been cleaned and restored by a professional technician. This unit has minor cosmetic imperfections in its custom redwood vinyl wrap. Refer to pictures above.
Sansui 8080DB Stereo AM/FM Receiver: A Blend of Power and Sophistication
Introducing the Sansui 8080DB Stereo AM/FM Receiver, a harmonious blend of power and sophistication, designed to deliver an unparalleled audio experience. Manufactured between 1975 and 1979, this classic piece of audio technology is renowned for its robust performance and timeless design.
Overview
The Sansui 8080DB is not just a receiver; it's a statement of exquisite craftsmanship and audio quality. It promises to deliver a stable output of 85 watts per channel, ensuring that your music and audio projects are heard in all their glory. The built-in Dolby processor enhances the sound quality, providing clear, crisp, and immersive audio that fills the room. The receiver also boasts triple tone controls and four accurate meters, allowing for precise adjustments and real-time monitoring of audio parameters.
Unmatched Audio Performance
Experience audio like never before with the Sansui 8080DB's impressive features:
- Frequency Response: Enjoy a broad frequency response from 10Hz to 30kHz, capturing every nuance of sound across various genres of music.
- Low Harmonic Distortion: With a total harmonic distortion of just 0.1%, expect nothing but pure and unaltered sound.
- High Signal to Noise Ratio: The high signal-to-noise ratios of 70dB (MM), 80dB (DIN), and 80dB (line) ensure minimal interference and noise in your audio output.
Versatile Connectivity
The Sansui 8080DB offers versatile connectivity options to accommodate various audio sources and equipment:
- Multiple Inputs: Includes inputs for mic (4mV), MM (2.5mV), DIN (150mV), and line (150mV), offering compatibility with a wide range of audio devices.
- Diverse Outputs: Provides outputs of 150mV (line), 30mV (DIN), and 0.775V (Pre out), allowing for flexible audio setups.
Technical Specifications
| Specification | Detail |
|---|---|
| Tuning Range | FM, MW |
| Power Output | 85 watts per channel into 8Ω (stereo) |
| Frequency Response | 10Hz to 30kHz |
| Total Harmonic Distortion | 0.1% |
| Damping Factor | 30 |
| Input Sensitivity | 4mV (mic), 2.5mV (MM), 150mV (DIN), 150mV (line) |
| Signal to Noise Ratio | 70dB (MM), 80dB (DIN), 80dB (line) |
| Channel Separation | 50dB (MM), 50dB (line) |
| Output | 150mV (line), 30mV (DIN), 0.775V (Pre out) |
| Dimensions | 540 x 182 x 397mm |
| Weight | 20.7kg |
| Year | 1975 |
Embrace the exceptional audio quality and performance of the Sansui 8080DB Stereo AM/FM Receiver, a timeless addition to any audio setup.
