110LP v2 Phono Preamplifier
Models Available For Demo: 791, 761, 250i, 280D
Dynamic Sound Quality

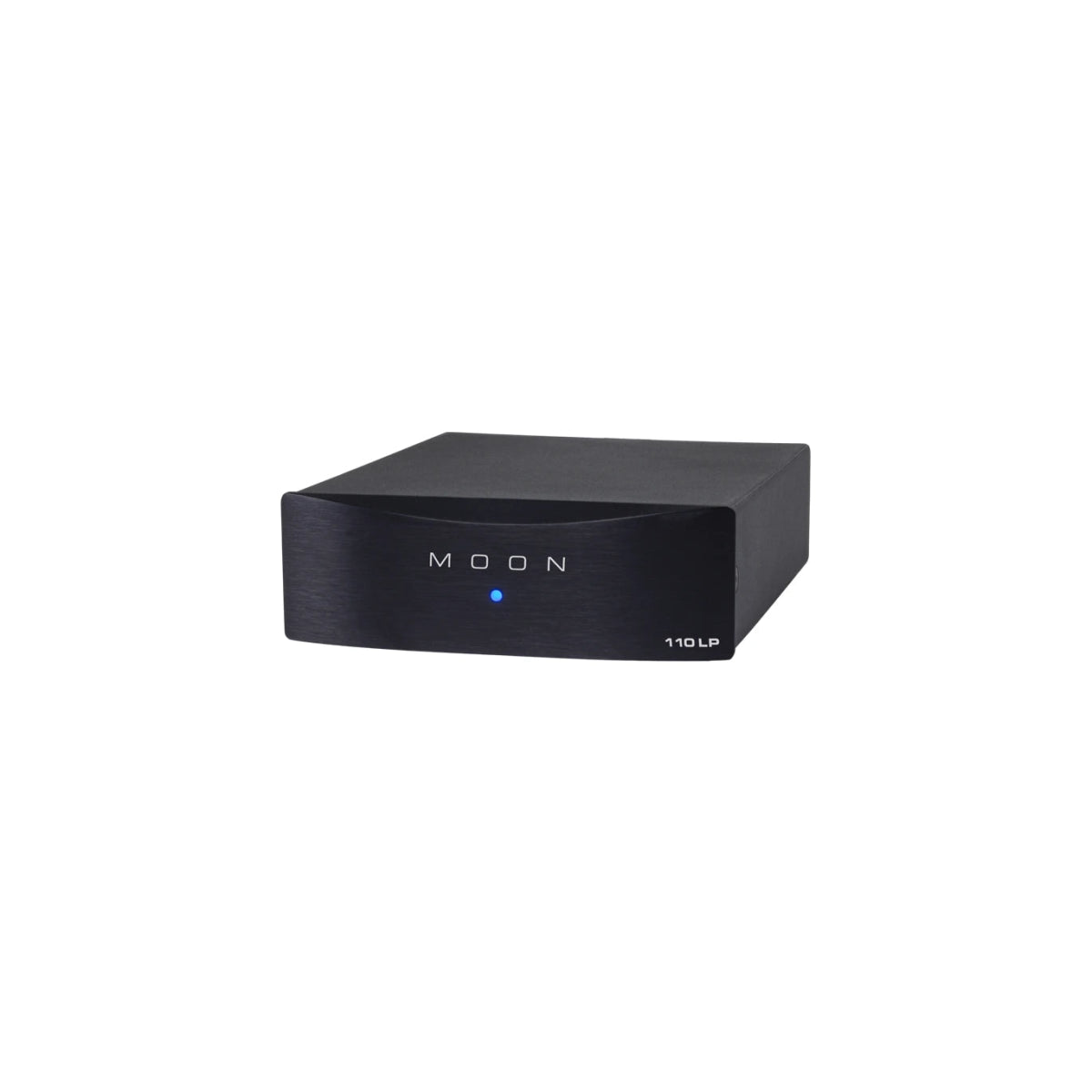

The MOON 110LP v2 Phono Preamplifier is designed with award-winning technologies, offering a sonic experience that is fast, tight, and extended.
- $600.00
- $600.00
- Unit price
- per
Manufacturer Guaranteed 10 Year Warranty!
Dynamic Sound Quality
The MOON 110LP v2 Phono Preamplifier is designed with award-winning technologies, offering a sonic experience that is fast, tight, and extended. It provides an open, natural midrange and airy extended high frequencies, thanks to an improved power supply and an enhanced circuit layout. The result is a dynamic sound quality that outperforms other entry-level phono preamps.
Convenience and Flexibility

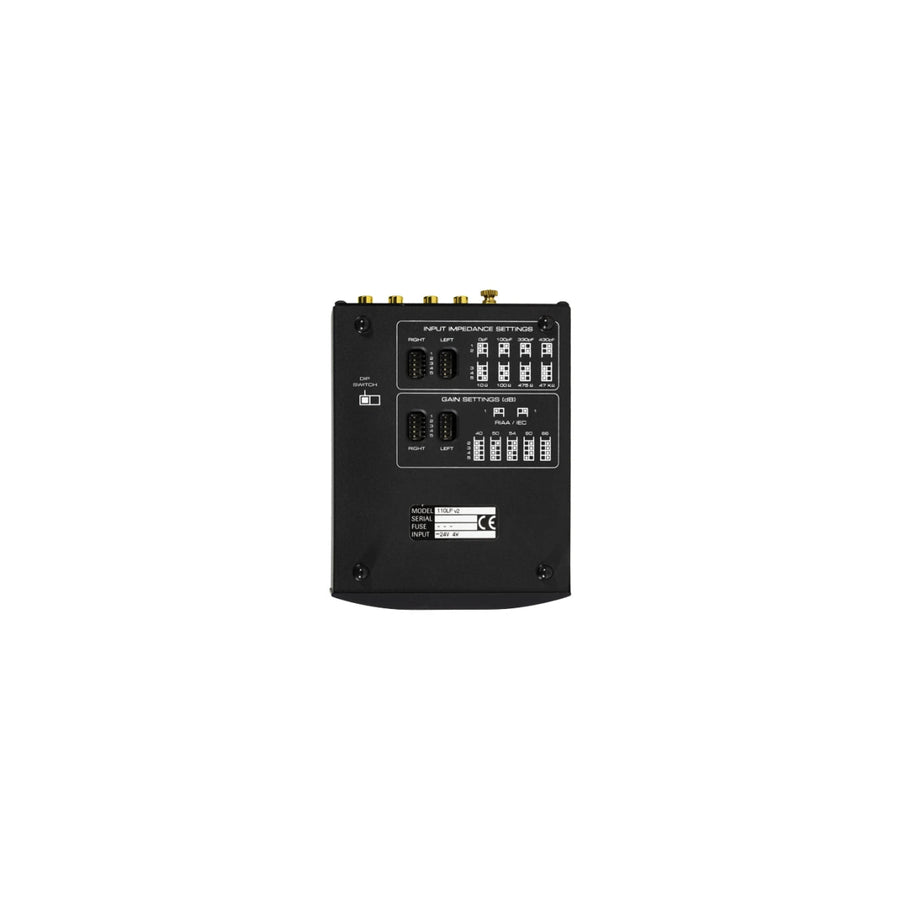

The MOON 110LP v2 is not just about superior sound quality; it also offers convenience and flexibility. With easy under-unit configuration, you can adjust gain, curve, resistance, and capacitance in just a few seconds. This means that even if you replace your cartridge, the MOON 110LP v2 will remain relevant and ready to deliver exceptional sound.
Technical Specifications
| Specification | Description |
|---|---|
| Circuit Layout | Mirror-image symmetrical circuit |
| Single-ended inputs | 1 pair (RCA) |
| Input Impedance - Adjustable | 10Ω / 100Ω / 475Ω / 47kΩ |
| Input Capacitance - Adjustable | 0 / 100pF / 330pF / 430pF |
| Gain Level - Adjustable | 40dB / 50dB / 54dB / 60dB / 66dB |
| Curve | IEC / RIAA |
| Signal-to-noise Ratio (full scale @40 dB gain) | 104 dB |
| Signal-to-noise Ratio (full scale @60 dB gain) | 87 dB |
| Frequency Response | 20Hz - 20kHz (± 0.5dB) |
| Intermodulation Distortion | 0.002% |
| THD (20Hz - 20kHz) | 0.002% |
| Power Consumption @ idle | 2 W |
| AC Power Requirements | 100-240V 50Hz / 60 Hz |
| Shipping Weight | 3.3 lb / 1.5 kg |
| Dimensions (W x H x D) | 5.0 x 1.65 x 6.5 in / 12.7 x 4.2 x 16.5 cm |
Experience the MOON 110LP v2 Phono Preamplifier - a fabulous piece of equipment that offers no compromise on design, construction, or sound. Upgrade your sound system today and immerse yourself in the world of high-quality, dynamic, and convenient audio reproduction.
