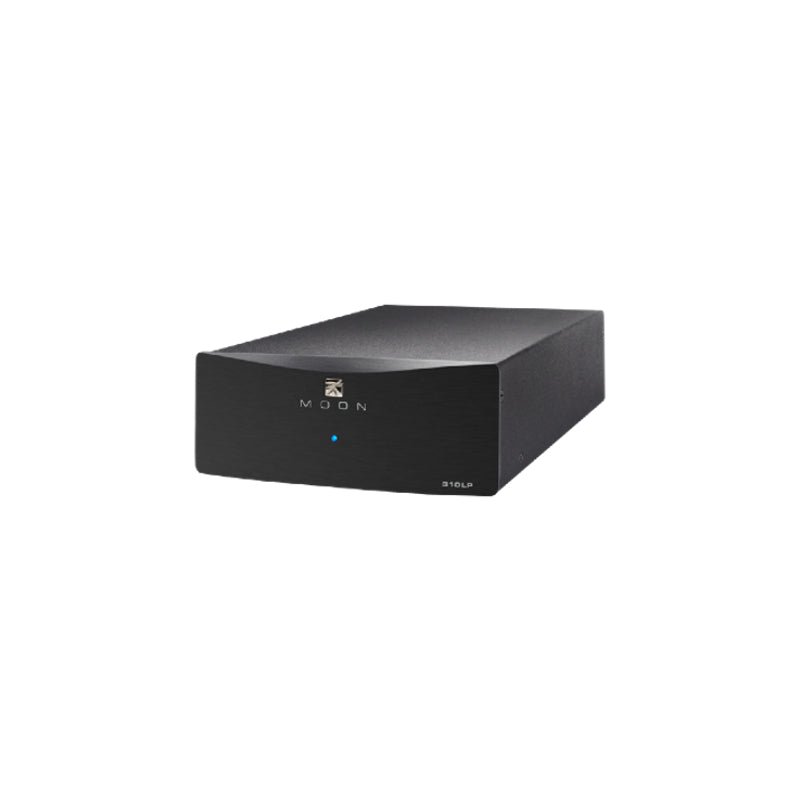

Moon 310LP Phono Preamp

The MOON 310LP Phono Preamp is a premium audio component that offers exceptional sonics and ultra-low noise floor, designed to take your vinyl listening experience to the next level. It's a perfect match for audiophiles and music lovers who demand the best from their vinyl records.

One of the most striking features of the 310LP is its cutting-edge technologies and design enhancements, which provide a significant upgrade over the original version, while remaining housed in a stylish half-width chassis. The 310LP has an attractive, sleek design that will complement any high-end audio system. The preamp offers numerous end-user adjustments for resistance loading, capacitance loading and gain level, giving you complete control over the sound of your records. Additionally, it allows users to choose from two different equalization curves: the RIAA curve and the IEC curve. This feature allows you to tailor the sound of your records to your personal preference.

The 310LP also features balanced output connectors, which allow you to take full advantage of connectivity to a balanced preamplifier or integrated amp, resulting in a significant improvement in noise floor, dynamics and midrange transparency. This makes it an excellent match for systems that feature high-quality, balanced audio cables.

To further enhance the performance of the 310LP, it has a large isolated power supply on a separate circuit board using a toroidal transformer, 2 stages of voltage regulation, custom MOON electrolytic capacitors and 4-layer printed circuit boards with pure copper tracings. All of these features work together to ensure that the audio signal is as clean and pure as possible. The symmetrical circuit design and accurate matching of high-quality electronic components make the 310LP one of the most precise and accurate phono preamps available.

The 310LP has exceptional technical specifications such as S/N Ratio of 110dBr, Frequency Response of 20Hz-20kHz, Crosstalk of -100dB, Output Impedance of 50Ω, THD of 0.001% and Intermodulation distortion of 0.009%. These specifications translate to a sound that is incredibly detailed, clear and dynamic, with a deep and tight bass, rich mids, and sparkling highs.

The MOON 310LP Phono Preamp is a high-performance, versatile, and ultra-flexible phono preamp that will elevate your vinyl listening experience to the next level.

Key Features

• Large isolated power supply on a separate circuit board using a toroidal transformer with 2 stages of voltage regulation.
• Single-ended RCA and Balanced XLR output connectors.
• Can be driven with a compatible external power supply.
• Power supply voltage regulation includes i 2 DCf (Indepen dent Inductive DC Filtering); 1 inductor for each and every IC in the audio circuit’s signal path – 2 stages in all.
• Power supply features custom MOON electrolytic capacitors.
• 4-Layer printed circuit boards with pure copper tracings for a much shorter signal path; this results in greater sonic accuracy and dramatically improved signal-to-noise ratio.
• A symmetrical circuit design with accurate matching of the very finest high quality electronic components.
