AT-LP120XBT-USB Direct-Drive Turntable (Analog, Wireless & USB)

This fully manual turntable is modeled after the AT-LP120XUSB but adds the convenience of Bluetooth® wireless connectivity to the existing analog and USB outputs.

$449.00
$449.00
Choose with confidence

Check the model’s phono preamp, outputs and operating features against your amplifier or powered speakers. Features vary by model.

Ask our Richmond team

In-stock orders normally ship the same day when placed by 1 PM ET weekdays or noon Saturday, subject to holiday exceptions.

Product details

Compatibility & setup

The factory-fitted cartridge is AT-VM95E. Its elliptical stylus can be replaced with the green AT-VMN95E. Other stereo VM95 styli are compatible options. Confirm the fitted cartridge first if your turntable has been modified.

Confirm the cartridge actually fitted to your turntable. Follow the replacement stylus instructions and required tracking force; physical fit alone does not make every stylus suitable for every record or use.

Matching replacement stylus
Other stylus options

Alternative profiles can change playback and setup requirements. Match both the cartridge body and the record format.

Compatible accessories

Verified for this model using manufacturer information. Follow the installation and setup instructions for each item.

Manufacturer accessory-fit reference
Description

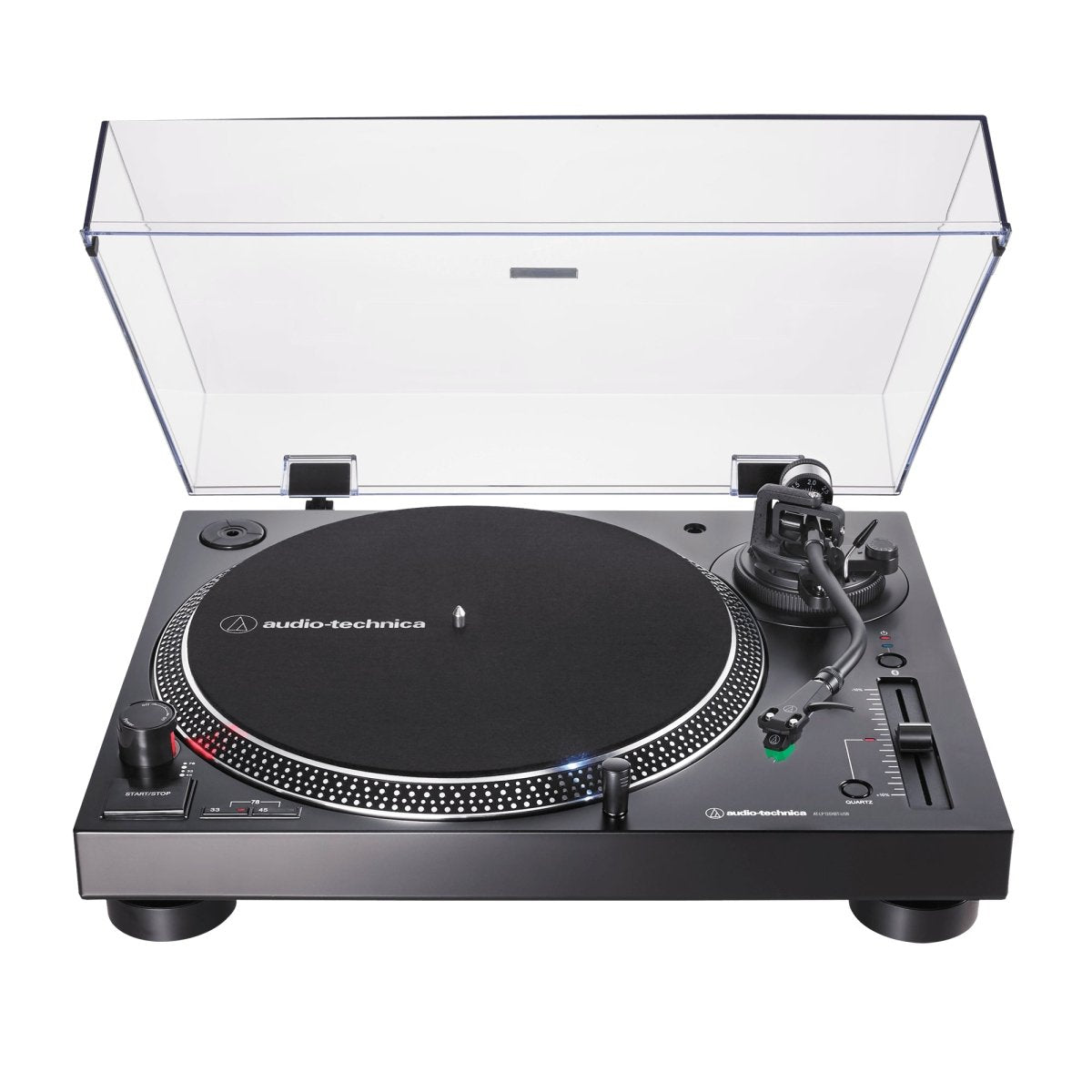

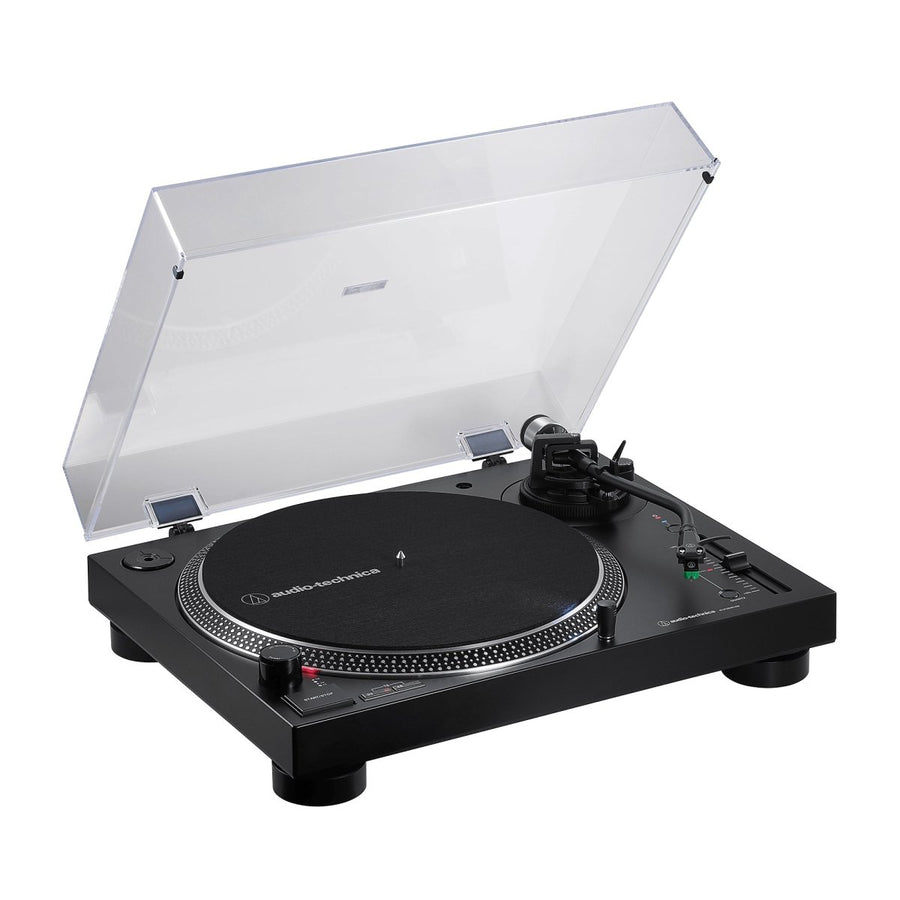

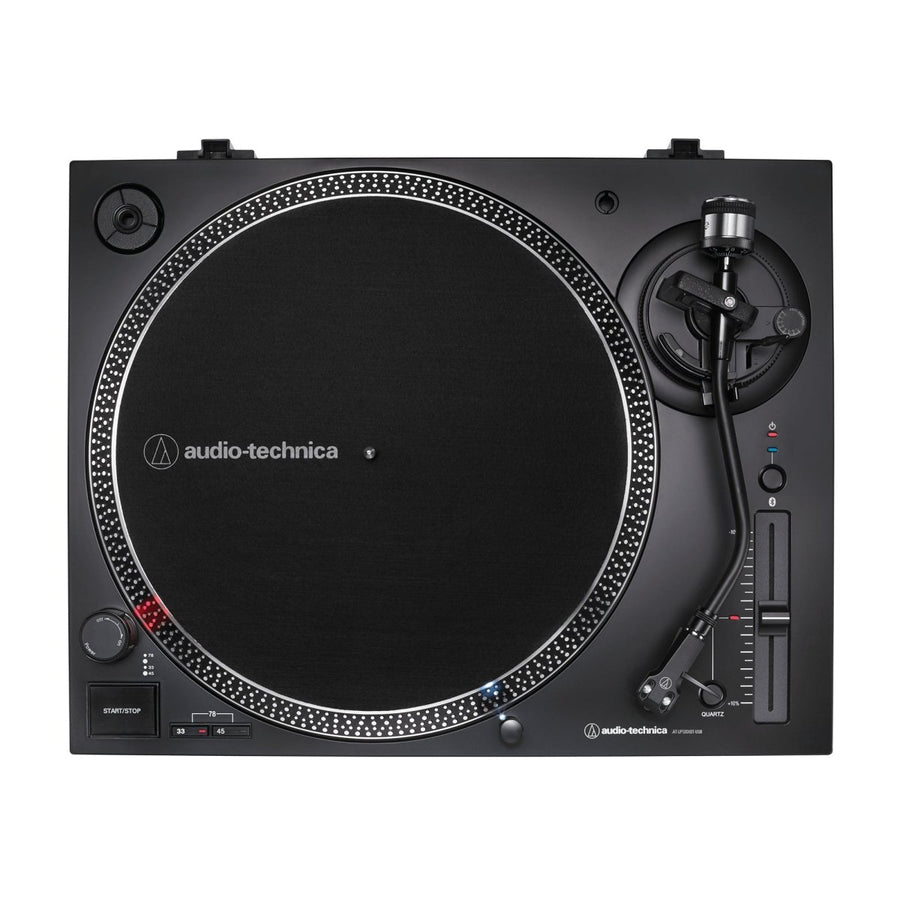

AT-LP120XBT-USB

This fully manual turntable is modeled after the AT-LP120XUSB but adds the convenience of Bluetooth® wireless connectivity to the existing analog and USB outputs.

Featuring a specially designed DC servo direct-drive motor and adjustable dynamic anti-skate control, the AT-LP120XBT-USB plays 33-1/3, 45, and 78 RPM records and outputs the high-fidelity audio to the device of your choice. Use the included RCA output cable along with the built-in selectable phono preamp to connect to your home stereo or powered speakers. Use the USB cable to connect to your computer and then download the free Mac- and PC-compatible Audacity recording software, or software of your choice, to start converting your records to digital audio files. Or use the Bluetooth wireless technology to pair the turntable with wireless speakers, headphones or other devices, including those that support the high-quality Qualcomm® aptX™ audio codec.

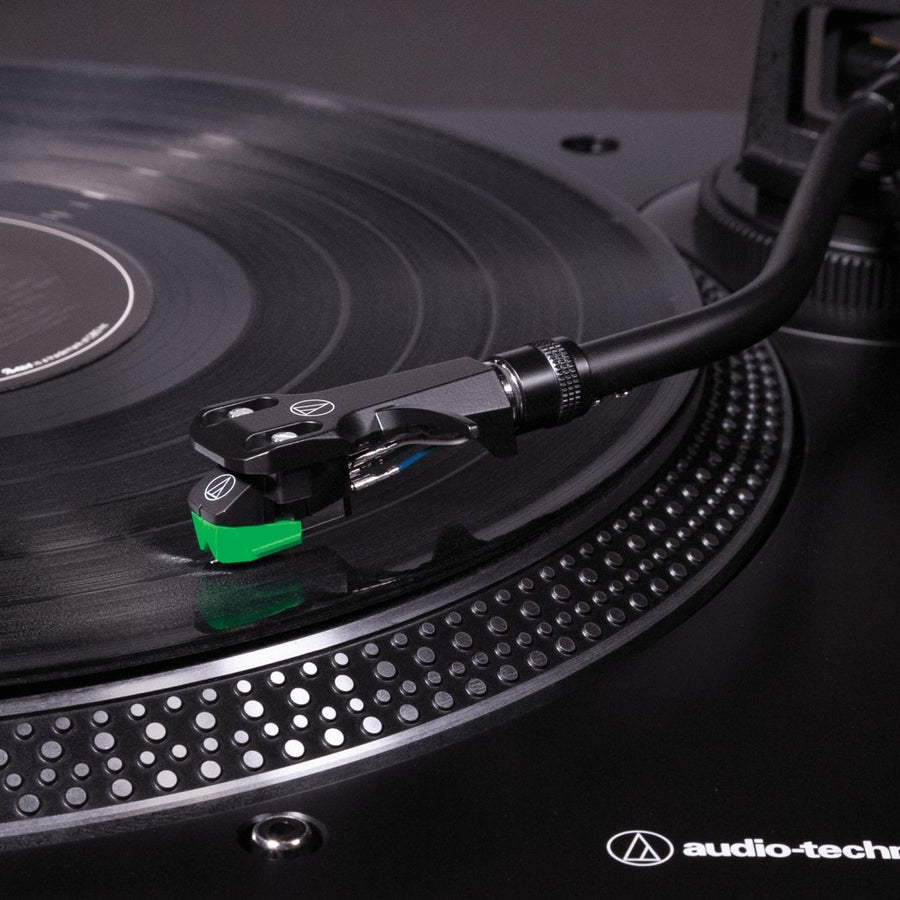

The turntable also features an S-shaped tonearm with adjustable tracking force and an AT-HS6 universal ½"- mount headshell with an AT-VM95E Dual Moving Magnet™ phono cartridge. Audio-Technica has been a leader in phono cartridge design for more than 50 years, and that expertise shows in the versatile, high-performance AT-VM95E. The cartridge comes with a 0.3 x 0.7 mil elliptical stylus, but is also compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application.

Additional professional features include a die-cast aluminum platter with felt mat; a start/stop button; selectable high-accuracy quartz-controlled pitch lock and pitch change slider control with +/-10% adjustment range; a stroboscopic platter with speed indicator; a removable plug-type stylus target light; external power supply; and a removable hinged dust cover.

Technical Specs


Turntable
Type 3-speed, fully manual operation
Motor DC servo motor
Drive Method Direct drive
Speeds 33-1/3 RPM, 45 RPM, 78 RPM
Turntable Platter Die-cast aluminum
Starting Torque >1.0 kgf.cm
Braking System Electronic brake
Wow and Flutter <0.2% (WTD) @ 3 kHz (JIS)
Signal-to-Noise Ratio >50 dB
Output Level Pre-amp “PHONO”: 4 mV nominal at 1 kHz, 5 cm/sec
Pre-amp “LINE”: 240 mV nominal at 1 kHz, 5 cm/sec
Phono Pre-Amp Gain 36 dB nominal, RIAA equalized
USB Function A/D, D/A – 16-bit/44.1 kHz or 48 kHz USB selectable; Computer interface – USB 2.0 Compliant Windows 7 or above, or MAC OS X or above
Power Supply Requirements 100 to 240 V, 50/60 Hz, 1.5A Max
Power Consumption 2.75 W
Dimensions 452.0 mm (17.80") W x 352.0 mm (13.86") D x 141.6 mm (5.57") H
Weight 8 kg (17.6 lbs.), without dust cover

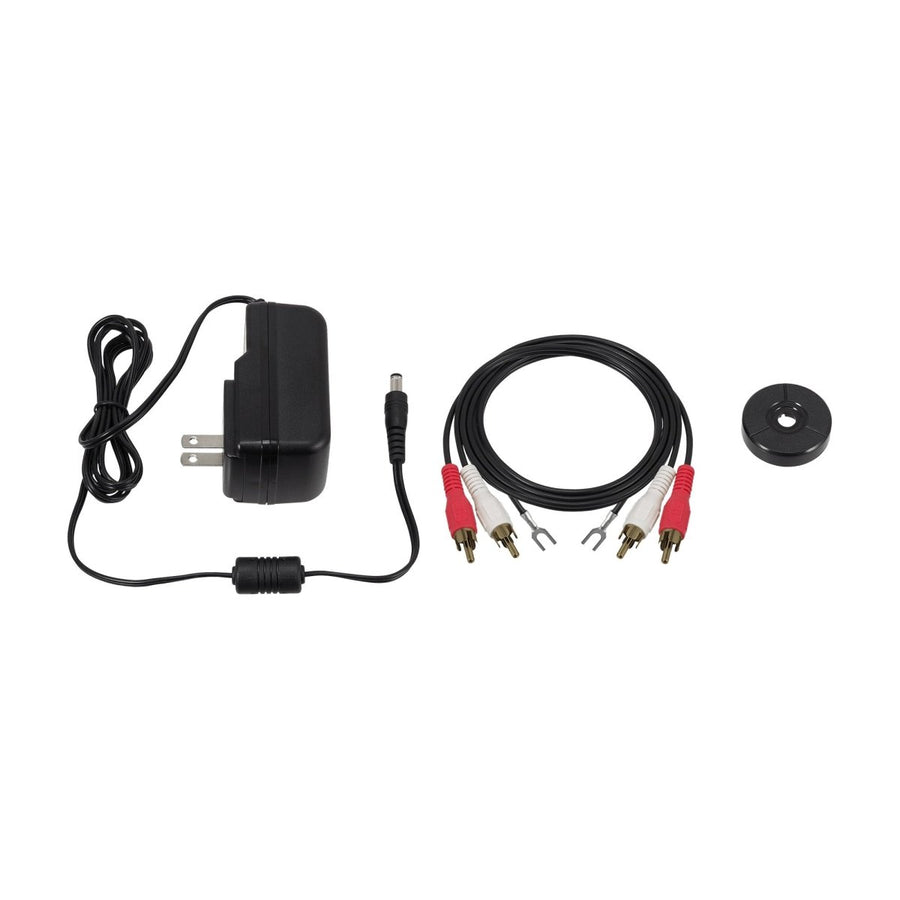

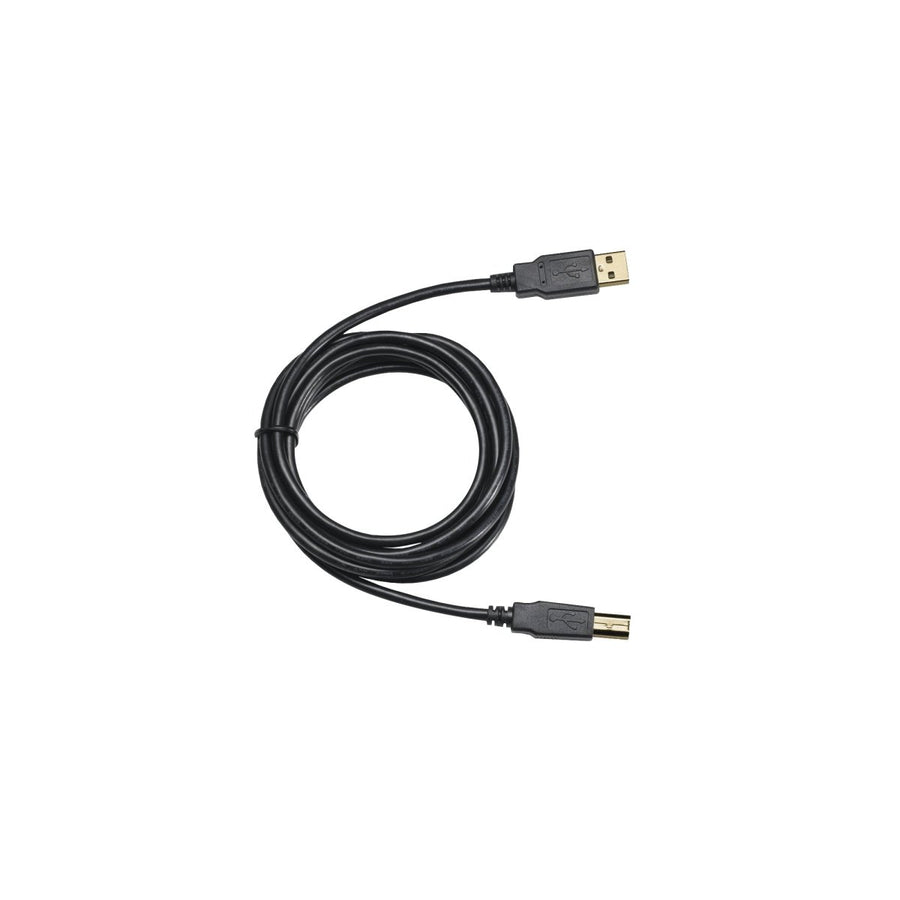

Accessories Included AT-VM95E phono cartridge; AT-HS6 headshell; 1.9 m (6.2') USB cable; dual RCA (male) to dual RCA (male) cable with ground wire; counterweight; felt mat; dust cover; 45 RPM adapter; plug-type stylus target light
Tonearm Type Balanced S-shaped tonearm with detachable headshell
Effective Arm Length 230.5 mm
Overhang 16 mm
Tracking Error Angle Less than 3 degrees
Applicable Cartridge Weight 3.5-8.5 g
Anti-skating Range 0-4 g
Replacement Stylus AT-VMN95E
Communication System Bluetooth Version 5.0
Maximum Communication Range Line of sight - approx. 10 m (33')
Compatible Bluetooth Profile A2DP
Support Codec SBC, Qualcomm® aptX™ audio
Specifications
What is supplied
Turntable with cartridge
Stylus family
VM95
Cartridge mounting
Half-inch
Stylus profile
Bonded elliptical
Supplied stylus record format
33/45 rpm microgroove
Replacement stylus model
AT-VMN95E
Understanding VM95 model names

The model name tells you whether you are buying a cartridge, a replacement stylus, or a cartridge with a headshell.

  • AT-VM95: a complete cartridge. The letters that follow identify its stylus profile.
  • AT-VMN95: a replacement stylus assembly for a VM95 cartridge body.
  • /H: the cartridge is supplied pre-mounted on a headshell. Check the tonearm connector, weight range and alignment.

C is conical; E is bonded elliptical; EN is nude elliptical; ML is MicroLine; SH is Shibata. These profiles have different playback and setup characteristics.

SP is for wide-groove 78 rpm shellac. It is not the choice for ordinary LPs or 45s, even though the stylus fits the same VM95 body.
