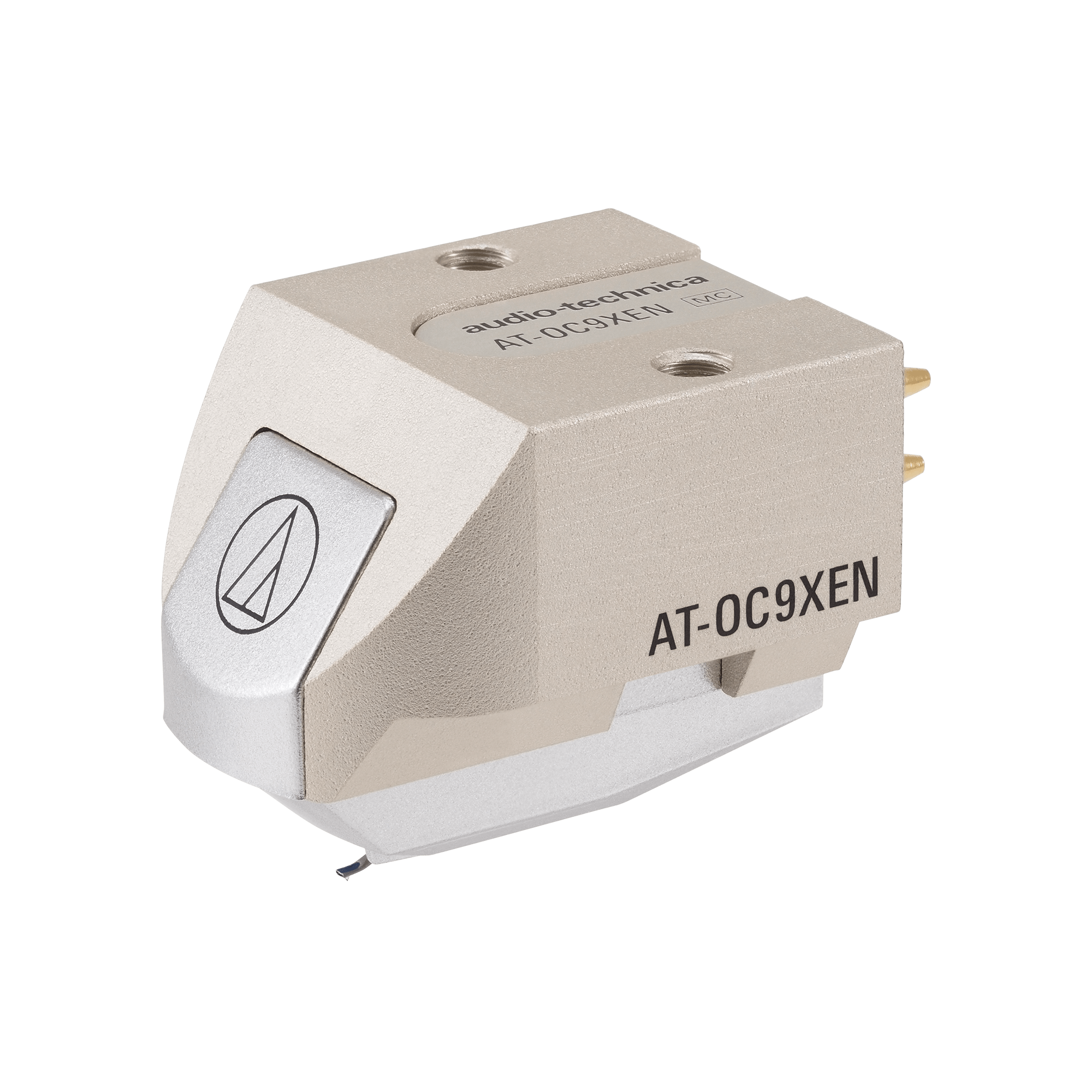

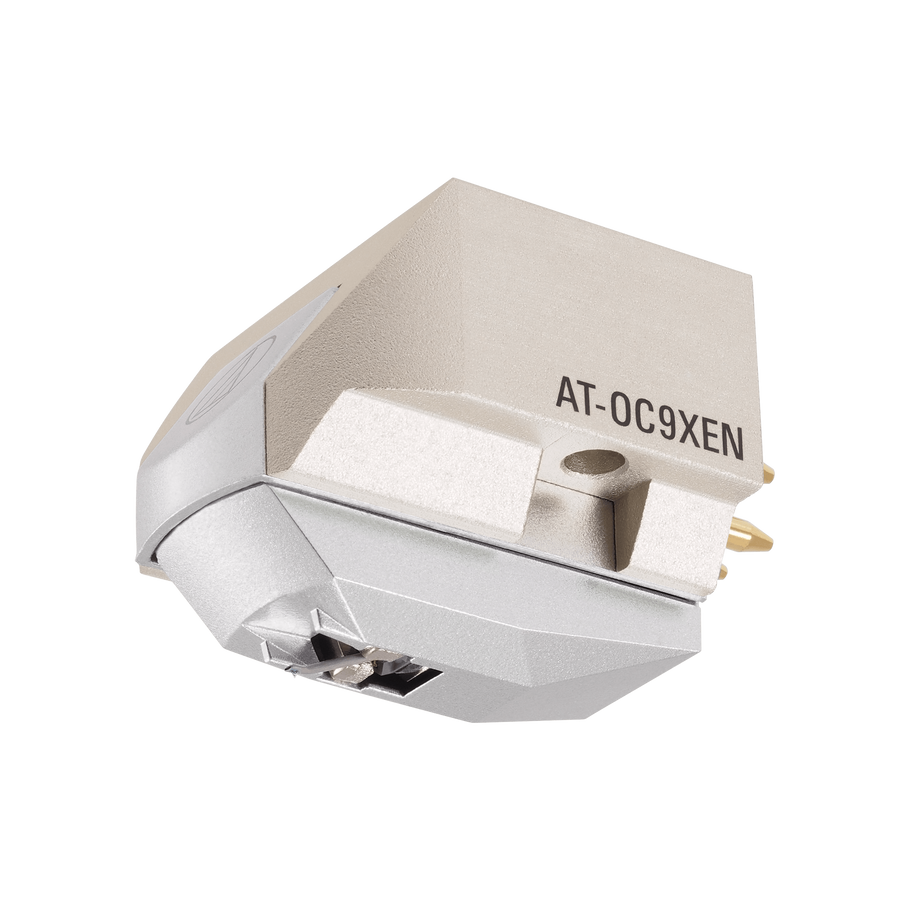

AT-OC9XEN Dual Moving Coil Cartridge
Nude elliptical stylus · Moving coil cartridge
- $379.00
- $379.00
- Unit price
- per
Order within
ⓘ
Cutoff: 1 PM ET Monday–Friday; noon Saturday. No shipping Sundays or federal holidays. Exceptions may apply.Choose with confidence
Check your tonearm mounting, cartridge weight and phono input before ordering. A headshell combo still needs a compatible tonearm.
Ask our Richmond teamIn-stock orders normally ship the same day when placed by 1 PM ET weekdays or noon Saturday, subject to holiday exceptions.
Product details
Compatibility & setup
This moving-coil cartridge has no user-replaceable stylus assembly. VM95, VM and P-mount styli will not fit. Contact Audio Exchange about manufacturer service or exchange options and check current eligibility and lead times; a complete cartridge change also requires appropriate phono gain and loading.
Confirm the cartridge actually fitted to your turntable. Follow the replacement stylus instructions and required tracking force; physical fit alone does not make every stylus suitable for every record or use.
Products to compare
Compare features and system requirements. Each product needs its own compatibility check.
- AT-OC9XSL Dual Moving Coil Phono Cartridge Out of stock
Description
Experience unparalleled vinyl playback with the Audio-Technica AT-OC9XEN Dual Moving Coil Cartridge. A proud member of Audio-Technica's esteemed OC9 series, this cartridge is engineered for audiophiles seeking exceptional detail, clarity, and channel separation.
Key Features
- Dual Moving Coil Design: Independent coils for left and right channels ensure outstanding channel separation and precise stereo imaging.
- Nude Elliptical Stylus: The low-mass nude elliptical stylus, mounted on an aluminum cantilever, offers accurate tracking and reduced distortion.
- PCOCC Coils: Pure Copper by Ohno Continuous Casting (PCOCC) coils are arranged in a reverse V-shaped formation, minimizing distortion and enhancing signal purity.
- Rigid Aluminum Body: The aluminum housing minimizes unwanted vibrations, reducing resonance for superior audio reproduction.
- Easy Installation: Pre-threaded cartridge body allows for straightforward mounting with just two screws—no nuts required.
Technical Specifications
| Specification | Details |
|---|---|
| Type | Dual Moving Coil |
| Mounting | 1/2" Centers (Threaded Inserts) |
| Frequency Response | 20 – 30,000 Hz |
| Channel Separation | 25 dB (1 kHz) |
| Output Voltage | 0.35 mV (1 kHz, 5 cm/sec) |
| Output Channel Balance | 1.5 dB (1 kHz) |
| Vertical Tracking Angle | 20° |
| Tracking Force Range | 1.8 – 2.2 g (2.0 g standard) |
| Stylus Shape | Nude Elliptical |
| Stylus Size | 0.3 x 0.7 mil |
| Stylus Construction | Nude Square Shank |
| Cantilever | Aluminum Pipe |
| Coil Impedance | 12 ohms (1 kHz) |
| DC Resistance | 12 ohms |
| Coil Inductance | 25 mH (1 kHz) |
| Recommended Load Impedance | ≥100 ohms (when head amplifier connected) |
| Static Compliance | 20 x 10⁻⁶ cm/dyne |
| Dynamic Compliance | 9 x 10⁻⁶ cm/dyne (100 Hz) |
| Cartridge Weight | 7.6 g |
| Dimensions (W x H x D) | 16.8 x 17.3 x 25.7 mm |
| Body Material | Aluminum |
| Terminal Pins | Brass |
Elevate your vinyl listening experience with the Audio-Technica AT-OC9XEN—where precision engineering meets exceptional sound quality.
Specifications
- What is supplied
- Cartridge only
- Stylus family
- OC9X
- Cartridge mounting
- Half-inch
- Cartridge technology
- Moving coil
- Stylus profile
- Nude elliptical
- Record format
- 33/45 rpm microgroove
