AT-VM95E/H Headshell/Cartridge Combo Kit
Bonded elliptical stylus · Moving magnet cartridge
- $109.00
- $109.00
- Unit price
- per
Order within
ⓘ
Cutoff: 1 PM ET Monday–Friday; noon Saturday. No shipping Sundays or federal holidays. Exceptions may apply.Choose with confidence
Check your tonearm mounting, cartridge weight and phono input before ordering. A headshell combo still needs a compatible tonearm.
Ask our Richmond teamIn-stock orders normally ship the same day when placed by 1 PM ET weekdays or noon Saturday, subject to holiday exceptions.
Product details
Compatibility & setup
The matching stylus model is AT-VMN95E. VM95 stylus assemblies can be changed without replacing the cartridge body. Other VM95 profiles are compatible alternatives, but change the stylus specification. VM95 styli do not fit AT95E/AT95EX or the separate VM500/700 family. The /H version includes a headshell; its cartridge uses the same replacement stylus as the cartridge-only version.
Confirm the cartridge actually fitted to your turntable. Follow the replacement stylus instructions and required tracking force; physical fit alone does not make every stylus suitable for every record or use.
Matching replacement stylus
Other configurations
Complete cartridges and headshell versions are separate products. Check the tonearm connector, weight and setup requirements before choosing.
- Matching cartridge / body AT-VM95E Dual Moving Magnet Cartridge In stock
Description
Audio-Technica AT-VM95E/H Headshell/Cartridge Combo Kit: Precision and Performance

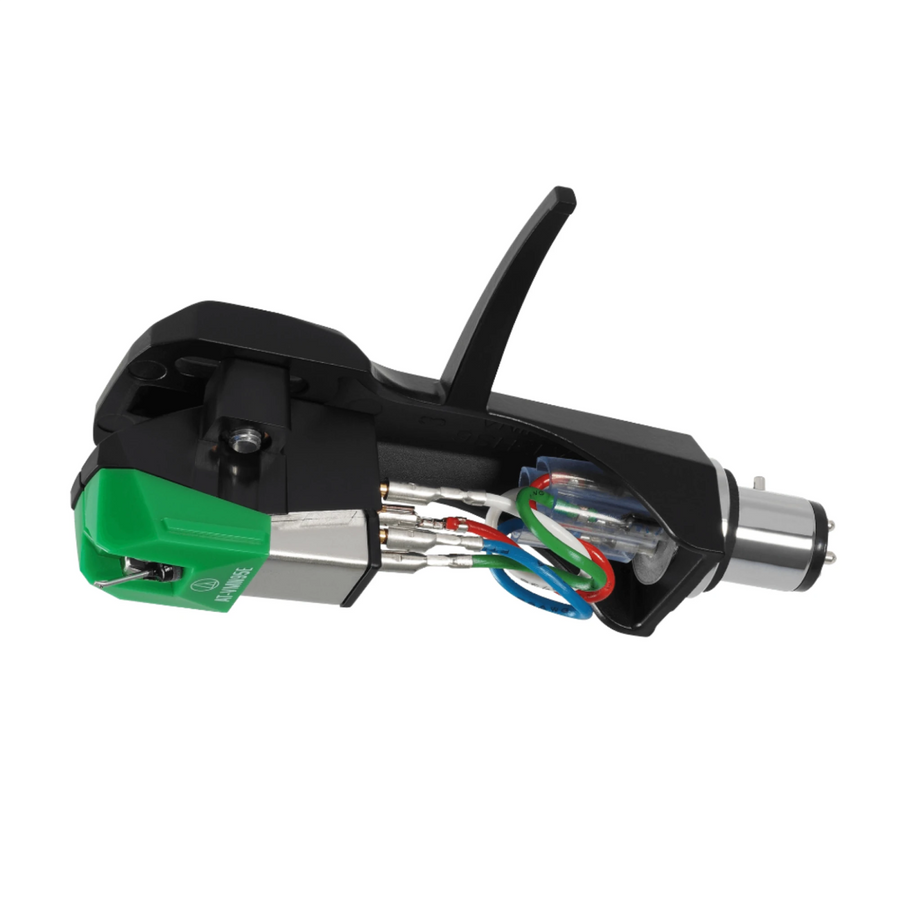

Experience the perfect blend of precision and performance with the Audio-Technica AT-VM95E/H Headshell/Cartridge Combo Kit. This kit includes the renowned AT-VM95E dual moving magnet cartridge, premounted on the durable AT-HS6BK headshell, ensuring easy setup and outstanding sound quality. Whether you're a seasoned audiophile or a vinyl enthusiast, the AT-VM95E/H offers an exceptional listening experience with minimal distortion and superior channel separation.
Engineered for accurate sound reproduction, the AT-VM95E/H features a 0.3 x 0.7 mil elliptical stylus and an aluminum pipe cantilever. These components deliver detailed audio and a wide frequency response, making every record come to life with clarity and richness. The half-inch mount compatibility ensures easy installation on a variety of turntables.
Key Features
- Dual moving magnet cartridge premounted on the AT-HS6BK headshell
- 0.3 x 0.7 mil elliptical stylus for detailed sound reproduction
- High output voltage of 4.0 mV for dynamic audio performance
- Exceptional channel separation of 20 dB at 1 kHz for clear stereo imaging
- Wide frequency response of 20-22,000 Hz
- Easy installation with half-inch mount compatibility
Technical Specifications
| Specification | Details |
|---|---|
| Frequency Response | 20-22,000 Hz |
| Channel Separation | 20 dB at 1 kHz |
| Vertical Tracking Angle | 23° |
| Vertical Tracking Force | 1.8-2.2 g (2.0 g standard) |
| Stylus Construction | Bonded round shank |
| Recommended Load Impedance | 47,000 ohms |
| Coil Impedance | 3.3 k ohms (1 kHz) |
| DC Resistance | 485 ohms |
| Coil Inductance | 550 mH (1 kHz) |
| Output Voltage | 4.0 mV (1 kHz, 5 cm/sec.) |
| Output Channel Balance | 2.0 dB (1 kHz) |
| Stylus Shape | 0.3 x 0.7 mil elliptical |
| Cantilever | Aluminum pipe |
| Static Compliance | 17 x 10 – 6 cm / dyne |
| Dynamic Compliance | 7 x 10 – 6 cm / dyne (100 Hz) |
| Mounting | Half-inch |
| Dimensions | Cartridge 17.2 mm (0.68") H × 18.9 mm (0.74") W × 28.3 mm (1.20") D; Cartridge & Headshell 21.2 mm (0.83") H × 21.4 mm (0.84") W × 62.4 mm (2.46") D |
| Accessories Included | Two 11 mm installation screws, two 8 mm installation screws, two washers |
| Model | AT-VM95E/H |
| Mounting Feature | Half-inch mount |
| Recommended Load Capacitance | 100 to 200 pF |
| Replacement Stylus | AT-VMN95E |
| Stylus Size | 0.3 x 0.7 mil |
| Type | VM Stereo Dual Magnet |
| Weight | Cartridge 6.1 g (0.22 oz); Cartridge & Headshell 15.5 g (0.55 oz) |
| Wire Used for Coil | T.P. Copper |
Pre-mounted Cartridge Installation
-
Preparing the Headshell/Cartridge: Before installation, ensure the stylus cover is securely in place. Handle the headshell and cartridge carefully as they are very fragile, and damage can often be costly.
-
Mounting the Headshell/Cartridge: Attach the headshell to the tonearm using the supplied hardware. Tighten the headshell nut securely, but avoid overtightening to prevent damage.
-
Setting Tracking Weight and Bias: Initially, set the tracking weight for balance. Adjust the tracking weight to the recommended range of 1.8-2.2g (2.0g standard) to ensure optimal performance and minimal record wear. Set the anti-skate or bias to match the tracking force.
-
Aligning the Cartridge: Use a tracking alignment gauge to ensure the cartridge is properly aligned. Adjust the cartridge position as needed to minimize distortion and achieve the best sound quality.
-
Final Adjustments: Once aligned, double-check the tracking weight and bias settings. Fine-tune the adjustments to achieve the best possible audio performance. Ensure that all connections are secure and that the tonearm is balanced correctly.
-
Tonearm Height Adjustment: If possible, adjust the tonearm height to ensure it is parallel with the record surface during playback. This adjustment can help optimize sound quality based on the specific design of the headshell and cartridge.
Specifications
- What is supplied
- Headshell combination
- Stylus family
- VM95
- Cartridge mounting
- Half-inch
- Cartridge technology
- Moving magnet
- Stylus profile
- Bonded elliptical
- Record format
- 33/45 rpm microgroove
- Replacement stylus model
- AT-VMN95E
Understanding VM95 model names
The model name tells you whether you are buying a cartridge, a replacement stylus, or a cartridge with a headshell.
- AT-VM95: a complete cartridge. The letters that follow identify its stylus profile.
- AT-VMN95: a replacement stylus assembly for a VM95 cartridge body.
- /H: the cartridge is supplied pre-mounted on a headshell. Check the tonearm connector, weight range and alignment.
C is conical; E is bonded elliptical; EN is nude elliptical; ML is MicroLine; SH is Shibata. These profiles have different playback and setup characteristics.
SP is for wide-groove 78 rpm shellac. It is not the choice for ordinary LPs or 45s, even though the stylus fits the same VM95 body.
