VM520EB Dual Moving Magnet Cartridge

Bonded elliptical stylus · Moving magnet cartridge

$135.00
$135.00
Choose with confidence

Check your tonearm mounting, cartridge weight and phono input before ordering. A headshell combo still needs a compatible tonearm.

Ask our Richmond team

In-stock orders normally ship the same day when placed by 1 PM ET weekdays or noon Saturday, subject to holiday exceptions.

Product details

Compatibility & setup

The specified replacement stylus is VMN20EB. This cartridge belongs to the VM500/600/700 family, separate from VM95. Compatible stereo VM/VMx stylus options should be selected for the exact body and record format; ask us before choosing a different profile.

Confirm the cartridge actually fitted to your turntable. Follow the replacement stylus instructions and required tracking force; physical fit alone does not make every stylus suitable for every record or use.

Matching replacement stylus
Products to compare

Compare features and system requirements. Each product needs its own compatibility check.

Description

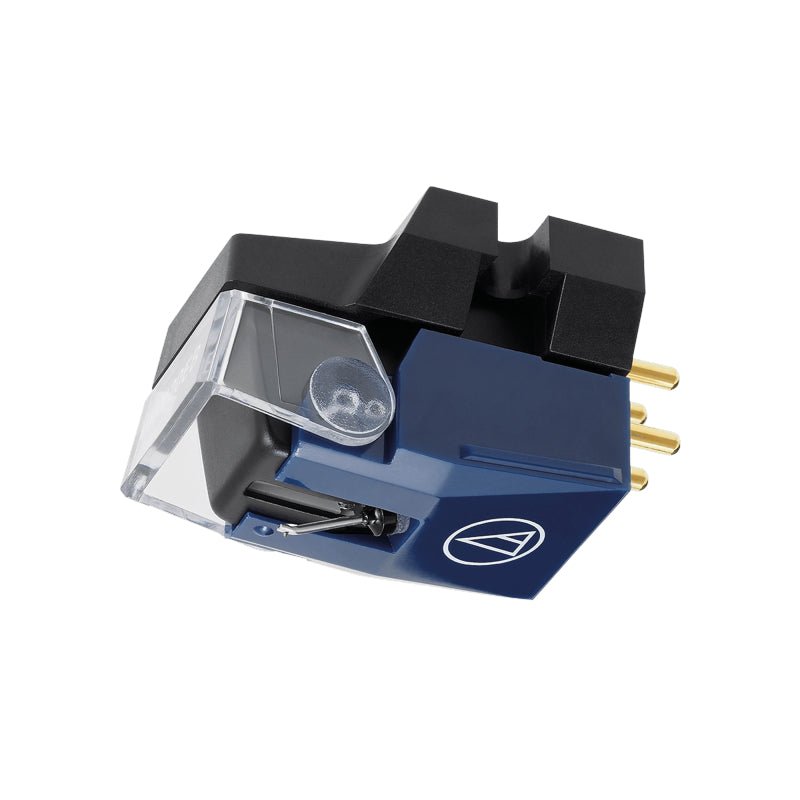

The VM520EB is part of the 500 Series in Audio-Technica’s new VM cartridge line – a line that harks back to A-T’s early days as a manufacturer primarily of high-end phono cartridges, while also incorporating today’s advanced technology.

Like all VM cartridges, the VM520EB is equipped with dual magnets that are positioned to match the left and right channels in the stereo record groove for outstanding channel separation and extended frequency response. The cartridge’s 0.3 x 0.7 mil elliptical bonded stylus tracks the record groove with high accuracy for outstanding audio reproduction. Includes mounting hardware. Para-toroidal coils improve generating efficiency and offer superb linearity since leakage of magnetic flux in this
continuous and unitized magnetic circuit is low. The permeability of the cores is also optimized through the use of laminated cores.

A permalloy center shield plate enables the effective separation of left and right channels, suppressing electrical crosstalk to below 40dB. This is similar to the actual crosstalk value found in the grooves of the record itself.

Features
• Dual magnets match the left and right channels in a stereo record groove for outstanding channel separation and extended frequency response
• 0.3 x 0.7 mil elliptical bonded stylus tracks the record groove with high accuracy for outstanding audio reproduction
• Paratoroidal coils improve generating efficiency
• Center shield plate between the left and right channels reduces crosstalk
• Durable low-resonance polymer housing
• Includes aluminum cantilever and mounting hardware

Specifications
What is supplied
Cartridge only
Stylus family
VM500 / VM600 / VM700
Cartridge mounting
Half-inch
Cartridge technology
Moving magnet
Stylus profile
Bonded elliptical
Record format
33/45 rpm microgroove
Replacement stylus model
VMN20EB
Setup & buying advice

Need help choosing an Audio-Technica turntable, cartridge, replacement stylus or headphones? Contact Audio Exchange with your equipment model and what you want to improve.

Shipping & returns

Shipping

Free shipping on orders over $99 within the contiguous US; $5.95 flat rate below $99. In-stock orders placed by 1 PM ET Monday–Friday or noon Saturday normally ship the same day. Availability and holiday exceptions apply. See our shipping policy for full details.

Returns

Most items may be returned within 30 days in like-new condition. Open-box headphones, cartridges and styli are subject to a 15% restocking fee. Opened in-ear headphones and cartridges or styli with a broken needle are non-returnable. Special-order products are non-refundable. Read our refund policy before opening or installing your purchase.
