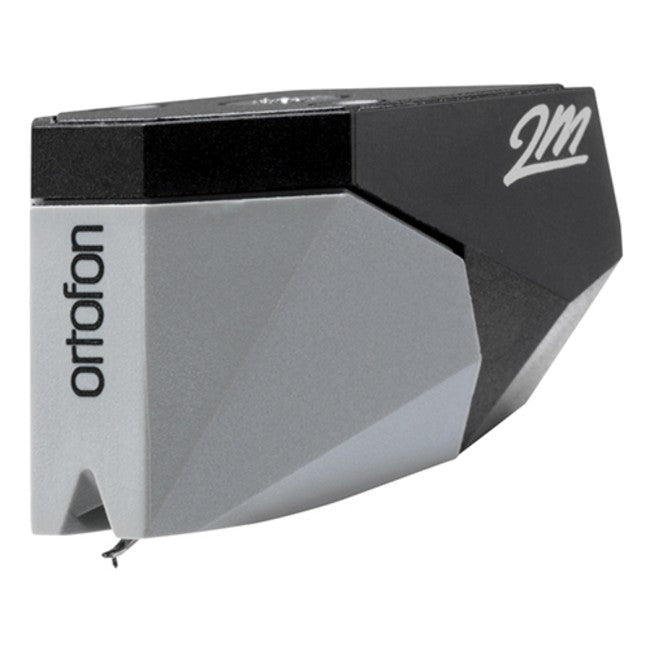

Ortofon 2M 78 Moving Magnet Phono Cartridge - Open Box
Vendor:
Ortofon
Product Type:
Turntable Cartridge
- $135.00
- $135.00
- Unit price
- per
Subtotal:
$135.00
Couldn't load pickup availability
Free Shipping on Orders Over $99
30-Day Satisfaction Guarantee
This is an Open-Box item.
Experience the true essence of vinyl records with the Ortofon 2M 78 true mono cartridge. Specifically designed for the playback of 78 rpm shellac records, this cartridge features a spherical diamond stylus tip that perfectly complements the grooves of your vintage collection. The cartridge body, crafted from Hopelex, ensures high rigidity and eliminates unwanted resonances, promising a high level of sonic accuracy. Moreover, the 2M 78 uses a strapped output to deliver the same output signal from both sets of pole pins, eliminating the need for mono-specific equipment and allowing true mono reproduction on any stereo playback system.
Key Features
- Spherical Diamond Stylus: The stylus tip, with a radius of 65 µm, is perfect for the playback of 78 rpm shellac records, offering a larger stylus profile for optimal tracking.
- High Sonic Accuracy: The improved engine provides a high level of sonic accuracy, enhancing your listening experience.
- Versatile Compatibility: Enjoy true mono reproduction on any stereo playback system without the need for mono-specific equipment.
- Easy Installation: The 2M series is designed for easy mounting, fitting most common turntables available in the market today.
Technical Specifications
| Specification | Detail |
|---|---|
| Output Voltage | 4 mV (at 1000 Hz, 5cm/sec) |
| Frequency Response | 20-20,000 Hz (+ 3 / - 1 dB) |
| Tracking Ability | 70 µm (at 315Hz) |
| Compliance | 18 µm/mN (dynamic, lateral) |
| Stylus Type | Spherical |
| Stylus Tip Radius | R 65 µm |
| Tracking Force Range | 1.6-2.0 g (16-20 mN) |
| Recommended Tracking Force | 1.8 g (18 mN) |
| Tracking Angle | 20° |
| Internal Impedance | 700 Ohm |
| Internal Inductance | 350 mH |
| Recommended Load Resistance | 47 kOhm |
| Recommended Load Capacitance | 150-300 pF |
| Cartridge Colour | Black/Grey |
| Cartridge Weight | 7.2 g (without screws) |
| Replacement Stylus Unit | 2M 78 (interchangeable with 2M Mono) |
| Stylus Lifetime | Up to 1000 hours (with proper care) |
