The McIntosh MA12000 Integrated Amplifier is a truly exceptional piece of audio engineering, offering unparalleled sound quality and versatility. With its impressive 350 Watts per channel, the MA12000 has the power to bring your favorite music to life, delivering a live, in-person performance right in your own home.

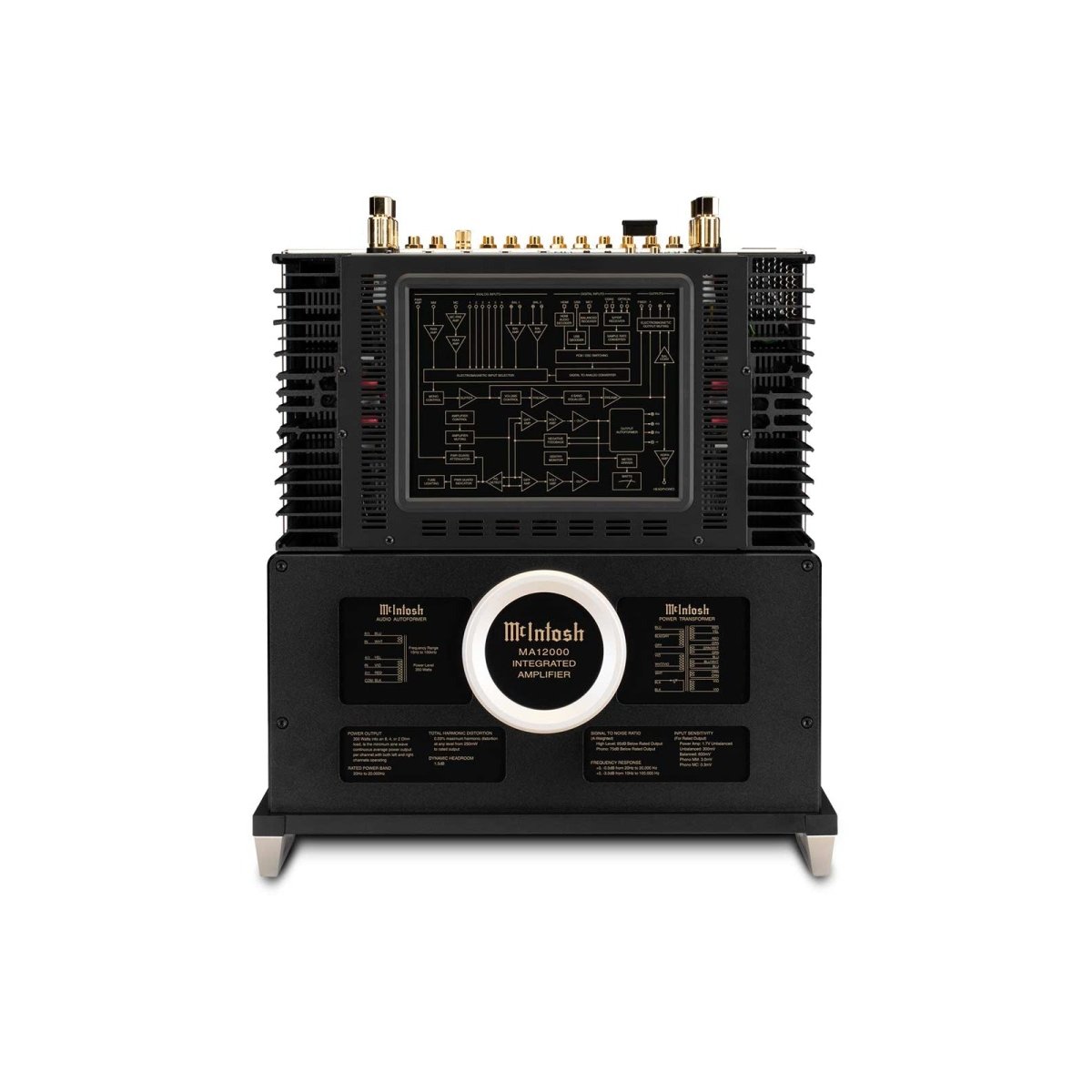

But the MA12000 is more than just brute force - it's also a technological marvel. Its Hybrid Drive™ technology combines the best of vacuum tube and solid-state amplification, giving you the warmth and richness of a tube preamplifier with the speed and power of a solid-state amplifier. This unique blend of old and new technologies results in a sound that is truly breathtaking.
In addition to its impressive amplification capabilities, the MA12000 also boasts a wide range of inputs and outputs. There are 10 analog inputs, including 2 balanced and 6 unbalanced inputs, as well as phono inputs with adjustable loading for optimal sound from your vinyl collection. For digital music, the MA12000 comes with our DA2 Digital Audio Module, which features 7 digital inputs, including coaxial, optical, and USB, as well as an HDMI (ARC) input for enhanced audio from your TV. The DA2 is powered by a next-generation, Quad Balanced, 8-channel, 32-bit DAC that ensures high-resolution digital audio playback up to DSD512 and DXD 384kHz.

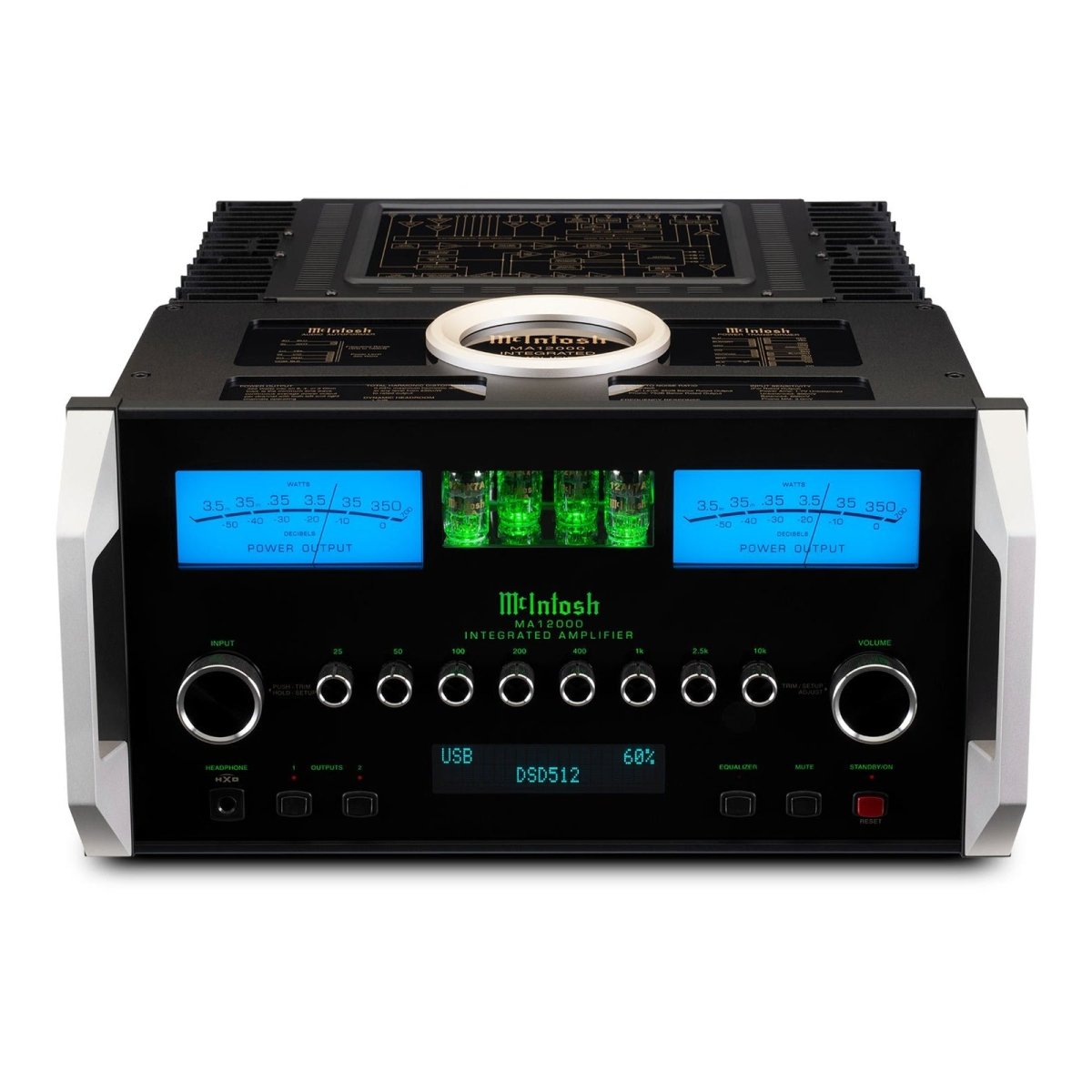

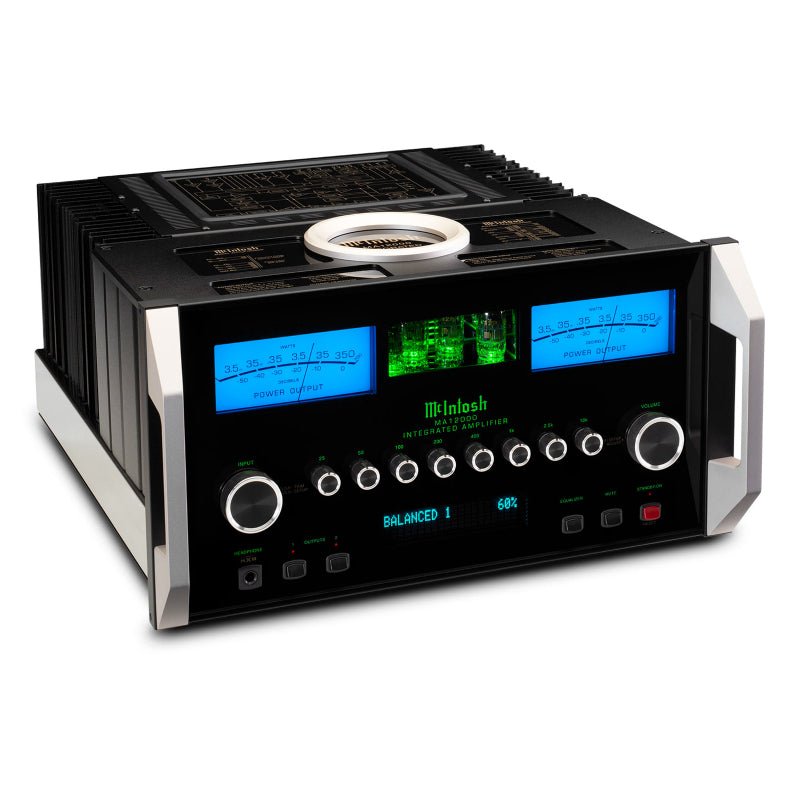

But the MA12000 isn't just about technology - it's also a work of art. Its classic McIntosh design features blue watt meters, a black glass front panel, and illuminated logo, all housed in a beautiful stainless steel chassis that's been polished to a mirror finish. The MA12000 is the perfect complement to any home stereo system, and can be paired with a wide range of turntables, CD players, music streamers, and speakers.
If you're a discerning audiophile who demands the best in sound quality and performance, the McIntosh MA12000 Integrated Amplifier is the only choice. Contact us to learn more and experience the MA12000 for yourself.
Electronic | |
---|---|
Power Output per Channel | 350 Watts |
Number of Channels | 2 |
Speaker Impedance | 2, 4, or 8 Ohms |
Rated Power Band | 20Hz to 20kHz |
Total Harmonic Distortion (Preamplifier) | 0.03% |
Total Harmonic Distortion (Amplifier) | 0.005% |
Dynamic Headroom | 1.5dB |
Frequency Response (+0, -0.5dB) | 20Hz to 20kHz |
Frequency Response (+0, -3dB) | 10Hz to 100kHz |
Sensitivity (Phono, Moving Coil) | 0.30mV |
Sensitivity (Phono, Moving Magnet) | 3.0mV |
Sensitivity (High Level, Balanced / Unbalanced) | 600mV / 300mV |
Sensitivity (Power Amp input) | 1.7V |
Signal To Noise Ratio (Moving Coil) | 75dB |
Signal To Noise Ratio (Moving Magnet) | 77dB |
Signal To Noise Ratio (High Level) | 95dB |
Signal To Noise Ratio (Power Amp input) | 114dB |
Input Impedance (Balanced / Unbalanced) | 44K / 22K |
Damping Factor | >40 |
Maximum Output (Balanced / Unbalanced) | 8V Unbalanced / 16V Balanced |

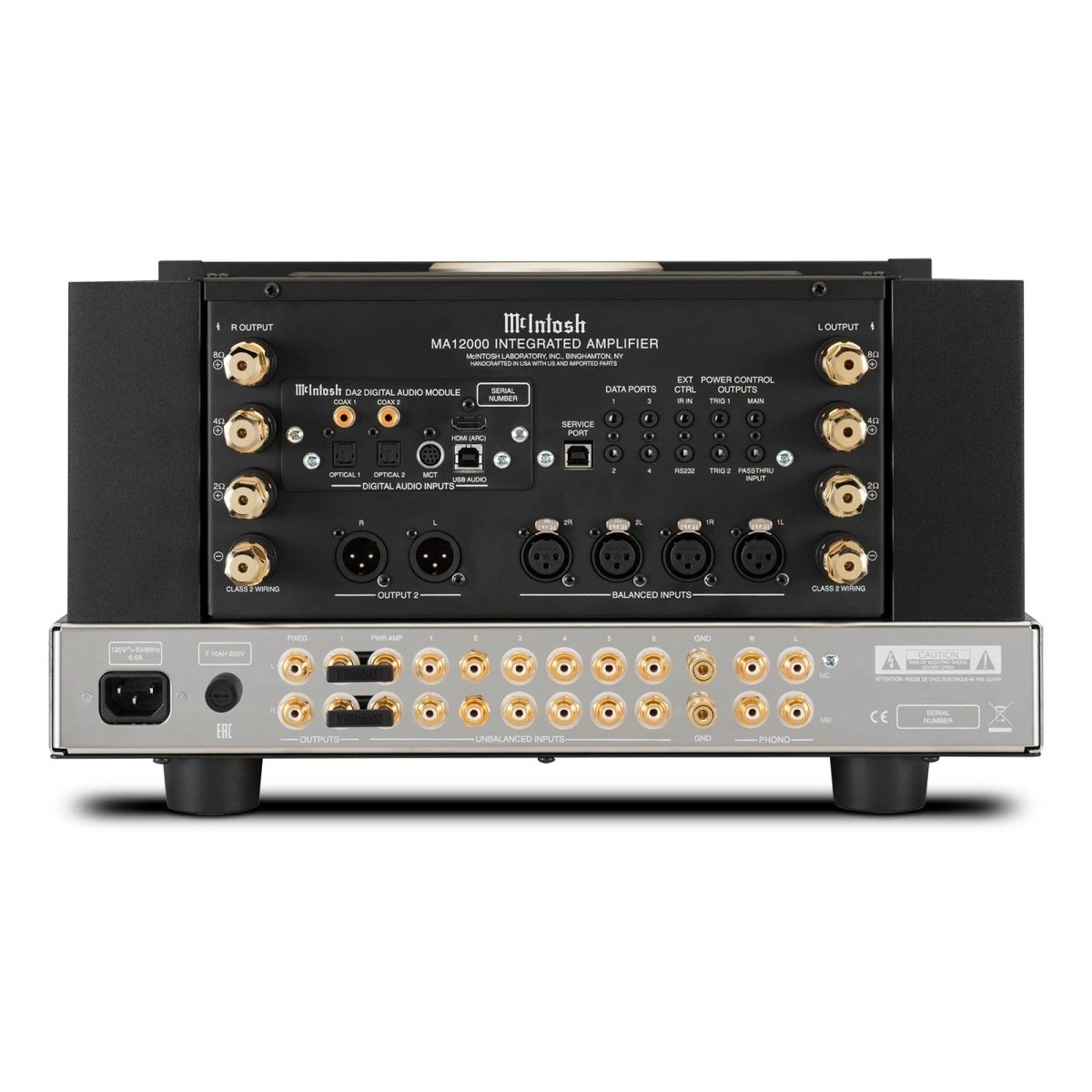

Connectivity |
|
---|---|
Balanced Input | 2 |
Unbalanced Input | 6 |
Phono Input (Moving Coil) | 1 (adjustable loading) |
Phono Input (Moving Magnet) | 1 (adjustable loading) |
Upgradeable Digital Audio Module | Yes: DA2 |
Digital Coaxial Input | 2 |
Digital Optical Input | 2 |
Digital MCT Input | 1 |
Digital USB Input | 1 |
HDMI (ARC) Input | 1 |
Balanced Variable Output | 1 |
Unbalanced Fixed Output | 1 |
Unbalanced Variable Output | 1 |
Headphone Output | 1/4" High Drive with Headphone Crossfeed Director (HXD®) |
Subwoofer Output | 0 |
AM/FM Tuner option | No |
Home Theater PassThru | Yes |
Unbalanced Analog Connector Type | Premium gold-plated solid brass |
Speaker Binding Post Type | Patented Solid Cinch™ Speaker Binding Posts |
Service Port | 1 |
Digital Audio |
|
---|---|
Digital-to-Analog Converter (DAC) Type | 8-channel, 32-bit/384kHz PCM/DSD, Quad Balanced |
Digital Coaxial Input Sample Rate | 24-bit/44.1kHz to 192kHz |
Digital Optical Input Sample Rate | 24-bit/44.1kHz to 192kHz |
Digital MCT Input Sample Rate | 16-bit/44.1kHz (CD)<br>DSD64 (SACD) |
Digital USB Input Sample Rate | 32-bit/44.1kHz to 384kHz (PCM)<br>DSD64, DSD128, DSD256, DSD512, DXD352.8kHz, DXD384kHz |
Control | |
---|---|
Tone Controls | 8-Band |
Tone Bypass and Input Assign | Yes |
RS232 Control Input | Yes |
Power Control Output | 1 Main, 2 Trigger |
Rear Panel Data Port | 4 |
Rear Panel IR Sensor Input | Yes |
Input Level Match | Yes |
General |
|
---|---|
Vacuum Tube or Solid State | Preamplifier: Vacuum Tube Amplifier: Solid State |
Output Type | Autoformer™ |
Output Meters | Yes |
Dual Layer Chassis | Yes |
Chassis Finish | Polished stainless steel & black painted steel |
McIntosh Monogrammed Heatsinks™ | Yes |
Power Requirement | 120V, 50/60Hz, 6.6A |
Standby Power Requirement | <0.25 Watts |
Unit Dimensions (W x H x D) | 17-1/2” (44.5cm) x 9-7/16” (24 cm) x 19-3/4” (50.2cm) |
Unit Weight | 108 lbs (48.9kg) |
Shipping Weight | 141 lbs (63.9kg) |
