The McIntosh MC611 Quad Balanced Power Amplifier is a powerful and versatile addition to any high-quality home audio system. With its impressive 600 Watt output, the MC611 can easily drive even the most demanding loudspeakers. Thanks to McIntosh's unique Autoformer™ technology, the amplifier can deliver its full power to speakers with 2, 4, or 8 Ohm impedance, allowing you to use it to its full potential.

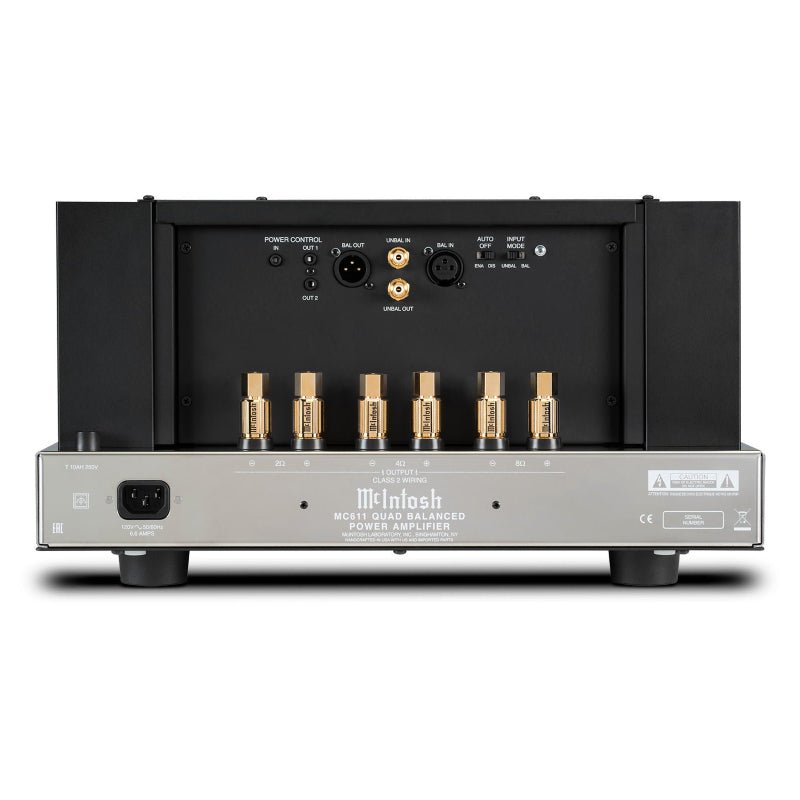

On the back panel, you'll find 3 sets of Solid Cinch™ speaker binding posts, providing ample connectivity options for your speakers. The binding posts are spaced apart to allow for easy cable management, and the upgraded internal wiring and components ensure reliable performance. In addition to the speaker outputs, the MC611 also has both balanced and unbalanced outputs, making it easy to bi-amp or tri-amp your speakers or connect a powered subwoofer.

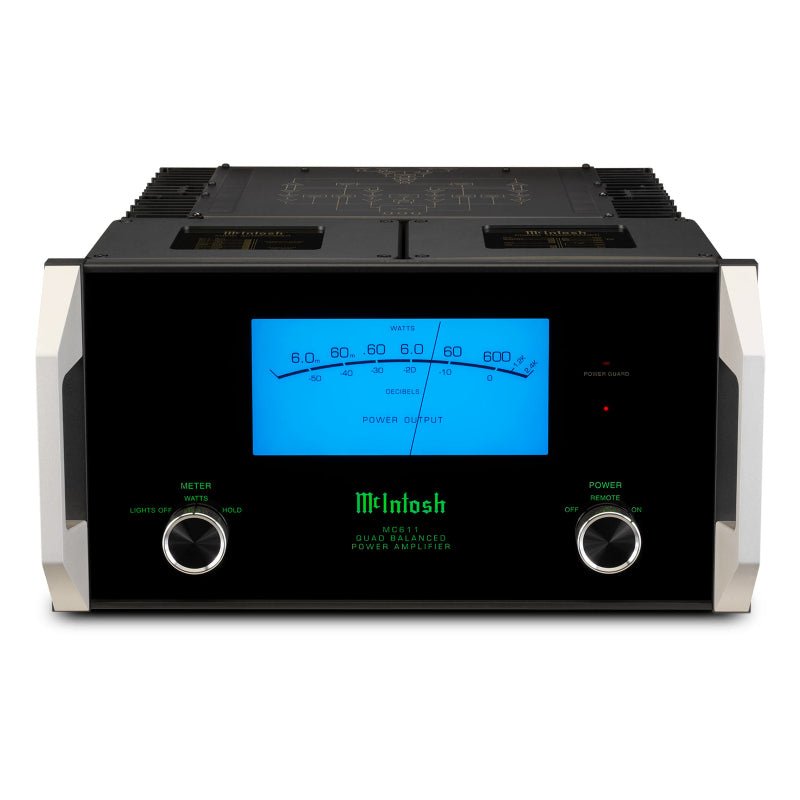

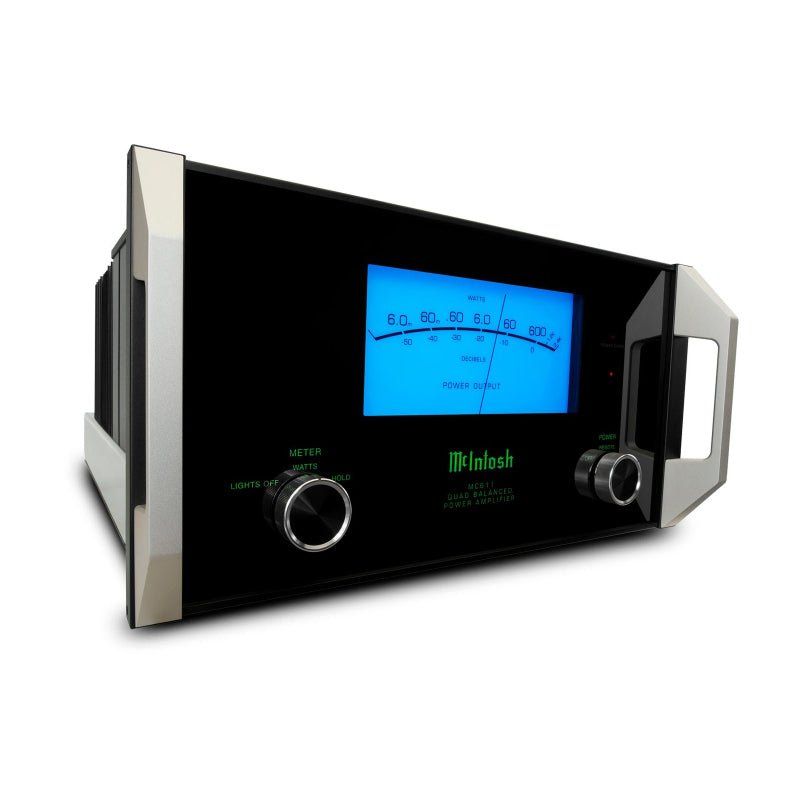

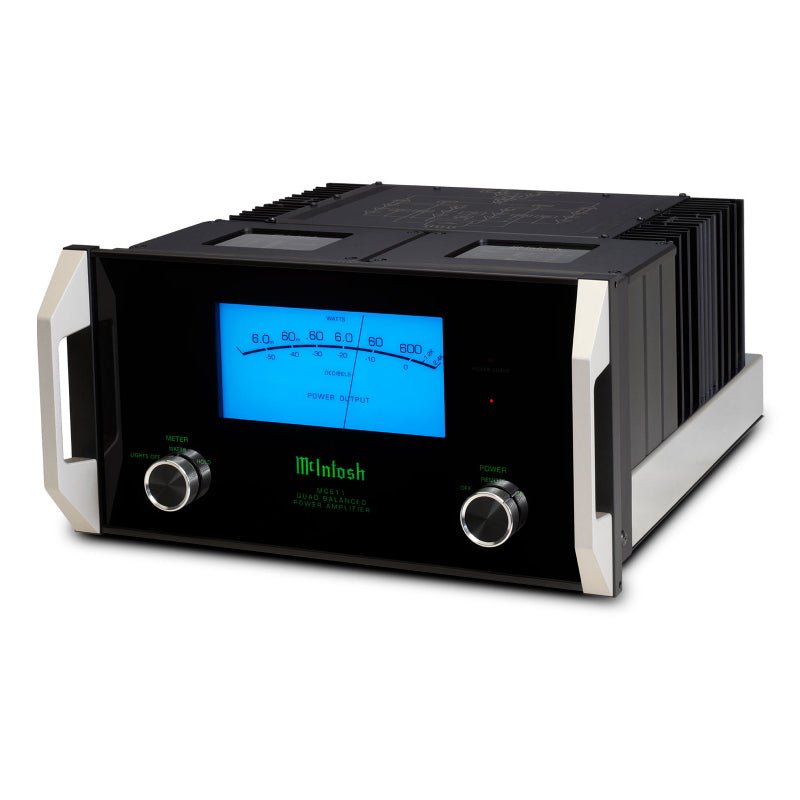

The MC611 is housed in a sleek and stylish stainless steel chassis and features the iconic McIntosh aesthetic with a black glass front panel, illuminated logo, control knobs, and a large 8” (20.3 cm) blue Watt meter. The amplifier also includes an eco-friendly power management system that will automatically turn off the amp after a set period of time when no input signal is detected.
Whether you're looking to build a high-quality home stereo system, or power a home theater, the McIntosh MC611 Quad Balanced Power Amplifier is a perfect choice. Contact ys to learn more and experience the power and versatility of the MC611 today.
Electronic |
|
---|---|
Power Output per Channel | 600 Watts @ 2, 4 or 8 Ohms |
Number of Channels | 1 |
Total Harmonic Distortion | 0.005% |
S/N below rated output (Balanced) | 124dB |
S/N below rated output (Unbalanced) | 120dB |
Dynamic Headroom | 2.8dB |
Damping Factor | >40 Wideband |
Rated Power Band | 20Hz to 20kHz |
Frequency Response | +0, -0.25dB from 20Hz to 20,000Hz<br>+0, -3.0dB from 10Hz to 100,000Hz |
General |
|
---|---|
Remote Power Control | Yes |
Multi-Channel DB25 Cable | N/A |
Circuit Configuration | Quad Balanced |
Circuit Design | Solid State |
Mono Bridge | N/A |
Mono Parallel | N/A |
Output Type | Autoformer™ |
Meters | Yes |
Meter Light Switch | Yes |
Balanced Input | 1 |
Front Panel | Glass with handles |
Illumination | Direct LED |
Chassis Style | Polished stainless steel & black painted steel |
Speaker Binding Post Type | Patented Solid Cinch™ Speaker Binding Posts |
Unit Dimensions (W x H x D) | 17-1/2" (44.45cm) x 9-7/16" (23.97cm) (including feet) x 22" (55.88cm) (including front panel, handles and cables) |
Unit Weight | 97.5 lbs (44.32 kg) |
Shipping Weight | 130.5 lbs (59.32 kg) |
