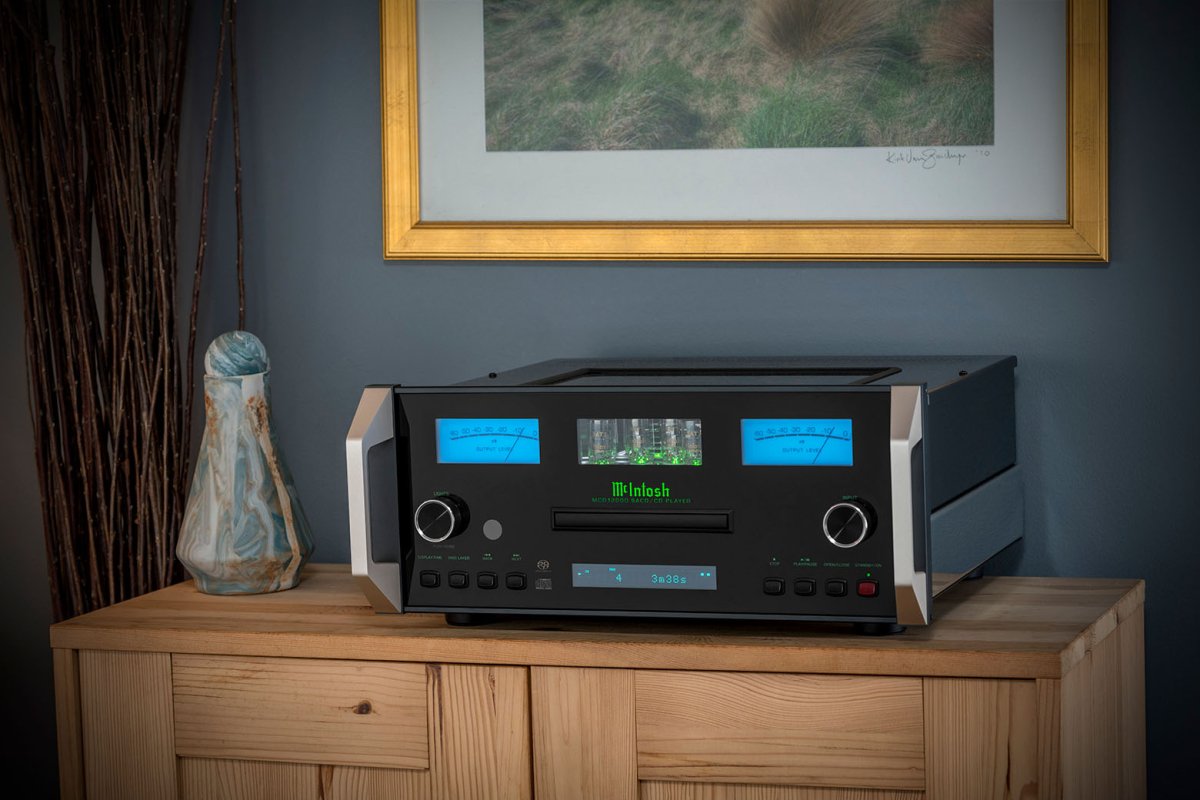

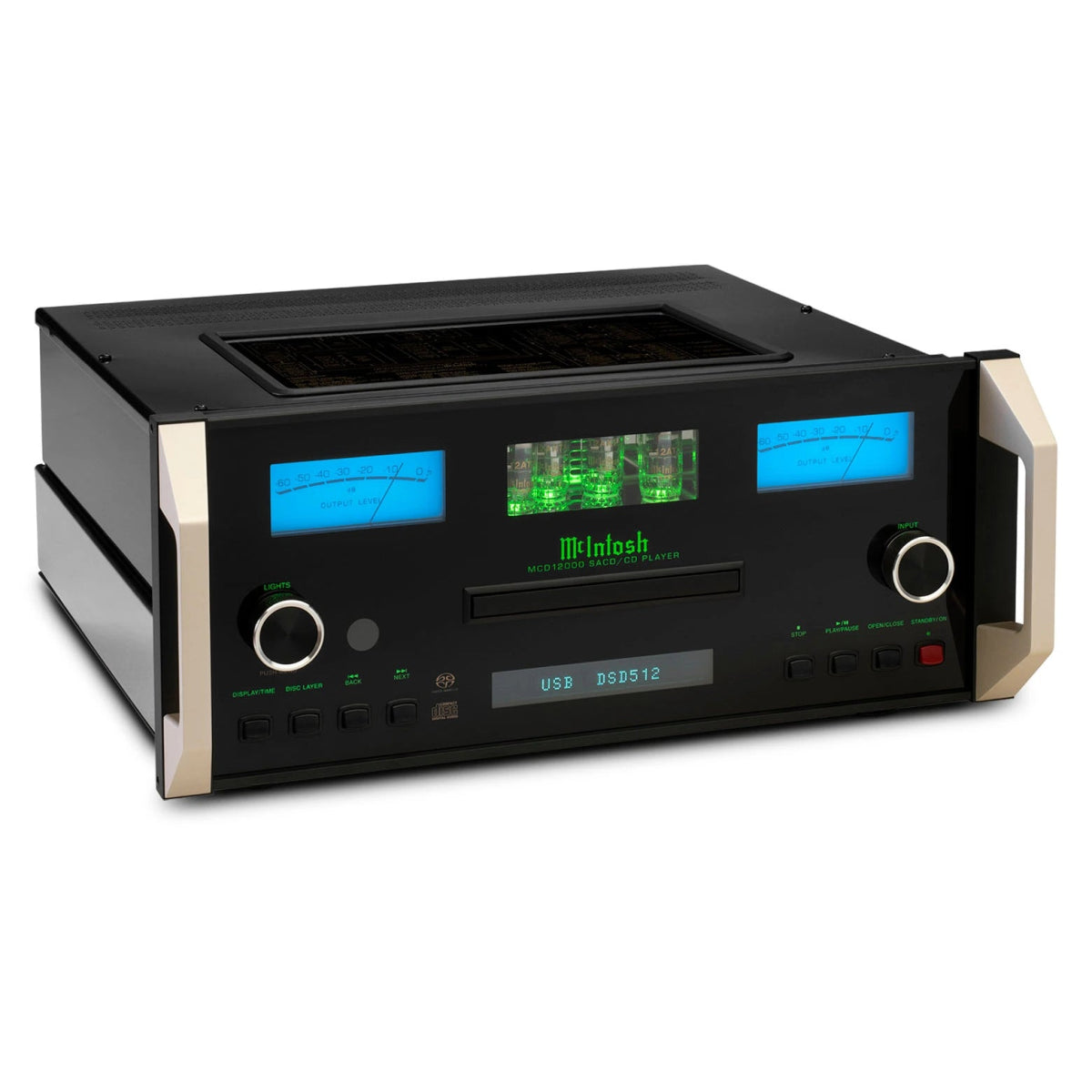

McIntosh MCD12000 SACD/CD Player

A reference DAC and SACD/CD player in one

The McIntosh MCD12000 SACD/CD Player combines reference-level disc playback with a reference-level digital-to-analog converter for an entire digital music system. Two ESS SABRE PRO ES9038PRO 32-bit/8-channel DACs are used—one dedicated to each stereo channel—while seven digital inputs accommodate computers, streamers, transports, and other sources.

McIntosh Hybrid Drive technology provides separate balanced and unbalanced analog outputs in both vacuum-tube and solid-state configurations. You can select the output character that best complements the recording and the rest of your system, making the MCD12000 far more than a conventional McIntosh CD player.

MCD12000 highlights

• Reference-level SACD/CD player and DAC in a single component
• Two ESS SABRE PRO ES9038PRO 32-bit/8-channel DACs, one per channel
• Octal-Balanced Mono conversion architecture

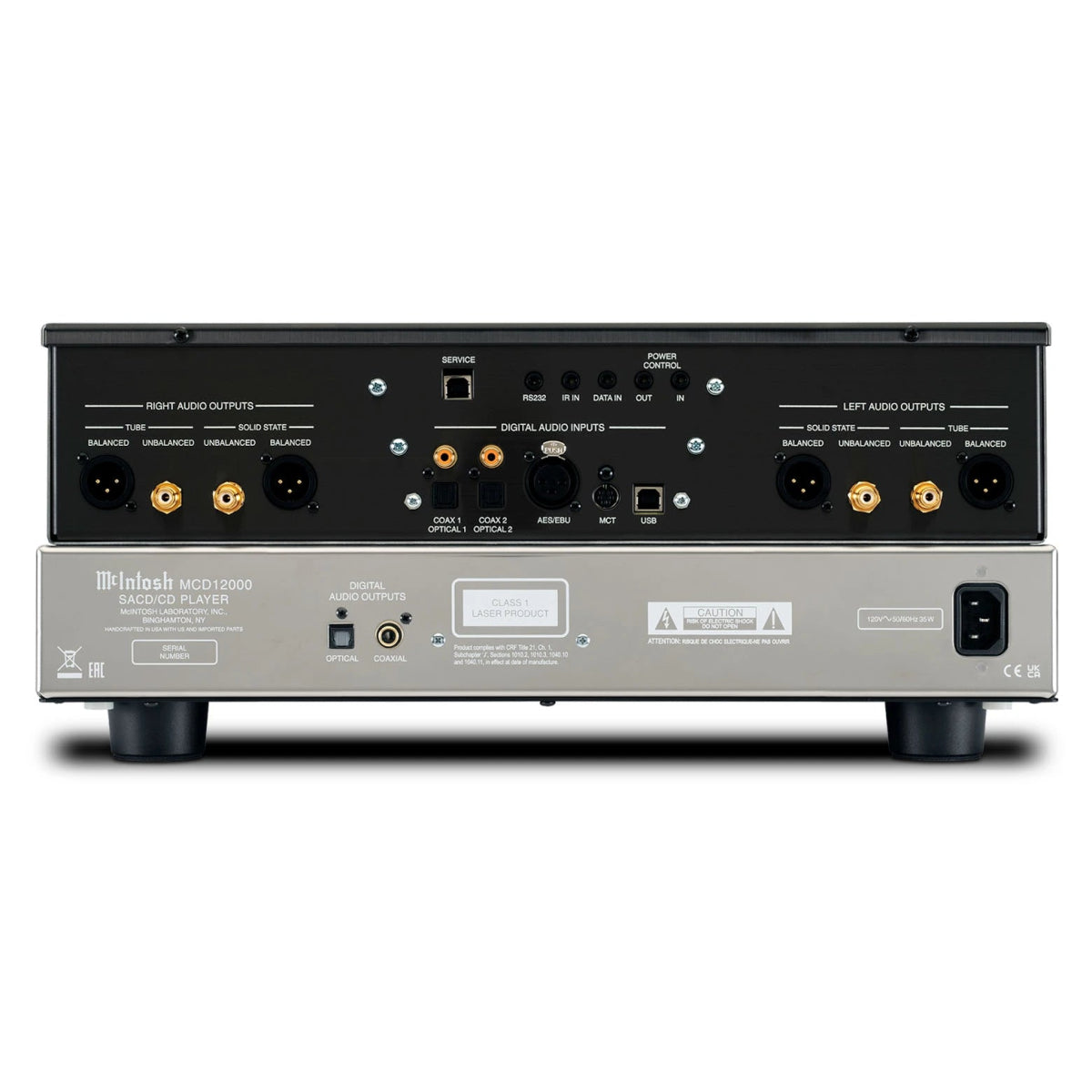

• Seven digital inputs: two coaxial, two optical, USB Type B, AES/EBU, and MCT
• USB playback up to 32-bit/384kHz PCM, DSD512, and DXD384kHz
• Separate balanced and unbalanced vacuum-tube and solid-state outputs
• Four-tube analog stage using two 12AT7 and two 12AX7A tubes
• Roon Tested USB DAC
• Dual analog output-level meters
• Plays SACD, CD, CD-R/RW, DVD-R, and common digital file formats

Dual-DAC digital architecture

Each stereo channel receives its own ES9038PRO converter configured in Octal-Balanced Mono mode. Separate digital and analog power supplies help isolate sensitive audio circuitry, while an R-Core transformer minimizes radiated noise. Coaxial and optical inputs support audio up to 24-bit/192kHz; the USB input extends support to 32-bit/384kHz PCM, DSD512, and DXD384kHz.

Choose vacuum-tube or solid-state output

The MCD12000 provides dedicated fixed analog outputs for both circuit types. The vacuum-tube path uses one 12AT7 and one 12AX7A per channel, while the solid-state path uses a discrete balanced operational amplifier. Both output sections are available through balanced XLR and unbalanced RCA connections, so you can choose the presentation that best suits the music or connected preamplifier.

Technical specifications

Authorized McIntosh dealer support

Audio Exchange in Richmond, Virginia can help you compare McIntosh digital sources, choose between the MCD12000’s tube and solid-state outputs, plan system connections, evaluate trade-ins, and arrange a demonstration. Contact us to confirm availability.
