The McIntosh MCD350 SACD/CD player is a high-end audio component designed to deliver the best possible playback experience for your SACD and CD collections. It features a state-of-the-art balanced 2-channel Digital-to-Analog Converter (DAC) with a resolution of 32-bit/192kHz, ensuring that every detail of the audio signal is accurately reproduced.

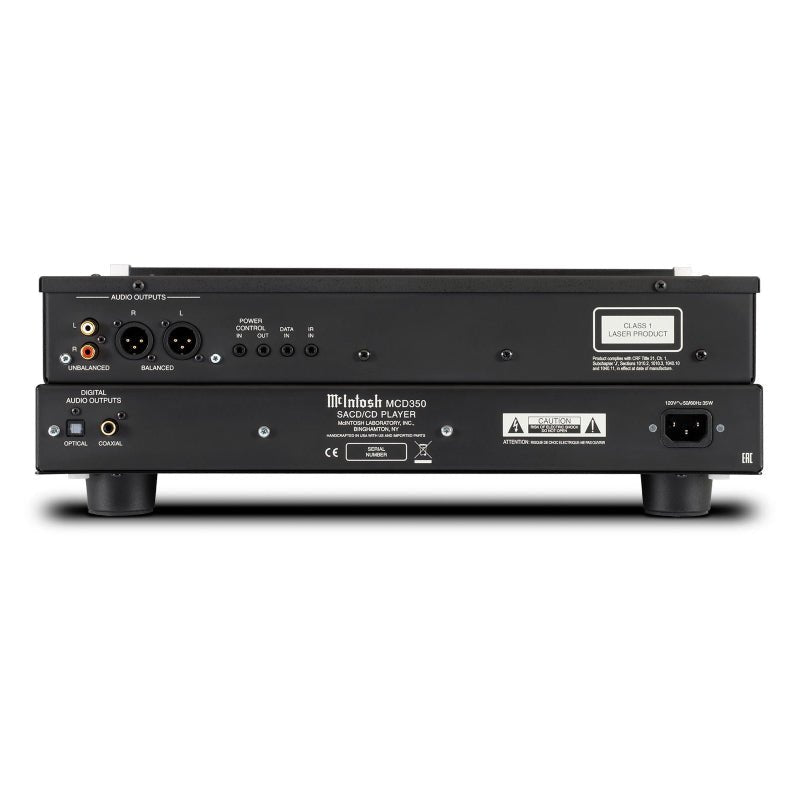

The MCD350 offers a range of connectivity options to suit your setup. Its fixed analog stereo outputs are available in both balanced and unbalanced configurations, allowing you to connect to a variety of amplifiers and speakers. If you prefer to use an external DAC or home theater processor, the MCD350 also has coax and optical outputs. All analog outputs, as well as the digital coax output, are gold-plated for superior corrosion resistance.
In addition to its impressive DAC, the MCD350 also boasts advanced disc reading technology. Its 2x read speed allows it to quickly and accurately read the data on your discs, while a twin laser optical pickup with two laser units optimized for SACD and CD playback ensures accurate tracking and error correction.

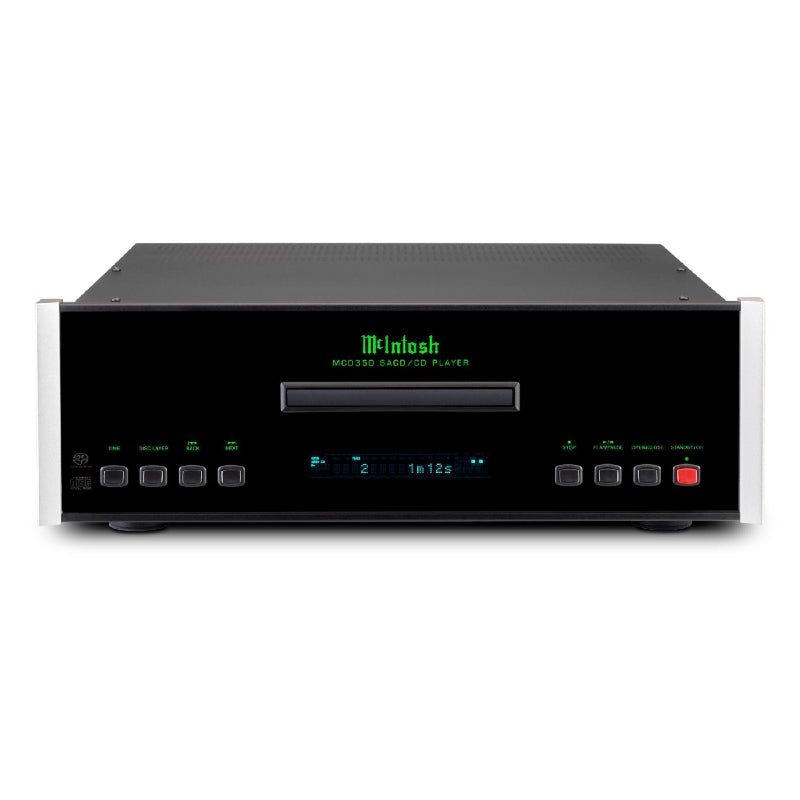

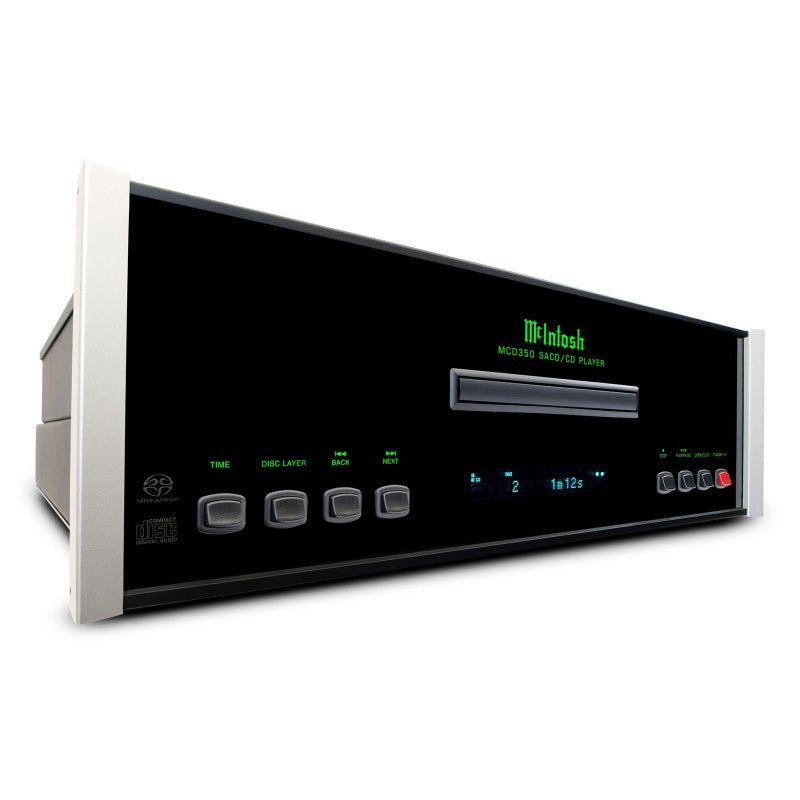

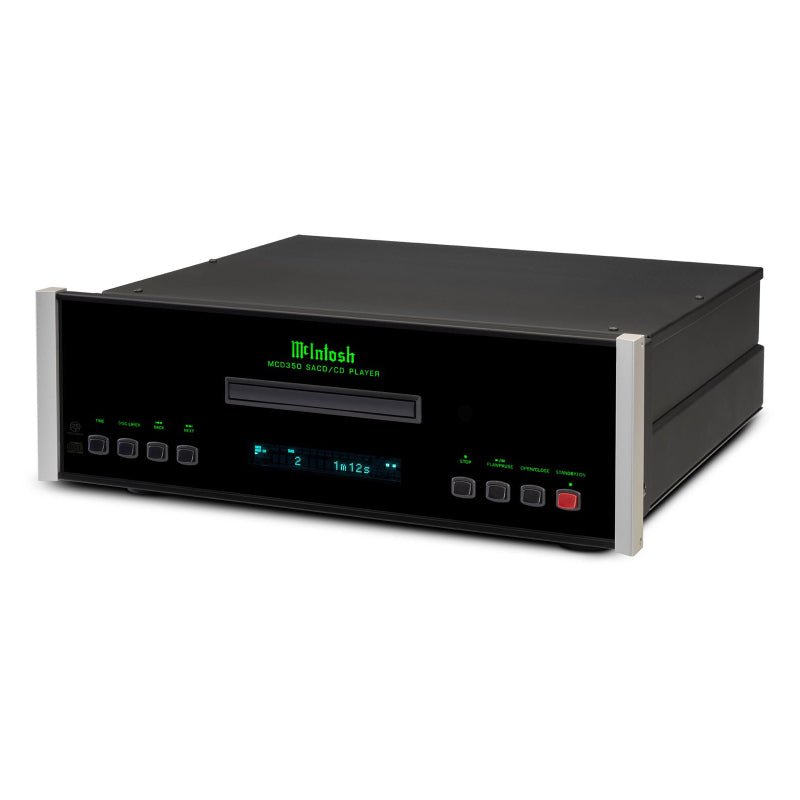

The MCD350's classic black glass front panel and illuminated logo give it a sleek and sophisticated look, while its aluminum end caps add a touch of durability. Overall, the MCD350 is a top-of-the-line SACD/CD player that is sure to please even the most discerning audiophile.
Key Features
Audio | |
---|---|
Number of Channels | 2 |
Fixed Output Level | 2.0Vrms Unbalanced |
4.0Vrms Balanced | |
Variable Output Level | N/A |
Output Impedance | 600 ohms Unbalanced |
600 ohms Balanced | |
Frequency Response | 4Hz to 40kHz, +0.5, -2dB (SACD) |
4Hz to 20kHz, ±0.5dB (CD) | |
Signal To Noise Ratio | Better than 108dB (A-weighted) |
Dynamic Range | Better than 100dB |
Total Harmonic Distortion | 0.003% @ 1000Hz (SACD) |
0.002% @ 1000Hz (CD) | |
Channel Separation | Better than 98dB (1,000Hz) |
Headphone Output Impedance | N/A |
Digital Audio | |
---|---|
DAC Type | 2-channel, 32-bit/192kHz PCM/DSD |
Coaxial Sample Rate | N/A |
Optical Sample Rate | N/A |
USB Sample Rate | N/A |
Digital Coaxial Input | N/A |
Digital Optical Input | N/A |
Digital Output Sample Rate | Up to 24-bit/192kHz |
Digital Optical Output | -15dbm to -21dbm |
Digital USB Input Type | N/A |
Digital Coaxial Output | 0.5V p-p/75 ohms |
Digital XLR Output | N/A |
Digital MCT Output | N/A |
Digital Output Jitter | N/A |
Connectivity | |
---|---|
Balanced Fixed Output | 1 |
Unbalanced Fixed Output | 1 |
Balanced Variable Output | 0 |
Unbalanced Variable Output | 0 |
Digital Coaxial Input | 0 |
Digital MCT Input | 0 |
Digital Optical Input | 0 |
Digital USB Input | 0 |
Digital USB Input Type | N/A |
Digital Coaxial Output | 1 |
Digital MCT Output | 0 |
Digital Optical Output | 1 |
Digital XLR Output | 0 |
Headphone Output | 0 |
Control |
|
---|---|
Power Control Input | 1 |
Power Control Output | 1 |
Rear Panel Data Input | 1 |
Rear Panel IR Sensor Input | 1 |
RS232 Control Input | 0 |
General Specifications | |
---|---|
Disc Formats | CD, SACD, MP3, WMA |
Disc Capacity | 1 |
Laser Type | Twin Beam |
Laser Beam Wavelength | 650nm (SACD) |
790nm (CD) | |
Laser Power | CLASS IIa/CLASS I |
Standby Power Requirement | <0.5 watt |
Unit Dimensions (W x H x D) | 17-1/2" (44.45cm) x 6" (15.24cm) x 19" (48.3cm) |
Unit Weight | 28 lbs (12.7 kg) |
Shipping Weight | 42.5 lbs (19.2 kg) |
Note: When the disc tray is opened, the panel clearance required in front of the mounting panel is 6-3/4 inches (17.2cm).
