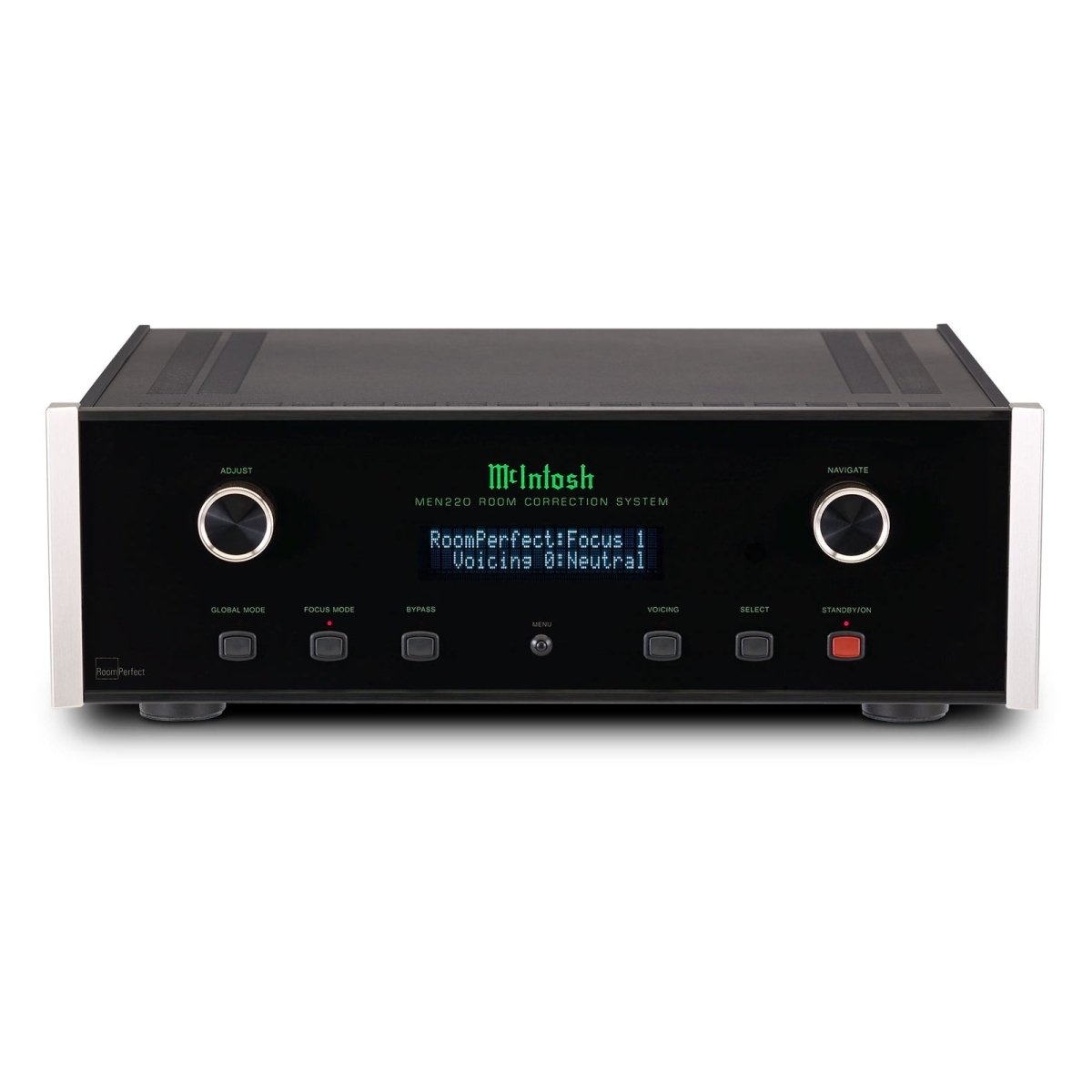

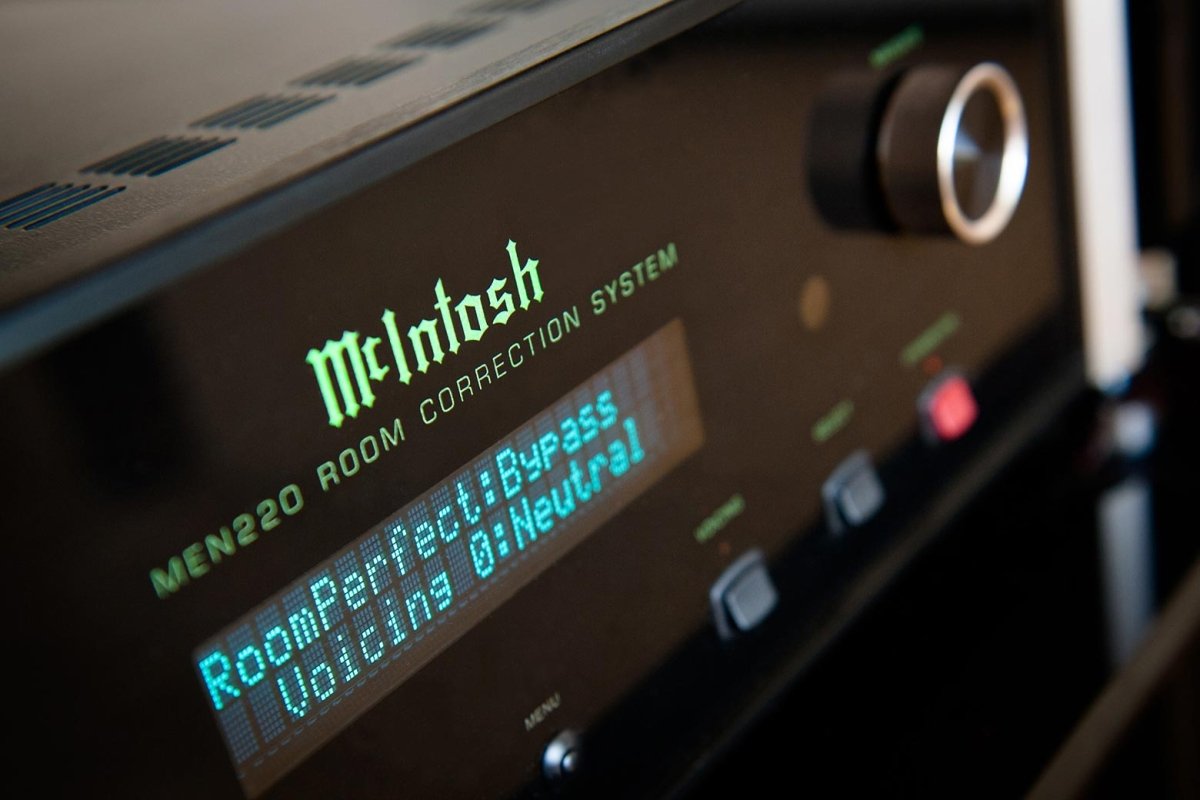

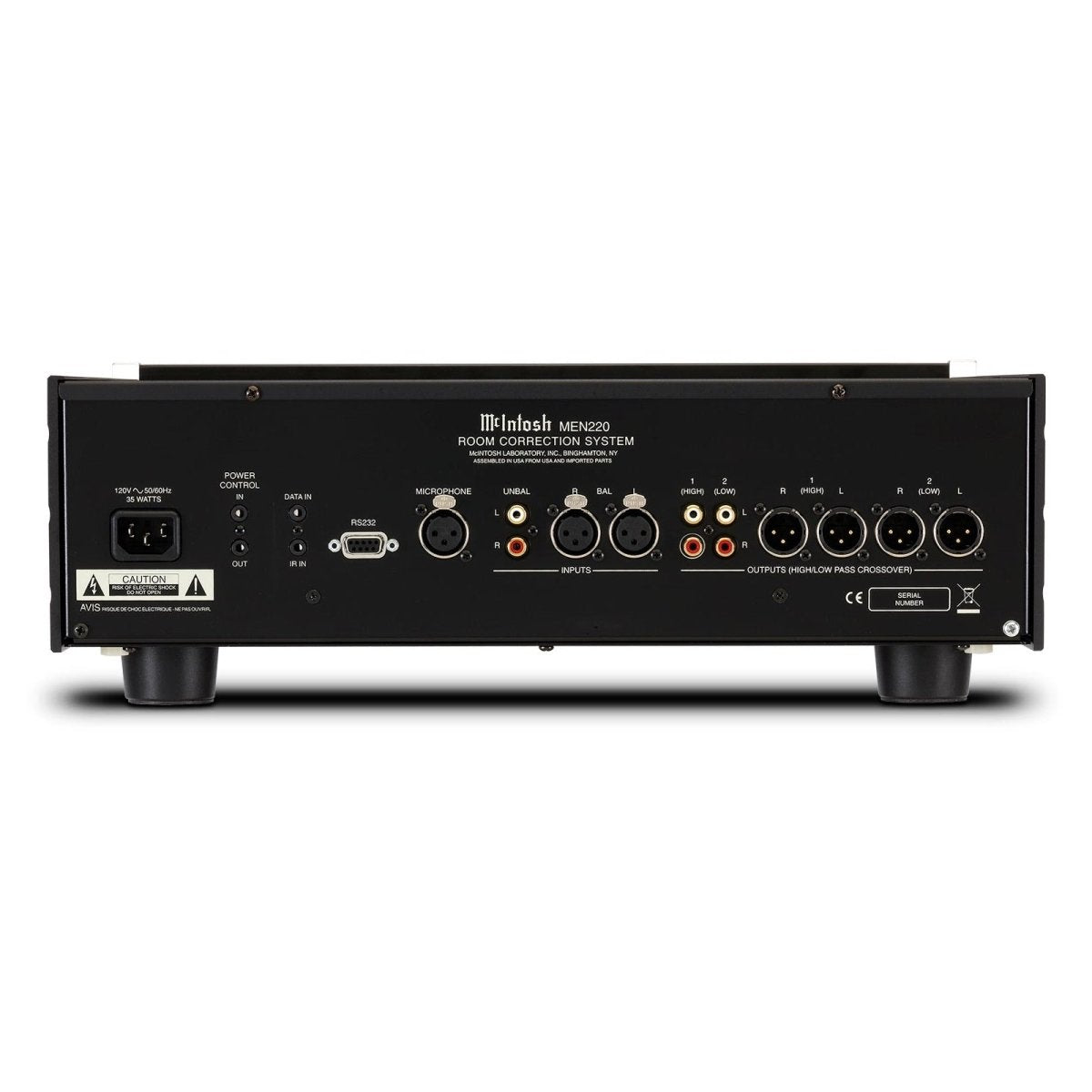

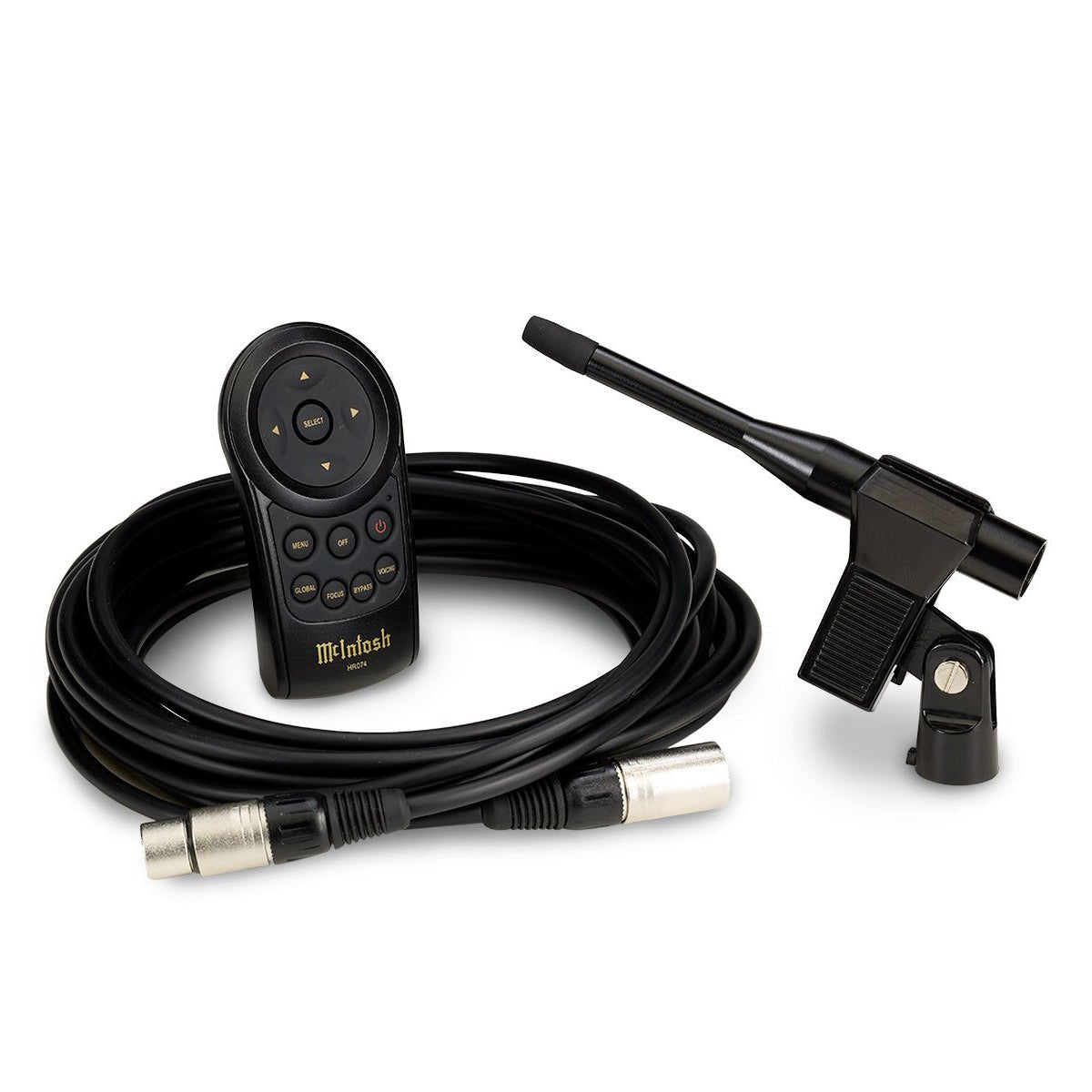

The McIntosh MEN220 is a powerful stereo component that provides room correction, custom EQ, and 2-way crossover capabilities. When used together, these features can deliver exceptional clarity and resolution for high-quality audio systems. The MEN220 also offers full system control and PC link via RS232, as well as McIntosh data, power control, and IR inputs for remote control. It supports both single-ended and balanced connections and includes a hand-held, IR remote control. Customers rave about the sonic improvements the MEN220 provides, with one stating, "I have never heard my speakers sound so wonderful!" Upgrade your audio setup with the advanced capabilities of the McIntosh MEN220.
Specification | |
---|---|
Frequency Response | +0, -0.5dB from 20Hz to 20,000Hz |
Total Harmonic Distortion | 0.002% from 20Hz to 20,000Hz |
Maximum Input Voltage | 4.5V Unbalanced and Balanced (Preamp-Power Amp)<br>2.25V Unbalanced and Balanced (Processor Loop) |
Maximum Output Voltage | 4.5V Unbalanced and Balanced (Preamp-Power Amp)<br>2.25V Unbalanced and Balanced (Processor Loop) |
Signal To Noise Ratio | (A-Weighted) 100dB |
Input Impedance | 10K ohms Unbalanced and Balanced |
Voltage Gain | 0dB |
Output Impedance | 50 ohms |
Crossover Filter Types | Butterworth, 1st order, 6 dB/octave<br>Butterworth, 2nd order, 12 dB/octave<br>Butterworth, 4th order, 24 dB/octave<br>Linkwitz-Riley, 2nd order, 12 dB/octave<br>Linkwitz-Riley, 4th order, 24 dB/octave<br>Linkwitz-Riley, 8th order, 48 dB/octave |
Unit Dimensions (W x H x D) | 17-1/2" (44.45cm) x 6" (15.24cm) x 18" (45.72cm) (including front panel, knobs and cables) |
Unit Weight | 25.5 lbs (11.6 kg) |
Shipping Weight | 41.9 lbs (19 kg) |
