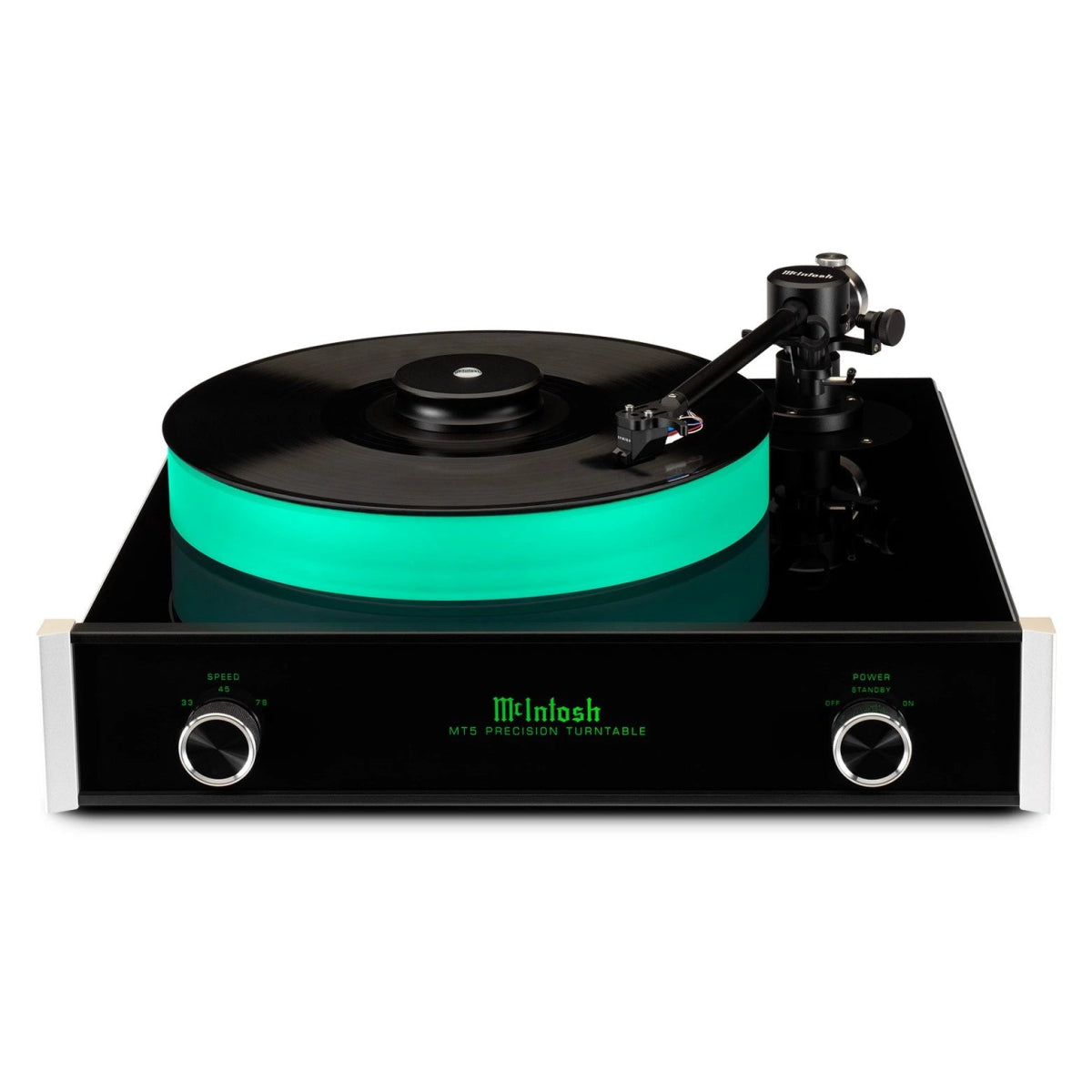

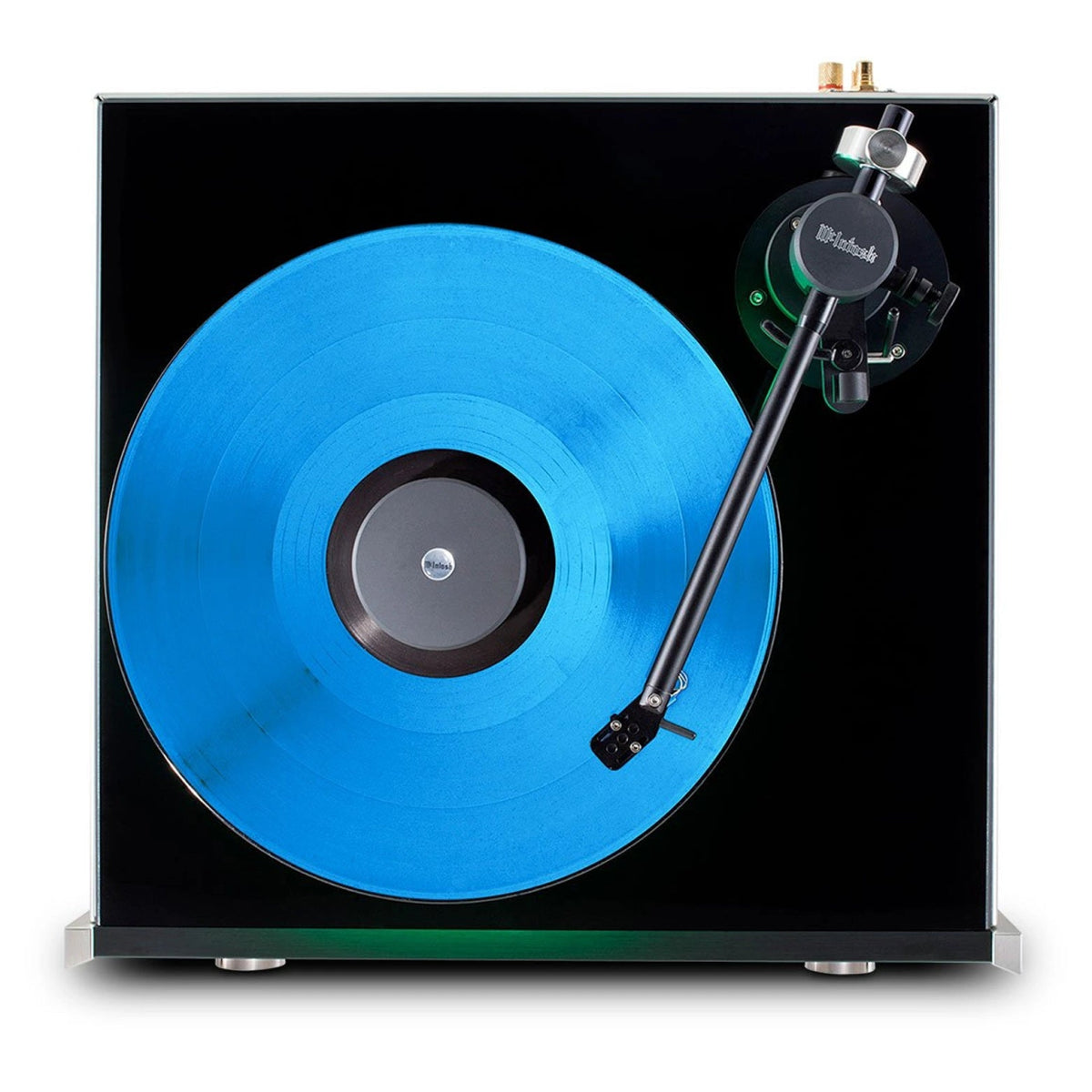

The McIntosh MT5 Precision Turntable is a factory-adjusted belt-drive record player built for listeners who want high-end vinyl performance without a lengthy setup process. It combines an illuminated, magnetically suspended platter, precision tonearm and preinstalled Sumiko Amethyst moving-magnet cartridge in a substantial McIntosh chassis.
The Amethyst cartridge uses an extended line-contact stylus and is compatible with standard 47k-ohm moving-magnet phono inputs. Cartridge alignment, tracking force, anti-skate and tonearm height are set at the factory, while fine adjustments remain available for system optimization.
McIntosh MT5 highlights

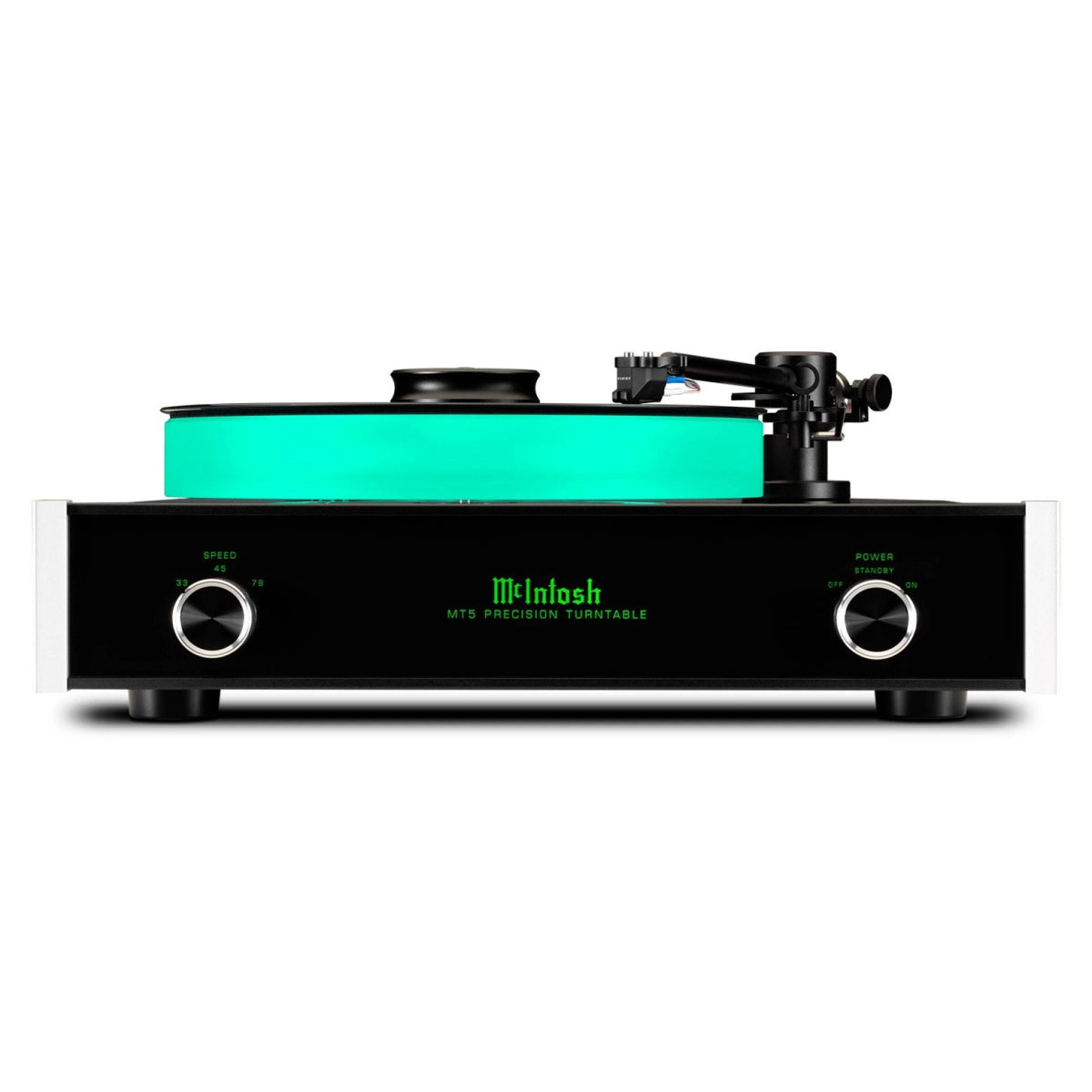

- Sumiko Amethyst moving-magnet cartridge installed and aligned
- Illuminated silicon-acrylic platter with a magnetic-suspension bearing
- 33-1/3, 45 and 78 rpm playback
- Servo-controlled belt-drive motor with fine speed adjustment

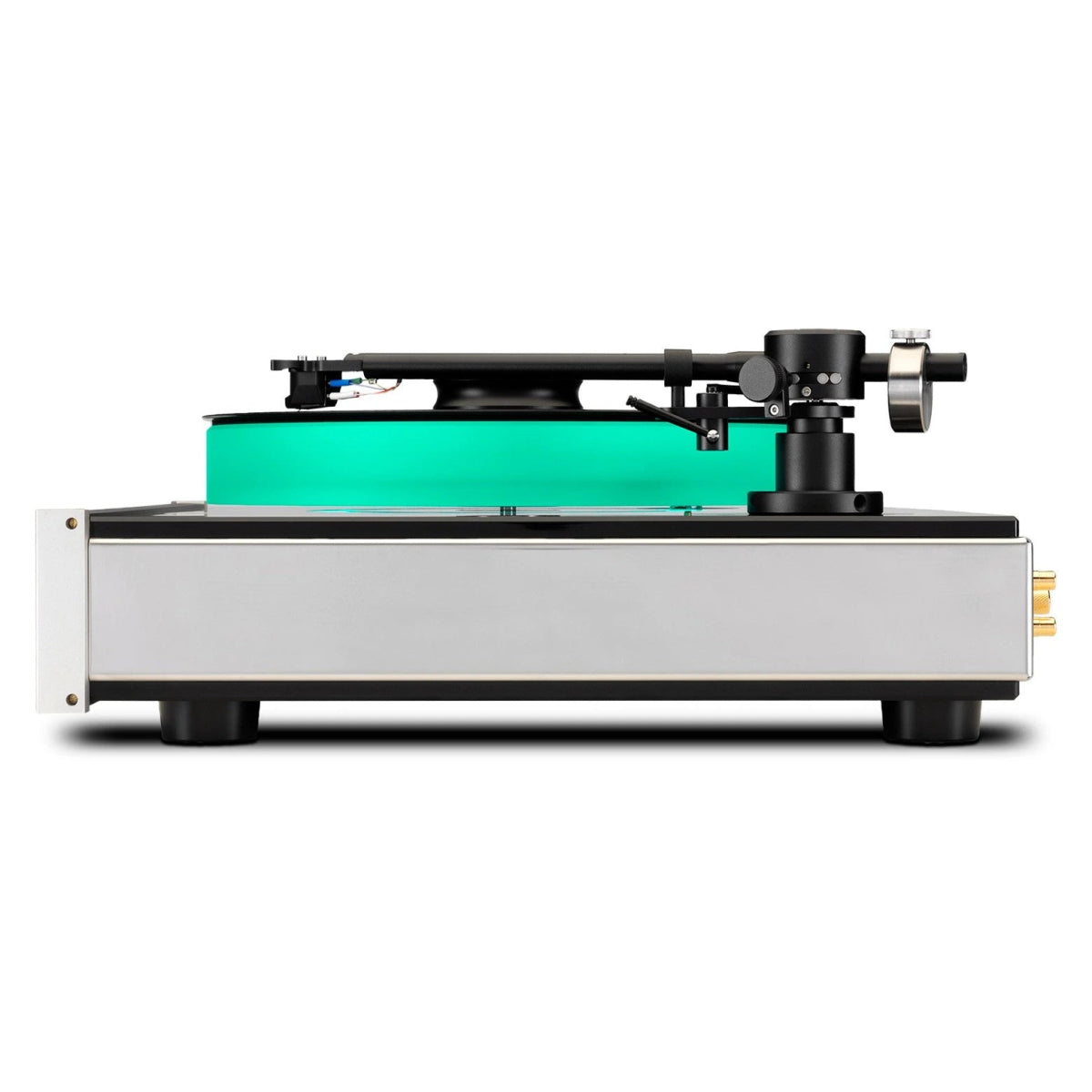

- Dural-aluminum tonearm with magnetic sapphire and ceramic bearings

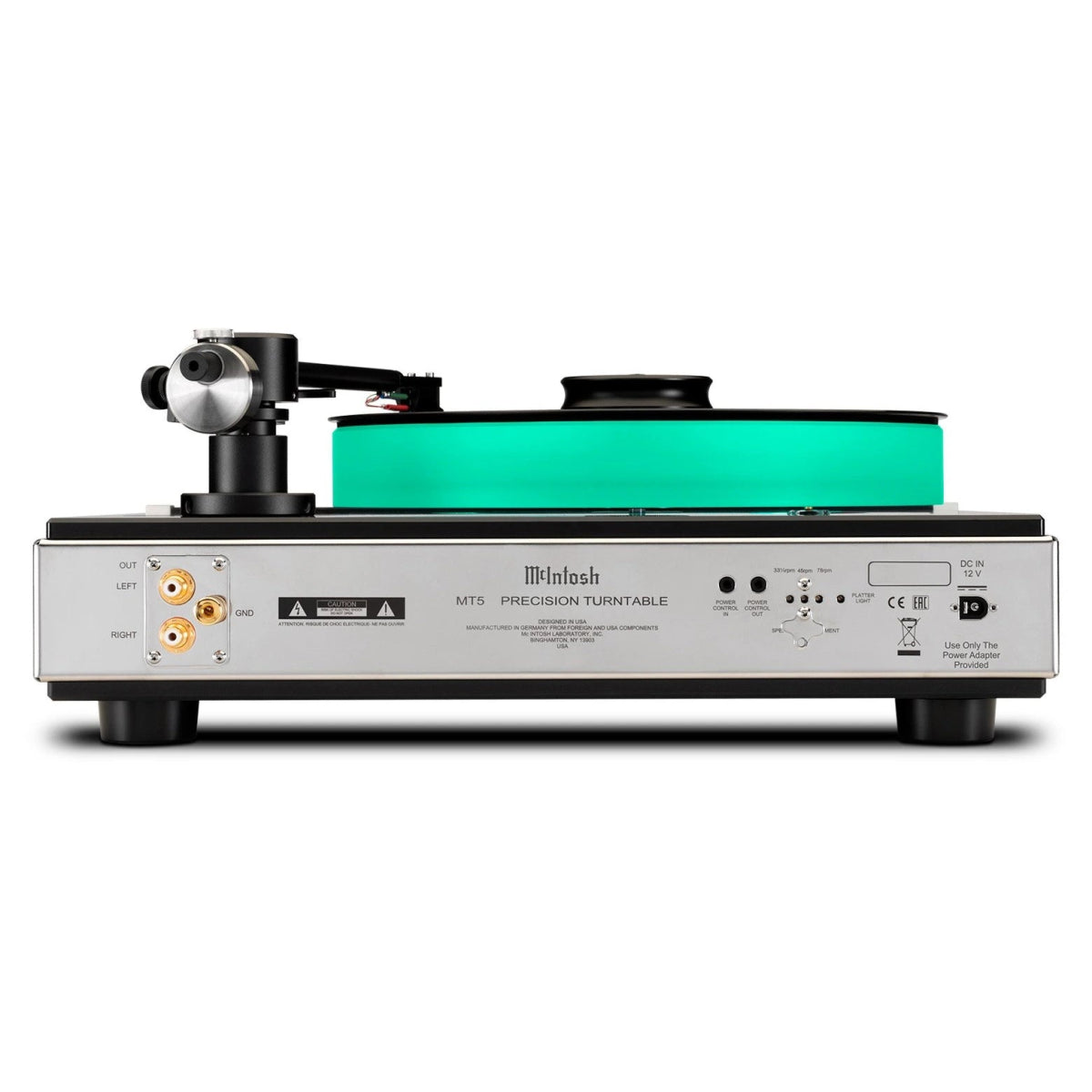

- Power Control input and output for McIntosh system integration
- Clear, form-fitting dust cover included
Designed for a dedicated vinyl system
The MT5 is designed for use with a moving-magnet phono input or an external phono preamplifier. Its 2.5 mV cartridge output and recommended 47k-ohm load make it straightforward to match with many McIntosh preamplifiers and integrated amplifiers.
The high-mass chassis, isolated motor and magnetic platter bearing are engineered to reduce vibration, resonance and mechanical noise. Its illuminated platter and classic black-glass styling make the MT5 visually consistent with a complete McIntosh two-channel system.
Key specifications
| Cartridge | Sumiko Amethyst moving magnet |
|---|---|
| Cartridge output | 2.5 mV at 5 cm/s |
| Frequency response | 12 Hz to 35 kHz |
| Stylus | Extended line contact |
| Recommended tracking force | 2.0 g |
| Speeds | 33-1/3, 45 and 78 rpm |
| Platter | Illuminated silicon acrylic with magnetic-suspension bearing |
| Wow and flutter | 0.15% to 0.20% |
| Signal-to-noise ratio | 36 dB to 41 dB |
| Audio output | 1 unbalanced stereo output |
| Dimensions | 17.5 in W × 7 in H × 17 in D; 7.5 in H with dust cover |
| Weight | 31.5 lb net; 38 lb shipping |
Consultation and setup
Audio Exchange is an authorized McIntosh dealer in Richmond, Virginia. Contact our team to discuss phono-stage compatibility, cartridge loading, amplifier and speaker matching, private demonstrations, delivery and professional turntable setup.
