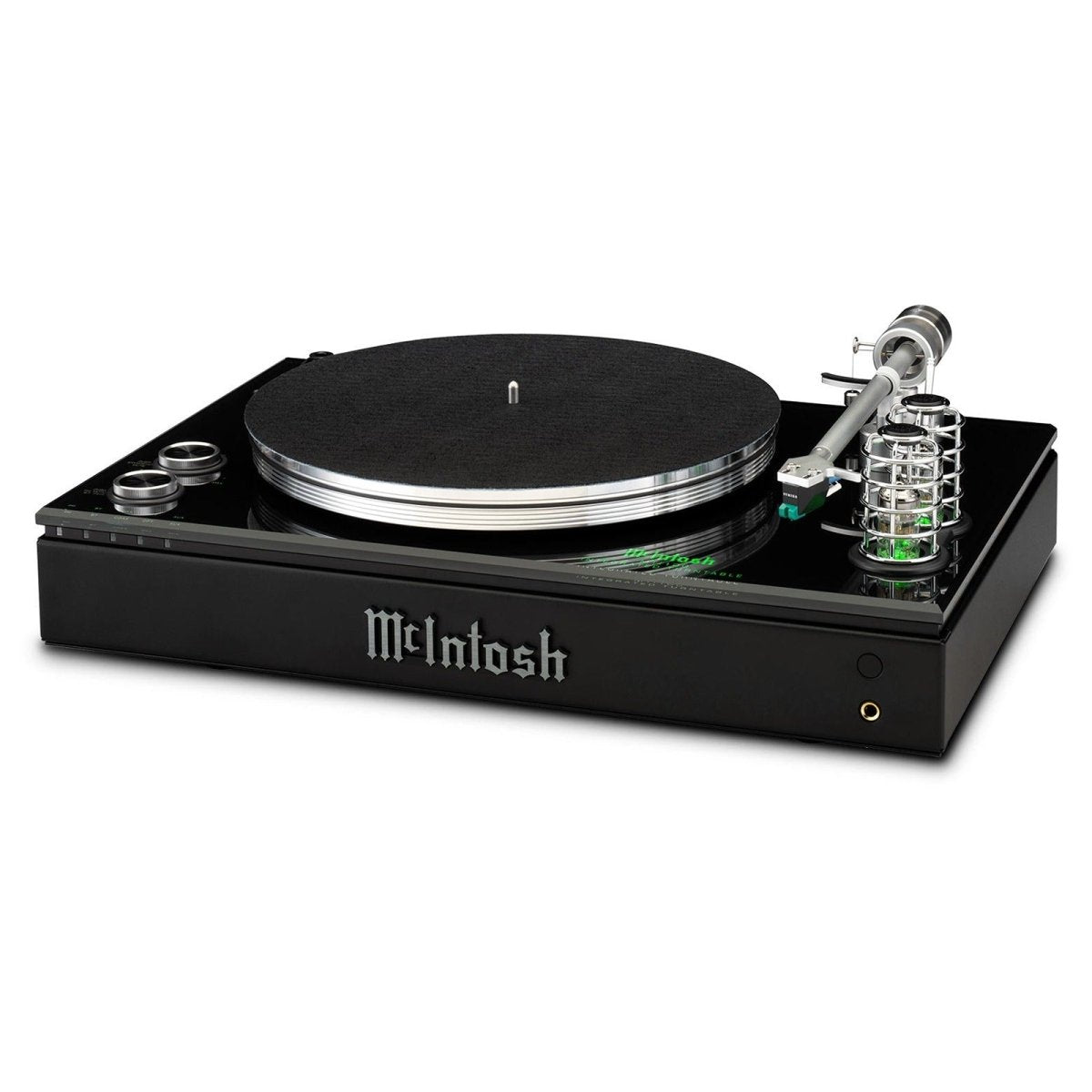

The McIntosh MTI100 Integrated Turntable is an all-in-one modern home audio system designed for those who seek maximum flexibility and convenience. With its built-in turntable, amplifier, vacuum tube preamplifier, shielded phono preamplifier, Bluetooth receiver, digital and analog inputs, subwoofer output, speaker outputs, and headphone jack, this device offers unparalleled versatility in creating a comprehensive audio system.

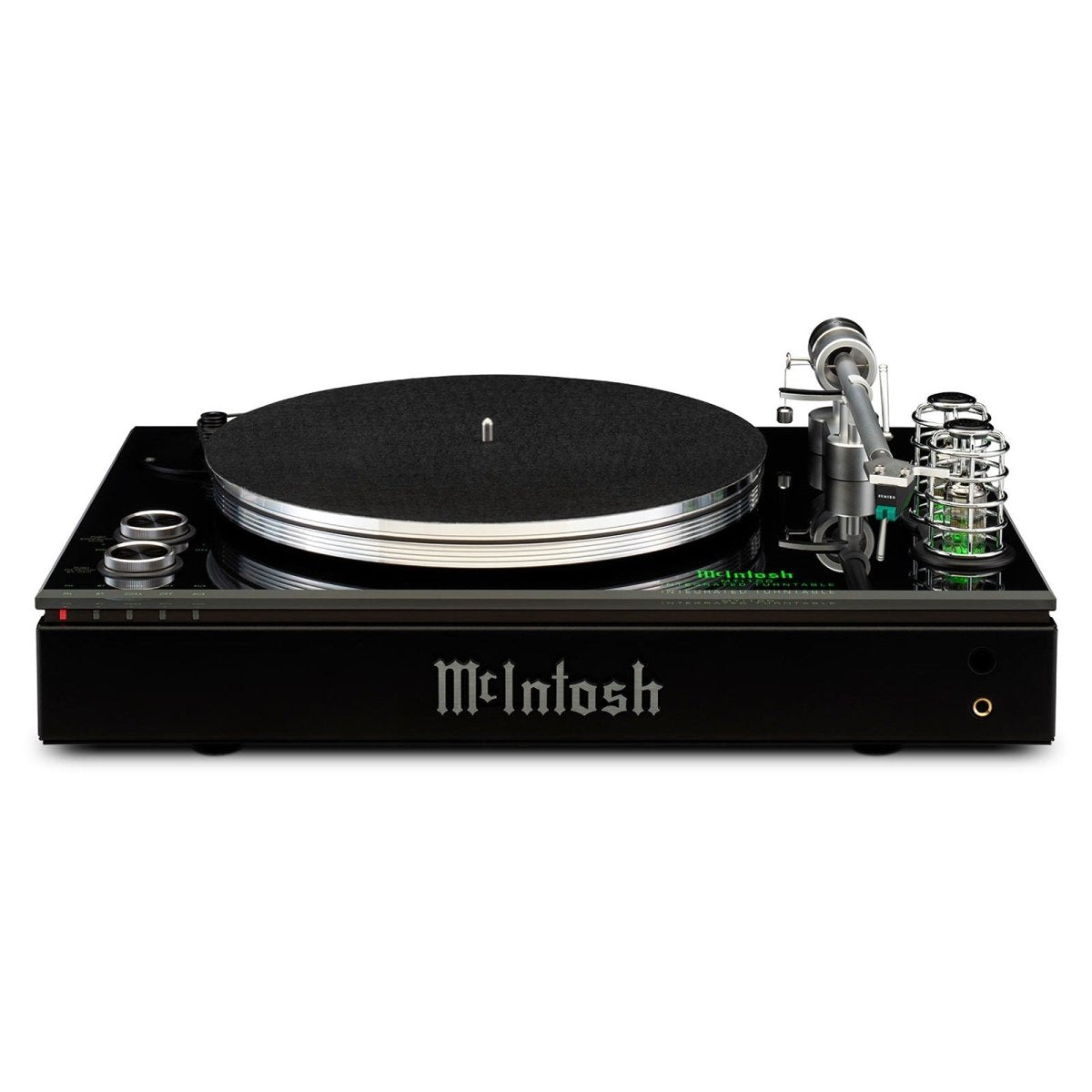

At the heart of the MTI100 is a precision-engineered turntable that plays both 33-1/3 and 45 rpm vinyl records. The turntable comes with a Sumiko Olympia Moving Magnet cartridge, which features an upgraded stylus and cantilever assembly for improved frequency response and dynamic punch. The belt drive platter with manual speed change is driven by an industrial-grade permanent magnet AC synchronous motor with a 2-speed pulley, delivering precise rotational speeds for optimal playback accuracy.
In addition to the turntable, the MTI100 features a Class D amplifier rated for 80 Watts per channel into 4 Ohms or 50 Watts per channel into 8 Ohms. The amplifier is powerful enough to drive most bookshelf or floorstanding speakers, making it a perfect centerpiece for a modern home audio system. Two 12AX7 vacuum tubes power the main preamplifier section, while a separate dedicated phono preamplifier is housed in a custom shielding box to prevent interference or noise from seeping into the vinyl signal. Together, the vacuum tube preamplifier and shielded phono preamplifier provide a perfect combination for vinyl enthusiasts who demand the best possible sound quality.
The MTI100 offers multiple connectivity options to support various modern playback methods. You can stream music to the MTI100 via its High Definition Bluetooth 4.2 input, which ensures you receive the best sound quality possible from your Bluetooth device. An external Bluetooth antenna helps achieve optimal reception and signal quality. The analog and digital audio inputs allow external sources, such as a TV, tuner or CD player, to be connected. Finally, for added low-frequency impact, a subwoofer output is also included.

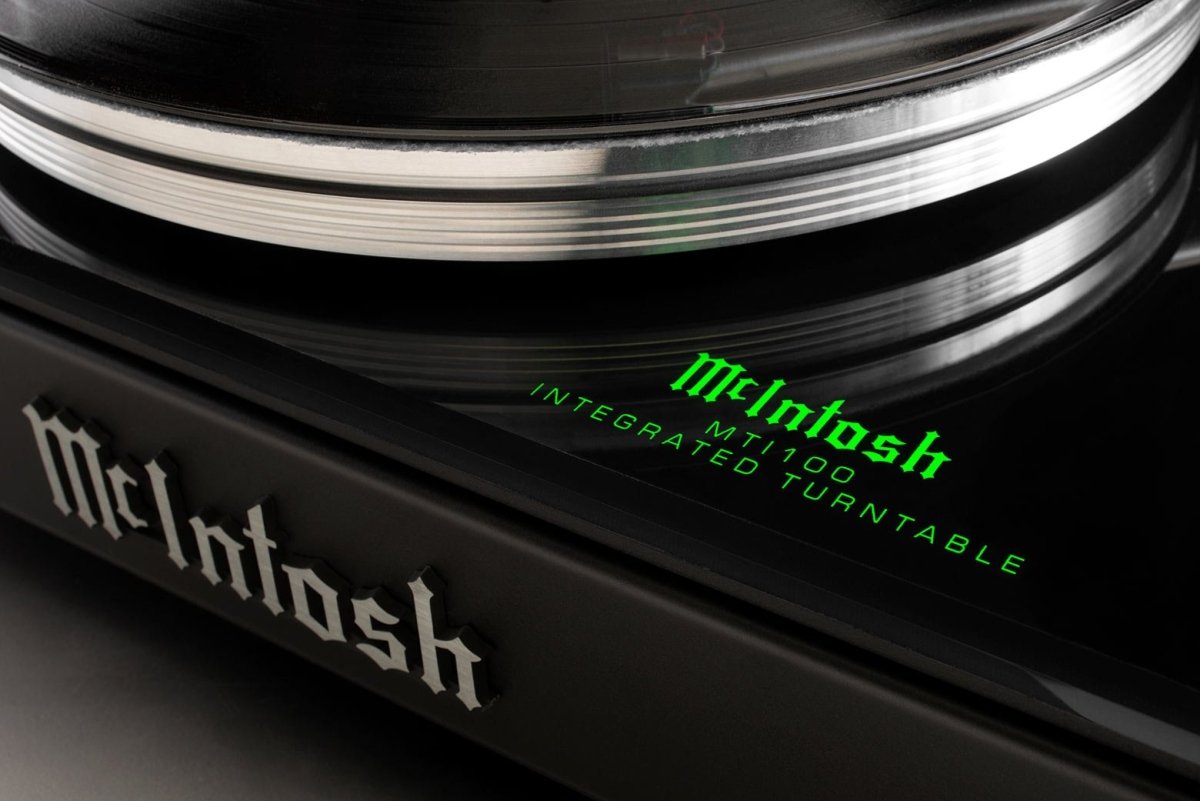

The MTI100 is built with high-quality components and precision engineering, making it a truly one-of-a-kind product. The machined aluminum platter and tonearm sit atop a 3/8” thick piece of glass, which in turn sits atop a custom 1/4” thick metal plate that adds stability and helps resist and absorb noise that could be caused by external vibrations. The unit is housed in a sleek and stylish chassis with a classic McIntosh-styled die-cast aluminum name badge adorning the front panel. An illuminated McIntosh logo is located in the top glass panel, adding a touch of class to this already elegant piece of equipment.

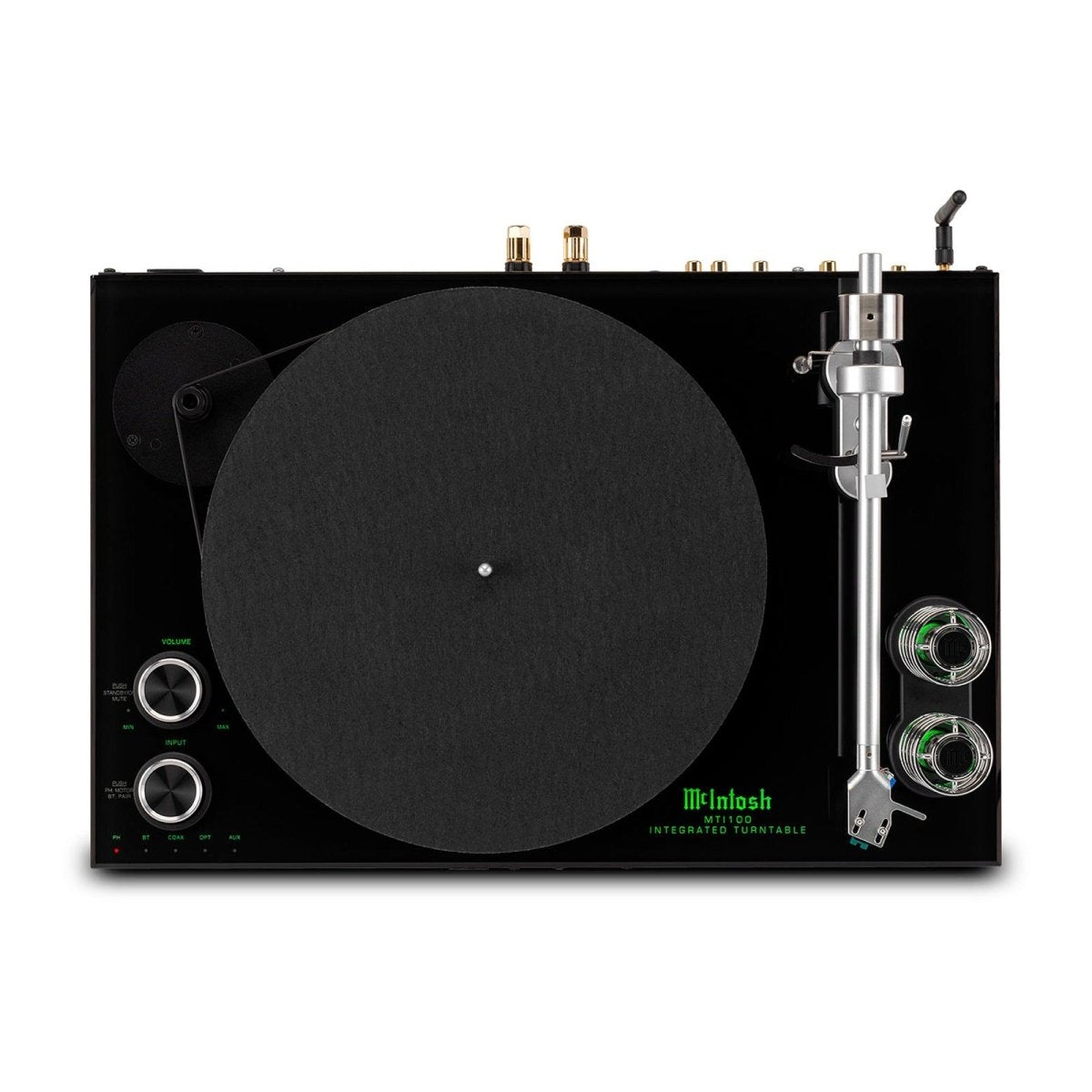

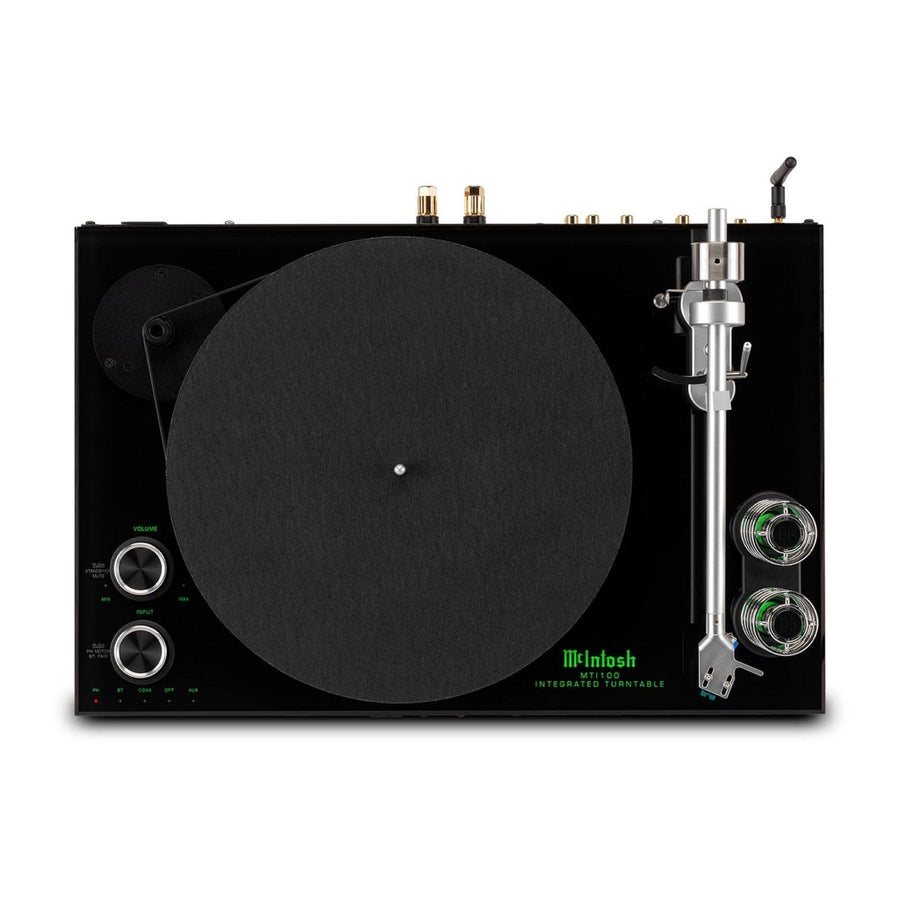

The MTI100 offers intuitive control options for easy operation. Power, volume and input selection can be controlled by either the included remote or via two knobs on the unit. The front panel also includes a headphone jack that is powered by our High Drive headphone amplifier, optimized for virtually all headphone types.

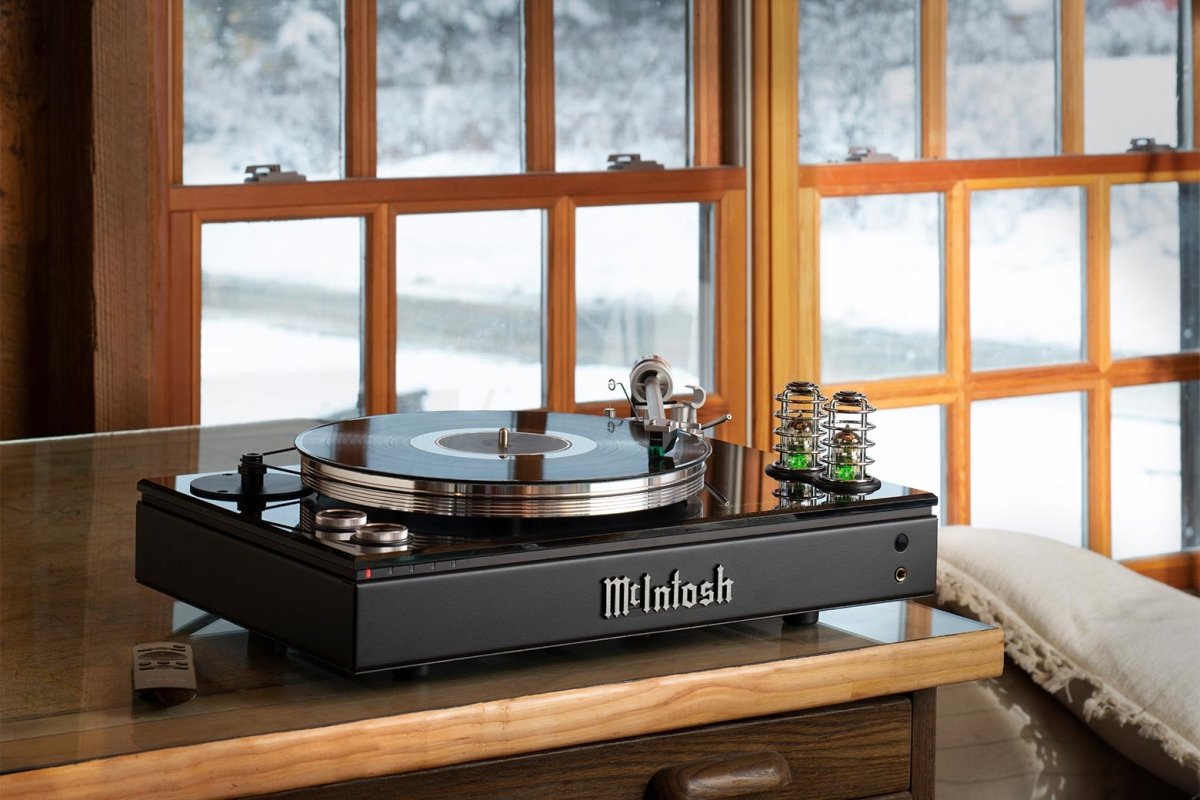

Overall, the McIntosh MTI100 Integrated Turntable is a perfect purchase for anyone wanting a high-quality, all-inclusive music system that looks great and sounds even better. With its unparalleled flexibility and versatility, it can become the centerpiece of a modern home audio system, delivering high-end sound from all sources you can imagine.
CARTRIDGE SPECIFICATIONS | |
---|---|
Cartridge Type | Moving Magnet |
Output Level | 4mV at 1kHz |
Load Impedance | 47k Ohms |
Frequency Response | 12Hz to 30kHz |
Channel Separation | 30dB at 1kHz |
Compliance | 12 x 10-6 cm/dyne |
Recommended Tracking Force | 2.0 g |
Channel Difference | Less than 1dB at 1kHz |
Total Mass | 6.5 g |
Stylus | Elliptical |
Cantilever Material | Aluminum |
TONEARM SPECIFICATIONS | |
---|---|
Bearing | Cardan bearing arrangement with ball bearings used for lateral and Sapphire/Tungsten for vertical bearing |
Arm Tube | Machined aluminum |
Counterweight | Concentric |
Adjustments | None |
TURNTABLE SPECIFICATIONS | |
---|---|
Playback Speeds | 33-1/3 and 45 rpm |
Motor Type | Permanent magnet AC synchronous |
Speed Control | Manual speed change via a 2 speed pulley |
Platter | Aluminum |
Platter Bearing | Inverted hardened steel shaft and axial ball arrangement with bronze bushing |
Signal To Noise Ratio | 35dB - 40dB |
Wow & Flutter | 0.1% |

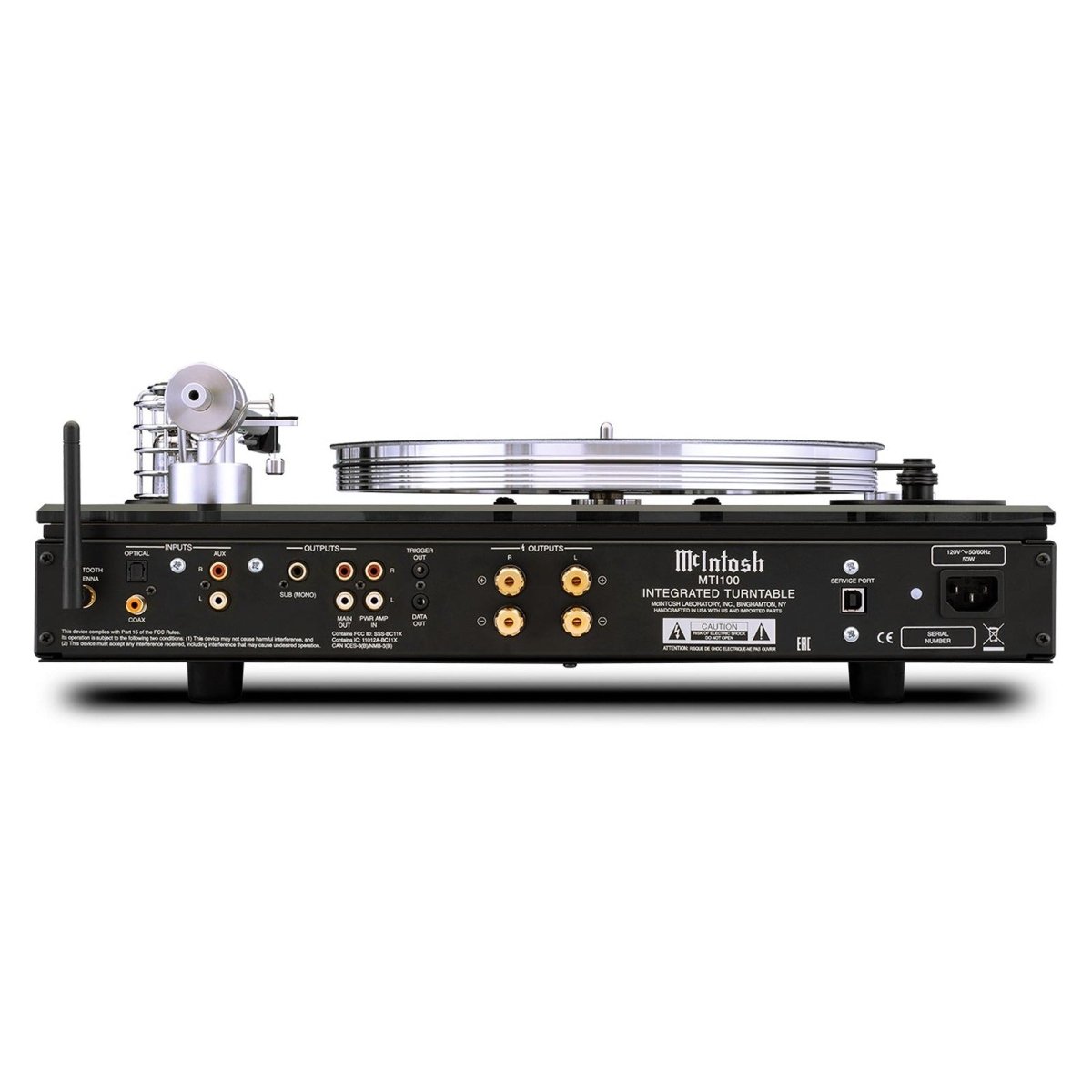

CONNECTIVITY | |
---|---|
Stereo Outputs Unbalanced | 1 (bridged to AMP IN) |
Stereo Inputs Unbalanced | 1 |
Digital Coaxial Input | 1 |
Digital Optical Input | 1 |
Subwoofer Output | 1 |
Wireless Input | High Definition Bluetooth 4.2 |
CONTROL | |
---|---|
Power Control Input | 0 |
Power Control Output | 1 |
Platter Light | N/A |
Speed Control Fine Adjustment | No |
ELECTRONIC SPECIFICATIONS | |
---|---|
Power Output per Channel | 50 Watts into 8 Ohms; 80 Watts into 4 Ohms |
Number of Channels | 2 |
Speaker Impedance | 4 or 8 Ohms |
Rated Power Band | 20Hz to 20kHz |
Total Harmonic Distortion | Amplifier: 0.2% maximum harmonic distortion at any level from 250 milliwatts to one-half of rated power output, 20Hz to 20kHz; 0.5% maximum harmonic distortion at any level from one-half to full rated power output, 20Hz to 20kHz Preamplifier: 0.2% from 20Hz to 20kHz |
Dynamic Headroom | 1.0dB (8 Ohms); 1.3dB (4 Ohms) |
Frequency Response +0,-0.7dB | 20Hz to 20kHz |
Signal To Noise Ratio (Moving Magnet) | 75dB |
Signal To Noise Ratio (High Level) | 90dB |
Damping Factor | 8 Ohms: >200; 4 Ohms: >100 |
Maximum Output (Balanced / Unbalanced) | 9V Unbalanced |
GENERAL SPECIFICATIONS | |
---|---|
Dust Cover Included | No |
WEIGHTS & DIMENSIONS | |
---|---|
Unit Dimensions (W x H x D) | 19-1/4” (48.9cm) x 6-3/4” (17.15cm) x 14” (35.6cm) |
Unit Weight | 33.5 lbs (15.2 kg) |
