Ortofon 2M Bronze Moving Magnet Cartridge - Ortofon-Audio-Exchange

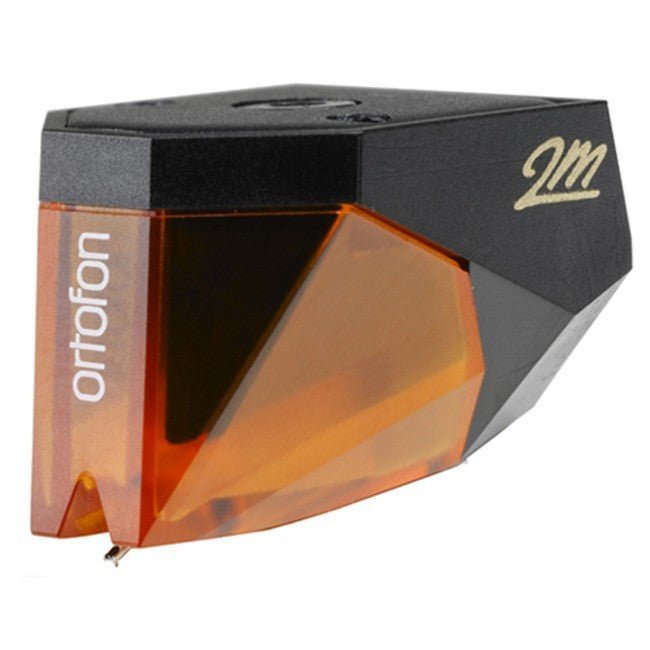

Ortofon 2M Bronze Moving Magnet Cartridge

Experience your vinyl collection as if for the first time with the Ortofon 2M Bronze.
$429.00
$499.00
$429.00

Free Express 2 Day Shipping

30-Day Satisfaction Guarantee

Ortofon 2M Bronze: Rediscover Musical Precision

Experience your vinyl collection as if for the first time with the Ortofon 2M Bronze. This cartridge is not merely a tool for playing records; it's a gateway to a new dimension of precision and musicality. Embrace high fidelity in its truest form and fall in love with your favorite songs all over again.

The 2M Bronze is equipped with a Nude Fine Line stylus, specifically designed for the most demanding applications. Its slender profile ensures the accurate tracking of even the highest frequency grooves, delivering an audio experience that's both rich and detailed.

Key Features

  • Nude Fine Line diamond stylus for unparalleled detail
  • Special engine with split pole pins and silver-plated copper wire for precise sound reproduction
  • Universal fit for easy mounting on most turntables
  • Designed and crafted in Denmark, embodying Ortofon's commitment to quality
  • A perfect blend of speed, resolution, and musical balance

Technical Specifications

Specification Details
Channel Balance at 1 kHz 1 dB
Output Voltage at 1 kHz, 5cm/sec 5 mV
Channel Separation at 1 kHz 26 dB
Channel Separation at 15 kHz 15 dB
Frequency Response 20 Hz - 20 kHz, 2 / - 0 dB
Tracking Ability at 315Hz at Recommended Tracking Force 80 µm
Compliance, Dynamic, Lateral 22 µm/mN
Stylus Type Nude Fine Line
Stylus Tip Radius r/R 8/40 µm
Tracking Force Range 1.4-1.7 g (14-17 mN)
Recommended Tracking Force 1.5 g (15 mN)
Tracking Angle 20°
Internal Impedance, DC Resistance 1.2 kOhm
Cartridge Color Black/Bronze
Cartridge Weight 7.2 g
Premounted Cartridge Weight 16.7 g
Recommended Load Resistance 47 kOhm
Internal Inductance 630 mH
Recommended Load Capacitance 150-300 pF

The Ortofon 2M Bronze represents the sweet spot in the 2M series, offering a perfect balance between the analytical precision of higher-end models and the musical warmth found in its siblings. It stands as a testament to what high-fidelity sound should be, turning records into immersive musical journeys.

Ortofon Black vs Bronze

When comparing the Ortofon Black and the Ortofon 2M Bronze, there are several notable differences that can influence your listening experience. The Ortofon Black features a Shibata diamond stylus, which is renowned for its ability to track even the most intricate details of a vinyl record. In contrast, the 2M Bronze uses a Nude Fine Line stylus that excels in tracking high-frequency grooves with precision. While both cartridges offer exceptional sound quality, the Black is often preferred by audiophiles seeking the utmost detail and resolution, whereas the Bronze provides a balanced and warm sound that appeals to a broad range of listeners.

Ortofon 2M Blue vs Bronze

The Ortofon 2M Blue and 2M Bronze cater to different audiophile needs. The 2M Blue features an elliptical diamond stylus, which offers a significant upgrade in sound quality from the entry-level 2M Red, delivering clear and dynamic sound. However, the 2M Bronze takes it a step further with its Nude Fine Line stylus, providing more refined detail and resolution. This makes the 2M Bronze an ideal choice for those who are looking to get the most out of their vinyl collection, offering a richer and more immersive listening experience compared to the 2M Blue.

Check out our full comparison review here!

Why Choose the Ortofon 2M Bronze?

Choosing the Ortofon 2M Bronze means opting for a blend of technical excellence and musicality. This cartridge is perfect for audiophiles who appreciate detailed and dynamic sound. It’s also a versatile choice that fits a wide range of turntables, making it a valuable addition to any setup.

How to Install the Ortofon 2M Bronze

Cartridge Installation

Preparing the Cartridge

Before installation, ensure the stylus cover is securely in place. Handle the cartridge carefully as it is very fragile, and damage can often be costly.

Mounting the Cartridge

Attach the cartridge to the tonearm using the supplied hardware. Do not overtighten; ensure the cartridge is snug but can be adjusted for alignment.

Connecting Lead-Out Wires

Attach the color-coded lead-out wires (red, blue, green, and white) to their corresponding pins on the cartridge. Use pliers gently to secure the connectors if they are loose.

Setting Tracking Weight and Bias

Initially, set the tracking weight for balance. Add an extra 1.5-2.0g to ensure the cartridge sits correctly in the record groove. Set arm bias to zero.

Aligning the Cartridge

Use a tracking alignment gauge and adjust the cartridge at various points along the tonearm path until it aligns correctly, ensuring minimized distortion and record wear.

Final Adjustments

Once aligned, tighten the mounting bolts without overdoing it. Adjust the tracking weight within the manufacturer’s recommended range using scales to fine-tune sound quality.

Tonearm Height Adjustment

If possible, adjust the tonearm height to be parallel with the record surface during playback, adjusting according to the specific cartridge design for optimal sound quality.

More Turntable Offerings from Audio Exchange

Explore our diverse selection of turntable accessories and cartridges to enhance your vinyl experience:

Each of these products is designed to meet the needs of both entry-level users and audiophile vinyl enthusiasts, ensuring a superior listening experience with minimal distortion.

Frequently Asked Questions

  • Q: What is the difference between the Ortofon 2M Bronze and other 2M series cartridges?
    A: The 2M Bronze features a Nude Fine Line stylus for enhanced detail and accuracy, positioning it between the 2M Blue's elliptical stylus and the 2M Black's Shibata stylus in terms of performance.
  • Q: How often should I replace the stylus on the Ortofon 2M Bronze?
    A: It’s recommended to replace the stylus after approximately 1,000 hours of playback to maintain optimal performance. It should be noted, that if properly cared for, the lifespan of the stylus may be longer.
  • Q: Can I upgrade from a 2M Red or 2M Blue to a 2M Bronze stylus?
    A: Yes, the 2M series allows for stylus upgrades, making it easy to enhance your setup over time.

Expert Advice

Learn more about turntables and phono cartridges and enhance your vinyl listening experience

For more expert advice and product recommendations, visit our Audio Exchange Blog.

Shipping:

Enjoy free shipping on orders over $49 within the continental US. For orders under $99, a $4.95 flat rate applies. Orders are processed promptly, with most orders placed by 2pm EST shipped the same day. We ship only within the continental US and cannot change shipping addresses post-purchase.

30-Day Hassle-Free Returns:

At Audio Exchange, your satisfaction is our priority. If you're not completely satisfied with your purchase, you can return most items within 30 days for a full refund. Returns must be in ‘like new’ condition. Initiate your return on our website and send items back to: 6007 W Broad St, Richmond, VA 23220.

Exceptions: Open box headphones, cartridges, and stylus’ are subject to a 15% restocking fee. Opened in-ear headphones and turntables cartridges or stylus’ with a broken needle are non-returnable.

Questions? Email us at audioexchangervb@gmail.com.
