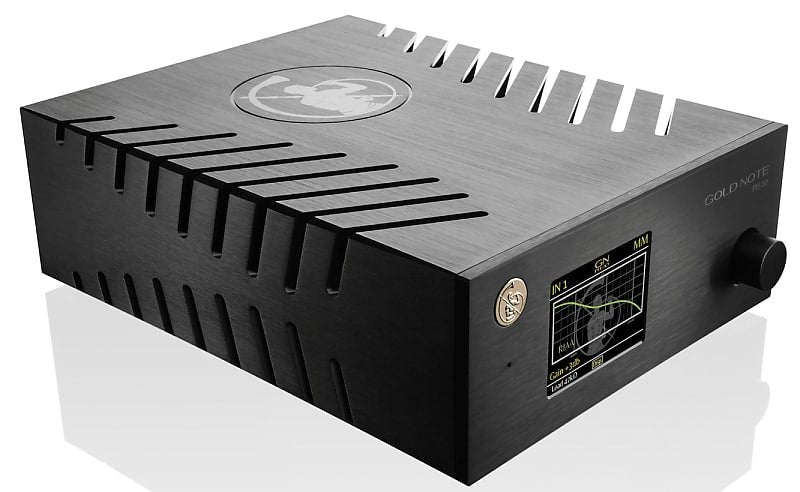

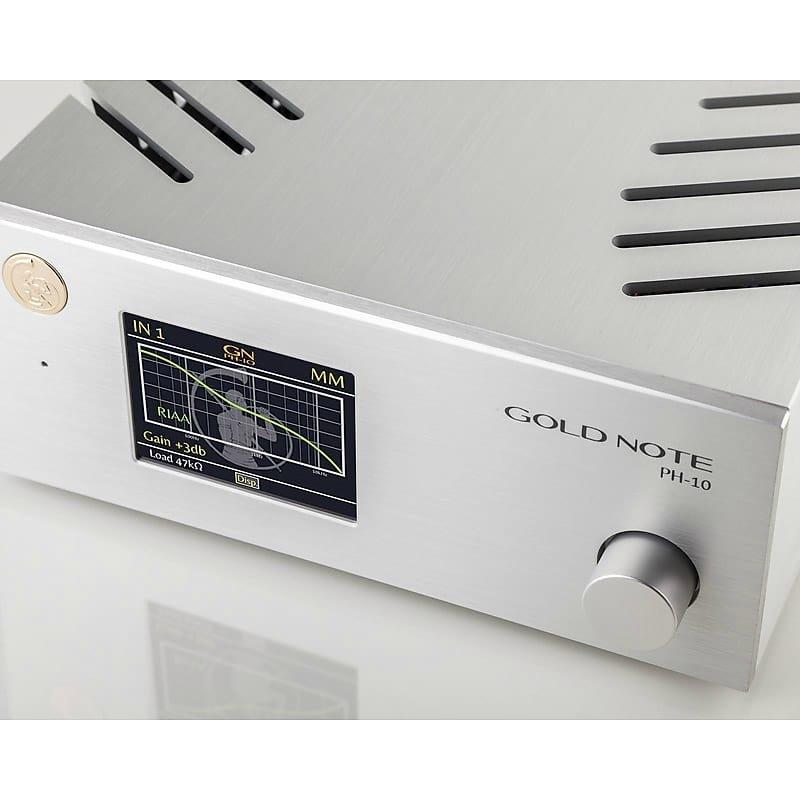

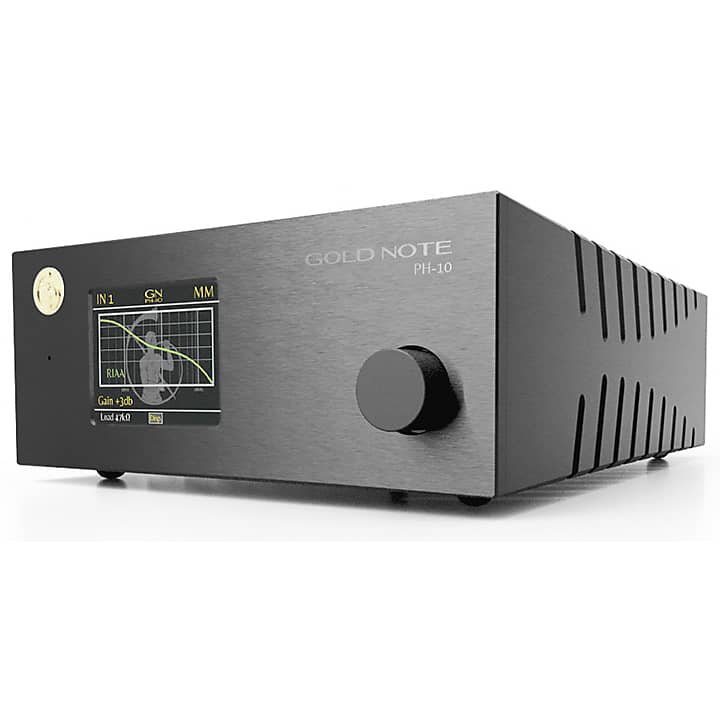

Discover the Gold Note PH-10, the first phono stage with 2 inputs and 6 EQ curves, designed to revolutionize your vinyl listening experience. This ultra-versatile phono preamplifier is engineered with high-quality components, offering a fully analog design for pure, unadulterated sound. Handcrafted in Italy, the PH-10 is perfect for audiophiles who demand the best from their turntable setup.
Key Features:
ANALOG INPUTS | MM/MC two independent stereo RCA |
ANALOG OUTPUTS | Stereo unbalanced RCA and balanced XLR |
SUBSONIC FILTER | 10Hz/36dB octave |
TOTAL HARMONIC DISTORTION THD | <0.05% |
SIGNAL TO NOISE RATIO | -89dB |
DYNAMIC RESPONSE | 105dB |
FREQUENCY RESPONSE | 20Hz – 20KHz [Enhanced 20Hz – 50KHz] @ +/- 0.3dB |
LINE OUTPUTS LEVEL (FIXED) | Stereo RCA @ 2V and balanced XLR @4V |
INPUT SENSITVITY | 0.1mV MC up to 7.0mV MM |
INPUT IMPEDANCE | 9 options [10Ω, 22Ω, 47Ω, 100Ω, 220Ω, 470Ω, 1000Ω, 22KΩ, 47KΩ] |
GAIN | 45/65dB (+6dB/-3dB) |
POWER SUPPLY | 100-120V / 220-240V, 50/60Hz Power consumption: 10W Super Linear supply Standby consumption: < 0,5W |
DIMENSIONS | 200mm W 80mm H 260mm D |
WEIGHT | 3lbs net 8lbs boxed |
FINISHES | Brushed Aluminium Black, Gold or Silver |
